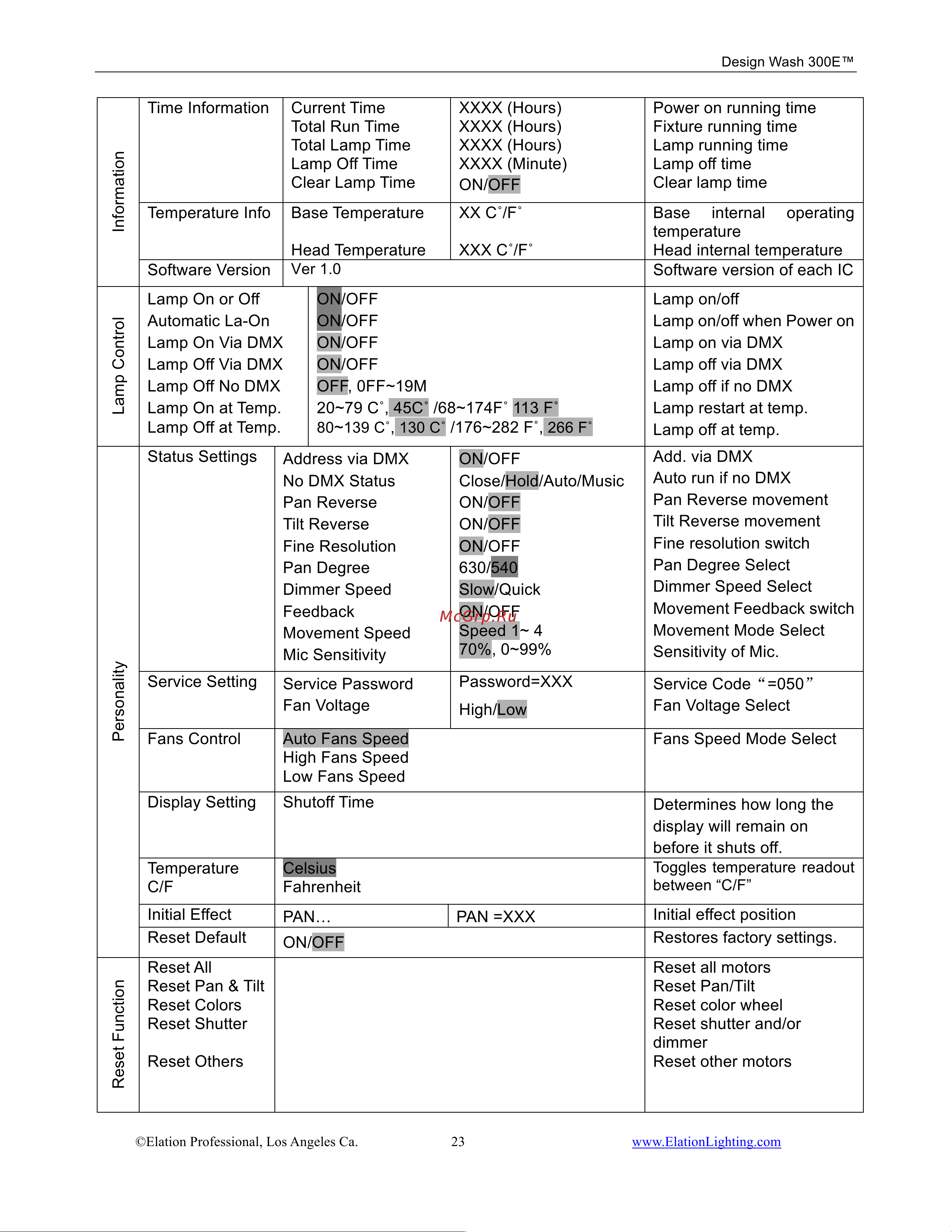

Design Wash 300E™
©Elation Professional, Los Angeles Ca. 23 www.ElationLighting.com
Time Information
Current Time
Total Run Time
Total Lamp Time
Lamp Off Time
Clear Lamp Time
XXXX (Hours)
XXXX (Hours)
XXXX (Hours)
XXXX (Minute)
ON/OFF
Power on running time
Fixture running time
Lamp running time
Lamp off time
Clear lamp time
Temperature Info
Base Temperature
Head Temperature
XX C˚/F˚
XXX C˚/F˚
Base internal operating
temperature
Head internal temperature
Information
Software Version
Ver 1.0
Software version of each IC
Lamp Control
Lamp On or Off
Automatic La-On
Lamp On Via DMX
Lamp Off Via DMX
Lamp Off No DMX
Lamp On at Temp.
Lamp Off at Temp.
ON/OFF
ON/OFF
ON/OFF
ON/OFF
OFF, 0FF~19M
20~79 C˚, 45C˚ /68~174F˚ 113 F˚
80~139 C˚, 130 C˚ /176~282 F˚, 266 F˚
Lamp on/off
Lamp on/off when Power on
Lamp on via DMX
Lamp off via DMX
Lamp off if no DMX
Lamp restart at temp.
Lamp off at temp.
Status Settings
Address via DMX
No DMX Status
Pan Reverse
Tilt Reverse
Fine Resolution
Pan Degree
Dimmer Speed
Feedback
Movement Speed
Mic Sensitivity
ON/OFF
Close/Hold/Auto/Music
ON/OFF
ON/OFF
ON/OFF
630/540
Slow/Quick
ON/OFF
Speed 1~ 4
70%, 0~99%
Add. via DMX
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Fine resolution switch
Pan Degree Select
Dimmer Speed Select
Movement Feedback switch
Movement Mode Select
Sensitivity of Mic.
Service Setting
Service Password
Fan Voltage
Password=XXX
High/Low
Service Code“=050”
Fan Voltage Select
Fans Control
Auto Fans Speed
High Fans Speed
Low Fans Speed
Fans Speed Mode Select
Display Setting
Shutoff Time
Determines how long the
display will remain on
before it shuts off.
Temperature
C/F
Celsius
Fahrenheit
Toggles temperature readout
between “C/F”
Initial Effect
PAN…
PAN =XXX
Initial effect position
Personality
Reset Default
ON/OFF
Restores factory settings.
Reset Function
Reset All
Reset Pan & Tilt
Reset Colors
Reset Shutter
Reset Others
Reset all motors
Reset Pan/Tilt
Reset color wheel
Reset shutter and/or
dimmer
Reset other motors
