Design Wash 300E™
©Elation Professional, Los Angeles Ca. 17 www.ElationLighting.com

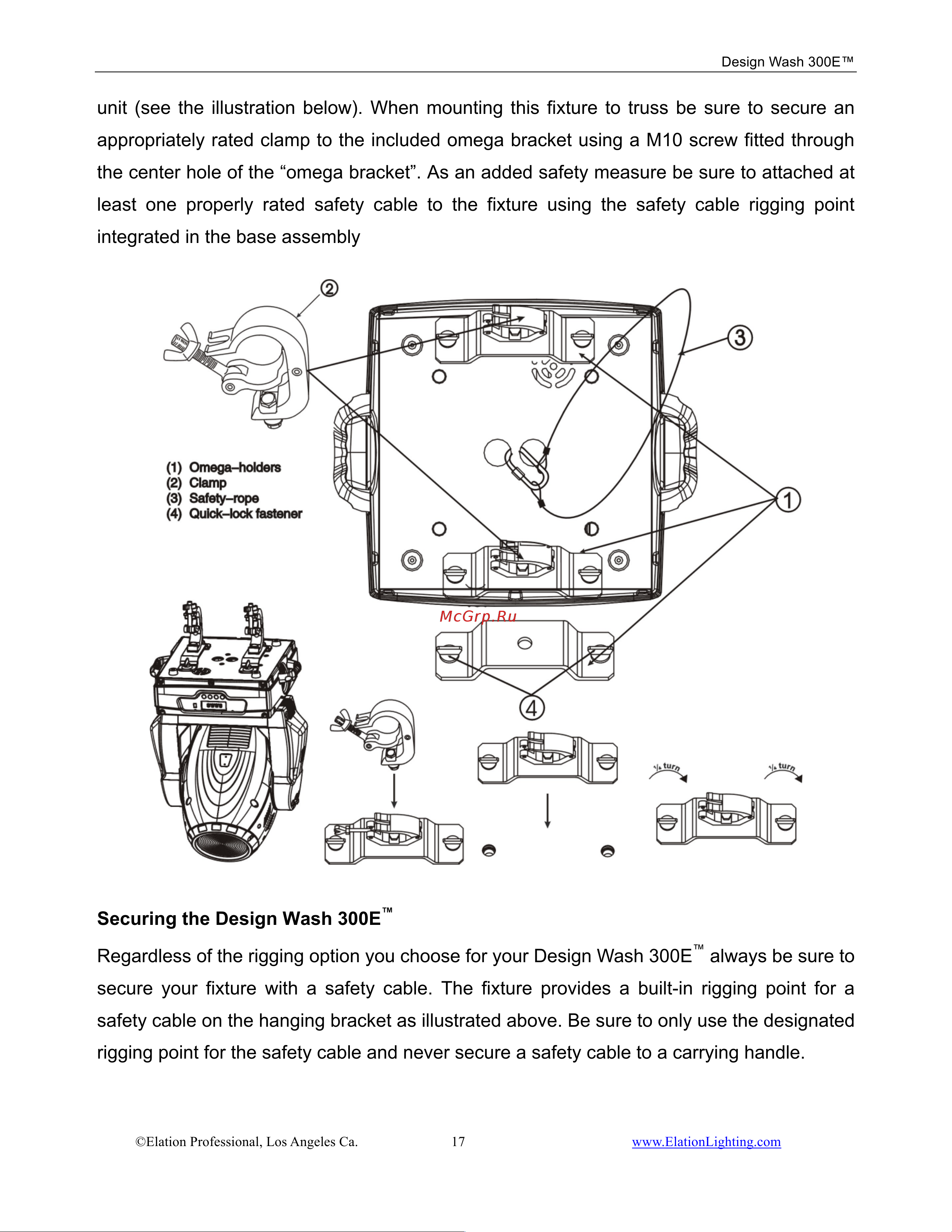

unit (see the illustration below). When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the included omega bracket using a M10 screw fitted through
the center hole of the “omega bracket”. As an added safety measure be sure to attached at
least one properly rated safety cable to the fixture using the safety cable rigging point
integrated in the base assembly
Securing the Design Wash 300E
™
Regardless of the rigging option you choose for your Design Wash 300E
™
always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.
