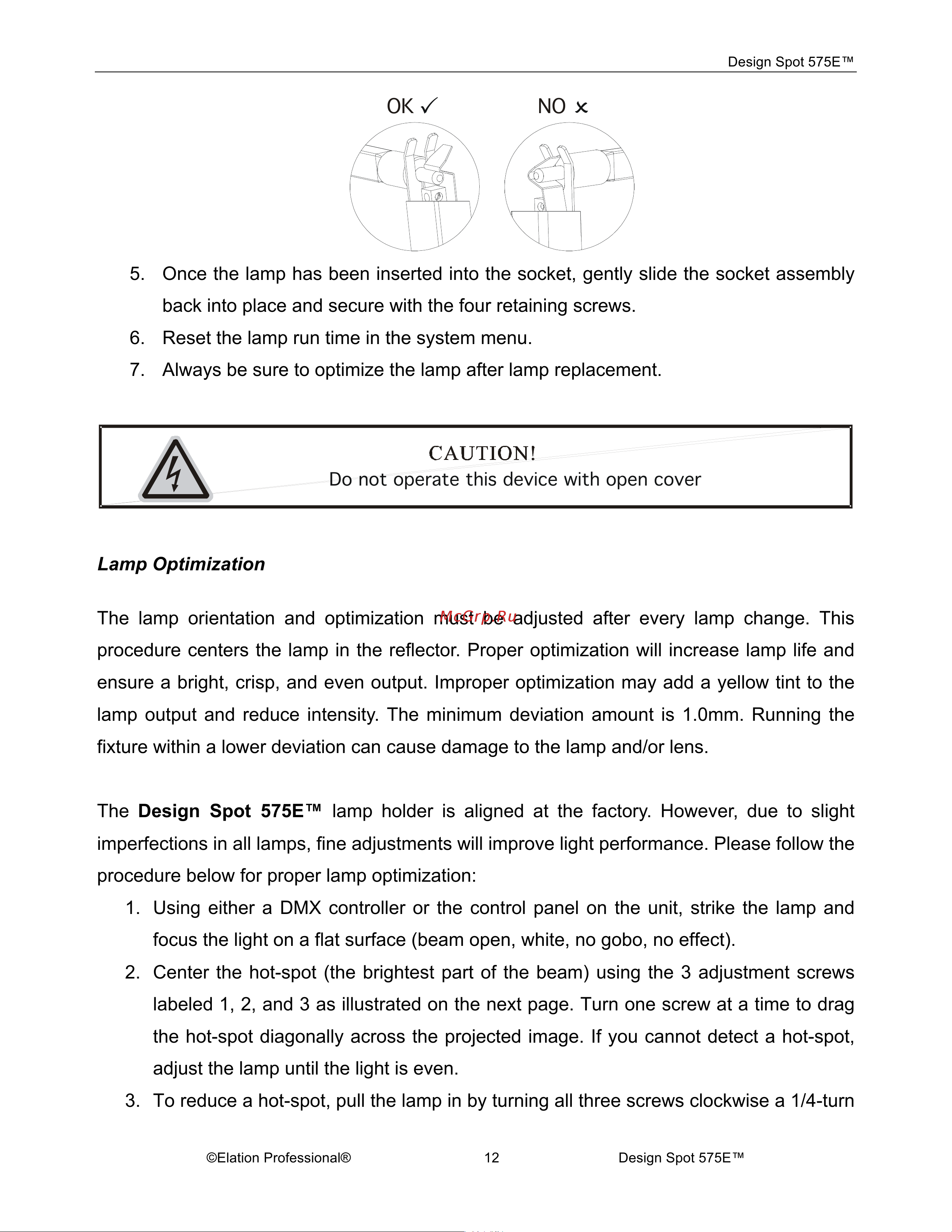

Design Spot 575E™

©Elation Professional® 12 Design Spot 575E™

OK NO

 

5. Once the lamp has been inserted into the socket, gently slide the socket assembly

back into place and secure with the four retaining screws.

6. Reset the lamp run time in the system menu.

7. Always be sure to optimize the lamp after lamp replacement.

Do not operate this device with open cover

Lamp Optimization

The lamp orientation and optimization must be adjusted after every lamp change. This

procedure centers the lamp in the reflector. Proper optimization will increase lamp life and

ensure a bright, crisp, and even output. Improper optimization may add a yellow tint to the

lamp output and reduce intensity. The minimum deviation amount is 1.0mm. Running the

fixture within a lower deviation can cause damage to the lamp and/or lens.

The Design Spot 575E™ lamp holder is aligned at the factory. However, due to slight

imperfections in all lamps, fine adjustments will improve light performance. Please follow the

procedure below for proper lamp optimization:

1. Using either a DMX controller or the control panel on the unit, strike the lamp and

focus the light on a flat surface (beam open, white, no gobo, no effect).

2. Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws

labeled 1, 2, and 3 as illustrated on the next page. Turn one screw at a time to drag

the hot-spot diagonally across the projected image. If you cannot detect a hot-spot,

adjust the lamp until the light is even.

3. To reduce a hot-spot, pull the lamp in by turning all three screws clockwise a 1/4-turn
