Design Spot 575E™
©Elation Professional® 21 Design Spot 575E™

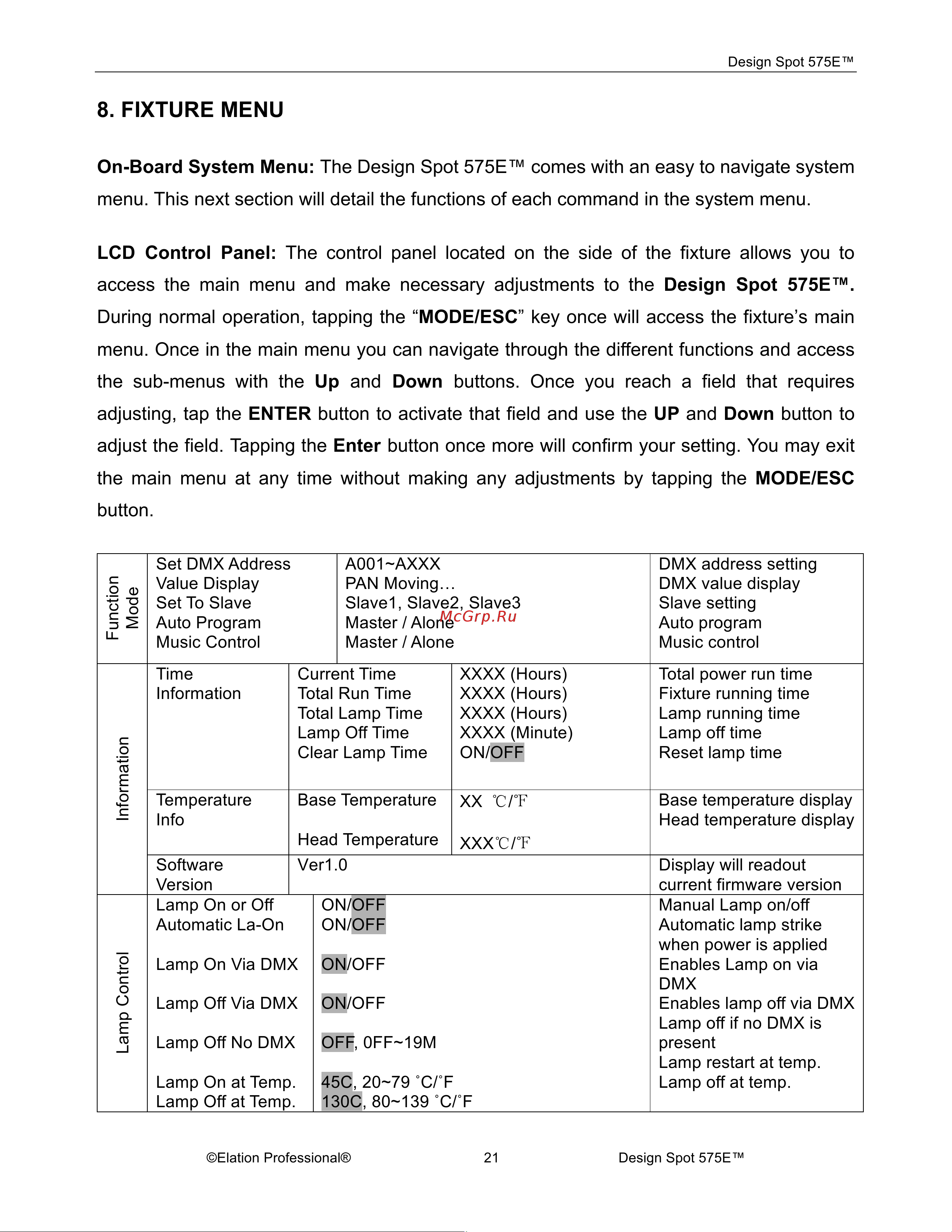

8. FIXTURE MENU
On-Board System Menu: The Design Spot 575E™ comes with an easy to navigate system
menu. This next section will detail the functions of each command in the system menu.
LCD Control Panel: The control panel located on the side of the fixture allows you to
access the main menu and make necessary adjustments to the Design Spot 575E™.
During normal operation, tapping the “MODE/ESC” key once will access the fixture’s main
menu. Once in the main menu you can navigate through the different functions and access
the sub-menus with the Up and Down buttons. Once you reach a field that requires
adjusting, tap the ENTER button to activate that field and use the UP and Down button to
adjust the field. Tapping the Enter button once more will confirm your setting. You may exit
the main menu at any time without making any adjustments by tapping the MODE/ESC
button.
Function
Mode
Set DMX Address
Value Display
Set To Slave
Auto Program
Music Control
A001~AXXX
PAN Moving…
Slave1, Slave2, Slave3
Master / Alone
Master / Alone
DMX address setting
DMX value display
Slave setting
Auto program
Music control
Time
Information
Current Time
Total Run Time
Total Lamp Time
Lamp Off Time
Clear Lamp Time
XXXX (Hours)
XXXX (Hours)
XXXX (Hours)
XXXX (Minute)
ON/OFF
Total power run time
Fixture running time
Lamp running time
Lamp off time
Reset lamp time
Temperature
Info
Base Temperature
Head Temperature
XX ℃/℉
XXX℃/℉
Base temperature display
Head temperature display
Information
Software
Version
Ver1.0
Display will readout
current firmware version
Lamp Control
Lamp On or Off
Automatic La-On
Lamp On Via DMX
Lamp Off Via DMX
Lamp Off No DMX
Lamp On at Temp.
Lamp Off at Temp.
ON/OFF
ON/OFF
ON/OFF
ON/OFF
OFF, 0FF~19M
45C, 20~79 ˚C/˚F
130C, 80~139 ˚C/˚F
Manual Lamp on/off
Automatic lamp strike
when power is applied
Enables Lamp on via
DMX
Enables lamp off via DMX
Lamp off if no DMX is
present
Lamp restart at temp.
Lamp off at temp.
