12. MAINS INPUT
Connects the amplier to the mains
electricity supply.
Note: The MAINS INPUT socket has an
integrated fuse compartment. Ensure that
the value of a replacement fuse matches the
labelling on the amplier rear panel. You
MUST ALWAYS switch the amplier OFF
and disconnect it from the mains electricity
supply before attempting to access the fuse
compartment. If in doubt, contact your
Marshall dealer.
13. FX LOOP RETURN
Connect the output of an external FX
pedal or processor.
14. FX LOOP SEND
Connect the input of an external FX
pedal or processor.
15. F/S
Connect the supplied channel footswitch
here (PEDL-90011).
16. AUDIO IN
Connect an external device here to
practice with or jam along to music.
17. EMULATED OUT
Frequency compensated line level
output for headphones or for connection
to a mixer. The DSL is equipped with
a high quality emulated output using
Softube-designed studio cabinet
REAR PANEL FUNCTIONS

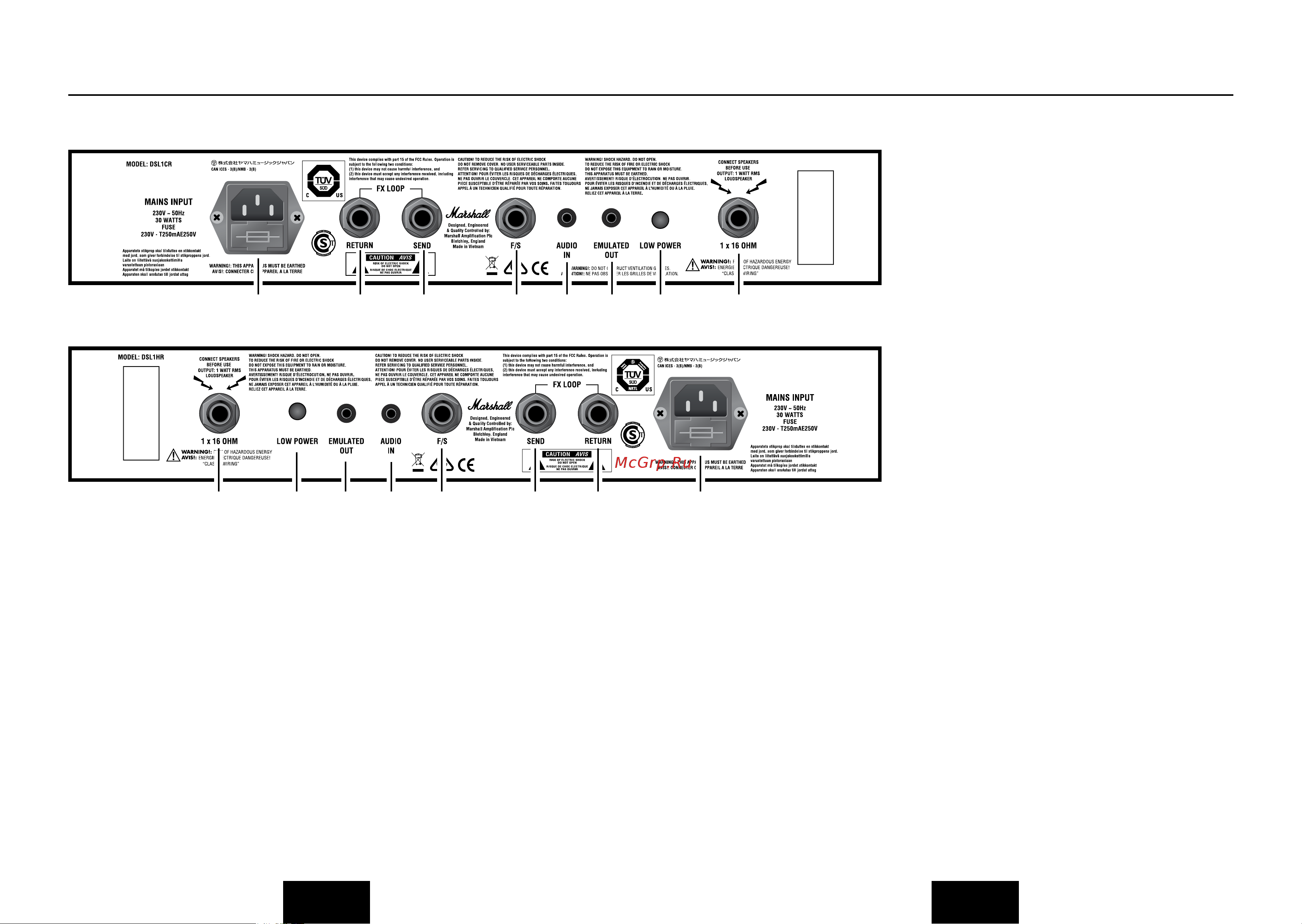

DSL1CR REAR PANEL
emulation. This ensures that your
headphone and output signal from this
socket provide the best possible tone for
practice or recording.
WARNING: When using the DSL1HR head
for ‘silent’ practice or DI recording ALWAYS
disconnect the speaker cabinet from the
amplier’s rear panel before switching on.
NEVER unplug the speaker cable from the
speaker cabinet while it is still connected
to the amplier rear panel. This may stress
the amplier’s power-stage and in extreme
cases may lead to valve and/or transformer
failure.
18. LOW POWER
Use LOW POWER to reduce power level
from 1 Watt down to 0.1 Watt.
19. LOUDSPEAKER
Connect a single speaker cabinet here
for the DSL1HR head, or a optional 1 x
16OHM extension speaker cabinet for
the DSLCR combo.
WARNING: Only ever connect a single
1 x 16 Ohm speaker cabinet. Any other
speaker conguration may stress the power
amplier section and in extreme cases may
lead to valve and/or output transformer
failure.
DSL1HR REAR PANEL
19 18 17 16 15 14 13 12
12 13 14 15 16 17 18 19
ENGLISH ENGLISH
