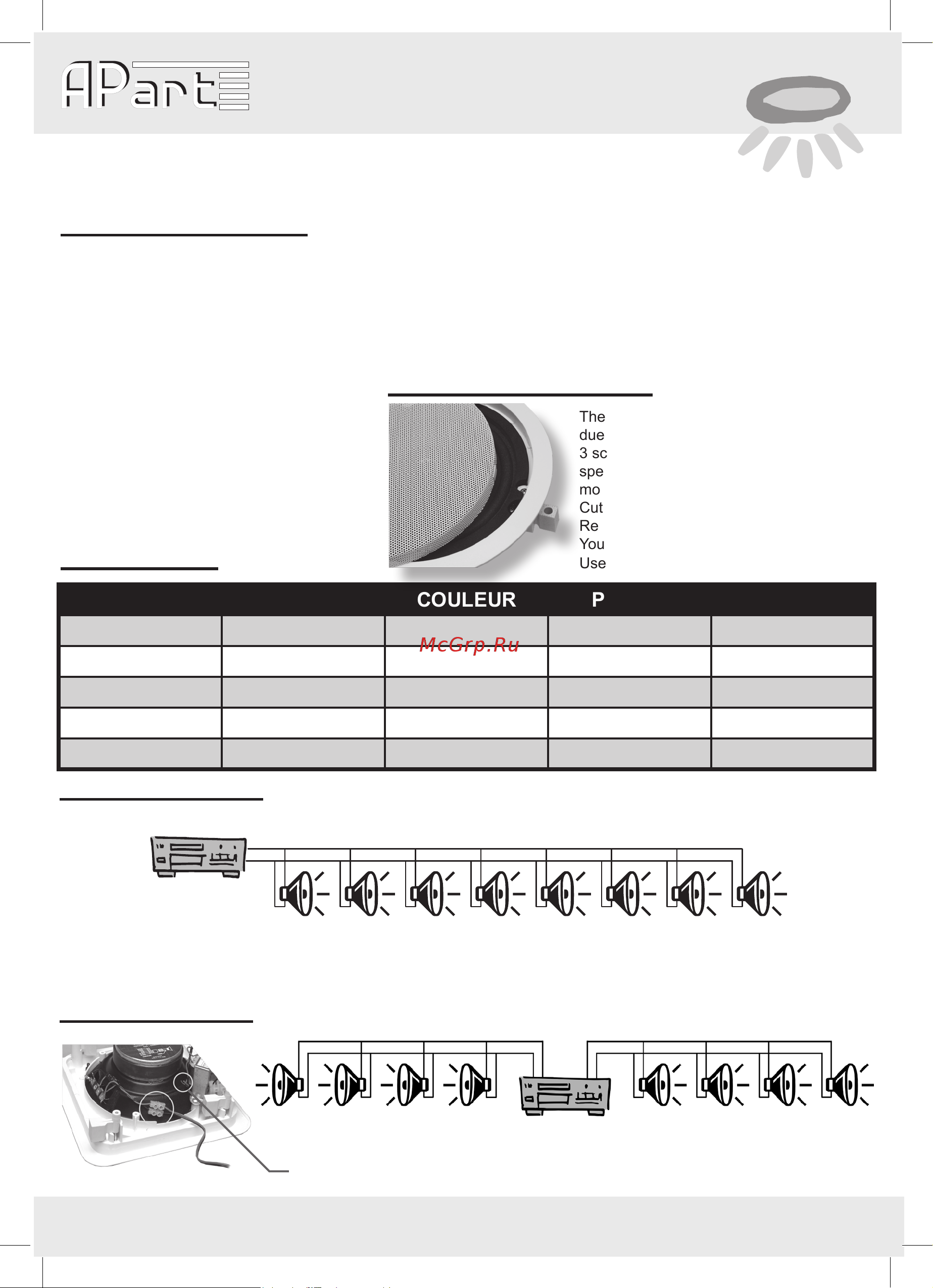

CEILING LOUDSPEAKER
COLOUR KLEUR COULEUR POWER IMPEDANCE
Black Zwart Noir Common
RED ROOD ROUGE 2.5 Watt 4KΩ
GREEN GROEN VERT 5 Watt 2KΩ
YELLOW GEEL JAUNE 10 Watt 1KΩ
BROWN BRUIN BRUN 20 Watt 500R
CMX20T
WWW.APART-AUDIO.COM INFO@APART-AUDIO.COM
• Type : 2 - Way HiFi Pro
• Woofer : 8” Enforced Polypropylen
• Tweeter : 1” Silk Dome
• Rated Power RMS : 20 W / 100Volt
• Music Power RMS : 32 W / 100Volt
• Rated Power RMS : 60 W / 16Ω
• Music Power RMS : 100 W / 16Ω
• Sound Pres. Level (SPL) 1W/1M : 93dB
• Frequency range : 50 Hz - 20 kHz
• Trafo Power Tappings : 20 - 10 - 5 - 2.5W
• Dispersion @ 1-4-8 KHz : 180°- 80° - 45°
• Dimensions outside Ø : 244MM
• Dimensions Cutout Ø : 220MM
• Depth : 90MM
• Weight : 1.75Kg
Technical Specifications
The APart CMX20T 2-way built-in loudspeaker can be
used as a 16 Ohm or 100 Volt loudspeaker. In 16 Ohm use,
you can connect up to 4 loudspeakers in parallel on each channel of a
standard 4 Ohm amplier. For 100 use, the CMX20T is equipped with a high-
quality 20 Watt 100 Volt transformer with several power tappings. Therefore
it can be used with high ceilings or places where more back ground noise
is present. The loudspeaker has a 8” enforced Polypropylen woofer what
results in a very low distortion. To complete the sound a 1” tweeter has
been integrated. It makes the CMX20T very suitable for the distribution of
microphone calls and back ground music. The housing is made of high
quality ABS. The woofer is made out of enforced polypropylen, what makes it
moisture-proof. The standard colour is white. From 12 pieces on, the
loudspeakers can be painted optionally in any other RAL colour
Power Tappings
20 20 10 5 5 5 2.5 2.5++ + + + + +70 Watt =
120Watt Amplier
Amplier power must be higher than total power of all speakers.
Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.
La puissance de l’amplicateur doit etre plus élevée que la puissance totale des haut parleurs.
100 Volt Technology
16 ohm Technology
Mounting the loudspeaker
16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω
4Ω 4Ω
Disconnect 100Volt transformer
16 ohm connection
The loudspeaker is easy to install,
due to its simple, quick mounting system
3 screws which are hidden behind the loud-
speaker grill, what gives the loudspeaker a
modern and striking design.
Cutout Ø : 220 MM
Remove the grill before mounting.
You can see four Philips head screws.
Use these screws to thigthen the dog-ears.
Picture shown is the CMS20T
