10 Milan Series

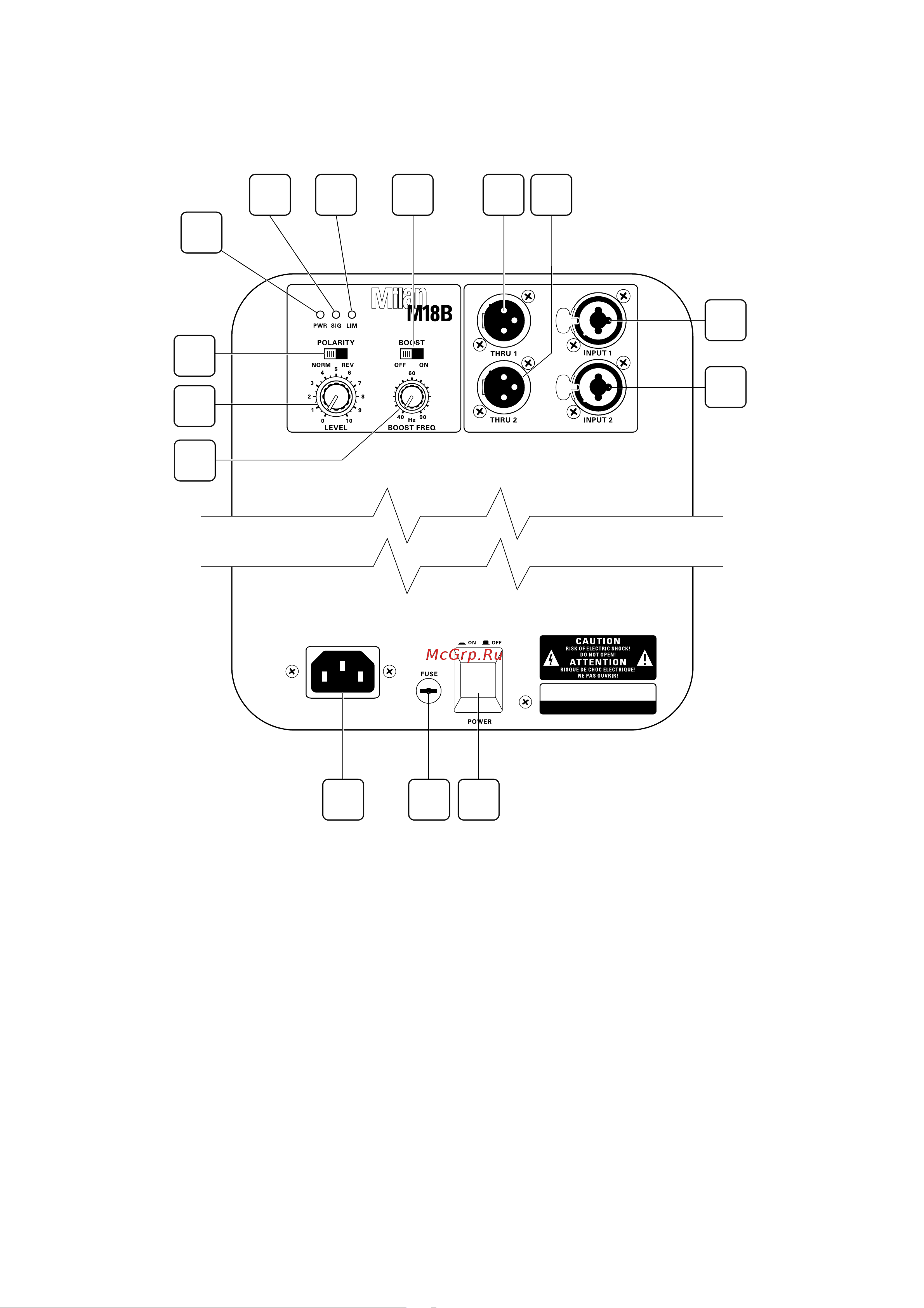

Connecting to the Milan Subwoofer
1 2 3
5
12
56
4
4
10
11
9
7
8
1. Mains Connector
Mains power is connected to the subwoofer via an IEC connector.
2. Fuseholder
Replace fuse only with the same type and rating.
3. Mains Switch
Toggle push switch turns mains power on to the loudspeaker. Make sure the level control is fully
off (MIN) before switching on.
4. Inputs
These combo female XLR/jack connectors accept both 3-pin XLR connectors and mono (2 pole)
or stereo (3 pole) ¼" jack plugs for connection to balanced or unbalanced mixing console outputs.
The inputs are electronically balanced to avoid hum loops and RF interference, and are wired
pin 2 hot, pin 3 cold.
