Snow Line 560 II, 620 II, 620E II
Symbols on the machine
Caution!
Special care required during use.
Read the operating instructions before start-up.
Keepawayfromsnowdischargearea.Danger
fromsnowdischarge.
Keep hands out of snow discharge chute.
Keephandsandfeetawayfromauger.
STOP
Switch off engine before working on the
machine.
Wear eye and hearing protection.
Keepawayfromrotatingpartstoavoidtherisk
of getting entangled.
Disconnect spark plug connector before per-
formingmaintenanceandrepairwork.
Keepothersawayfromdangerousareas.
A
Models
Typ < - > M
560 II 560mm 182cm³
620 II 620mm 212cm³
620E II sameas620II,

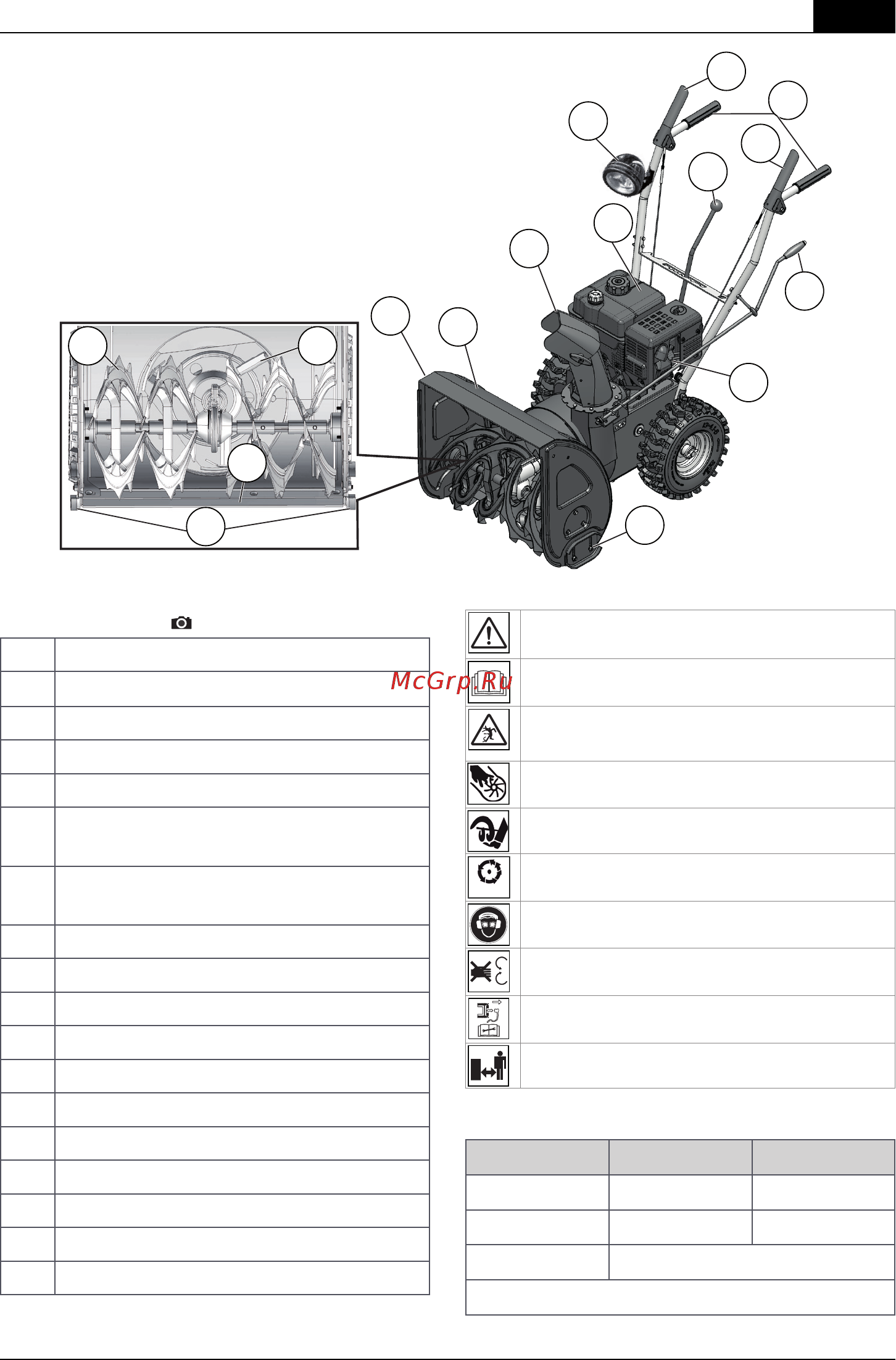

Product overview ( A)
1 Wheel drive clutch lever
2 Guide handle
3 Auger drive clutch lever
4 Snow discharge chute with protective guard
5 Engine
6 Drive speed selection lever, 5 forward and
2 reverse speeds
7 Hand crank for adjusting snow discharge
chute
8 Shield
9 Auger
10 Height-adjustable skid plates
12 Headlight*
13 Impeller
14 Snow cleaning tool (attached to shield)
15 Clearing plate
16 Spark plug connector
* Snow Line 620E II only
1
3
4
5
8
10
12
149
15
6
16
17
7
10
2
