5 XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual
• Mix:
All other mixing console functions fall under this vital category. Creating a
mix means primarily adjusting the volume levels of individual instruments
and voices to one another as well as giving them the appropriate weight
within the overall frequency spectrum. Likewise, you’ll have to sensibly
spread individual voices across the stereo image of a signal. At the end of
this process, adjusting the level of the entire mix to other equipment in the
signal path is required (e. g. recorder/crossover/amplier).
The control surface of BEHRINGER mixing consoles is optimized in such a way
that these functions become easy to fulll while the signal path remains
simple to follow.
1.2 The user’s manual
The user’s manual is designed to give you both an overview of the controls,
aswell as detailed information on how to use them. In order to help you
understand the links between the controls, we have arranged them in groups
according to their function. If you need to know more about specic issues,
please visit our website at http://behringer.com. Additional information and
explanations about various music industry/audio technology terminology can be
found on individual product pages as well as in the glossary.
◊ The block diagram supplied with the mixing console gives you an
overview of the connections between the inputs and outputs, as well
as the associated switches and controls.
1.3 Before you get started
1.3.1 Shipment
Your mixing console was carefully packed in the factory to guarantee safe
transport. Nevertheless, we recommend that you carefully examine the
packaging and its contents for any signs of physical damage, which may have
occurred during transit.
◊ If the unit is damaged, please do NOT return it to us, but notify your
dealer and the shipping company immediately, otherwise claims for
damage or replacement may not be granted.
1.3.2 Initial operation
Be sure that there is enough space around the unit for cooling purposes and to
avoid over-heating please do not place your mixing console on high-temperature
devices such as radiators or power amps. The console is connected to the
mains via the supplied cable. The console meets the required safety standards.
Blownfuses must only be replaced by fuses of the same type and rating.
◊ Please note that all units must be properly grounded. For your own
safety, you should never remove any ground connectors from electrical
devices or power cables, or render them in operative.
◊ Please ensure that only qualified people install and operate the
mixing console. During installation and operation, the user must have
sufficient electrical contact to earth, otherwise electrostatic discharges
might affect the operation of the unit.
1.3.3 Online registration
Please register your new BEHRINGER equipment right after your purchase
by visiting http://behringer.com and read the terms and conditions of our
warrantycarefully.
Should your BEHRINGER product malfunction, it is our intention to have it
repaired as quickly as possible. To arrange for warranty service, please contact
the BEHRINGER retailer from whom the equipment was purchased. Shouldyour
BEHRINGER dealer not be located in your vicinity, you may directly contact
one of our subsidiaries. Corresponding contact information is included in the
original equipment packaging (Global Contact Information/European Contact
Information). Should your country not be listed, please contact the distributor
nearest you. A list of distributors can be found in the support area of our website
(http://behringer.com).
Registering your purchase and equipment with us helps us process your repair
claims more quickly and eciently.
Thank you for your cooperation!
2. Control Elements and Connectors
This chapter describes the various control elements of your mixing console.
Allcontrols, switches and connectors will be discussed in detail.
2.1 Mono channels
2.1.1 Microphone and line inputs
X2222USB X2442USB

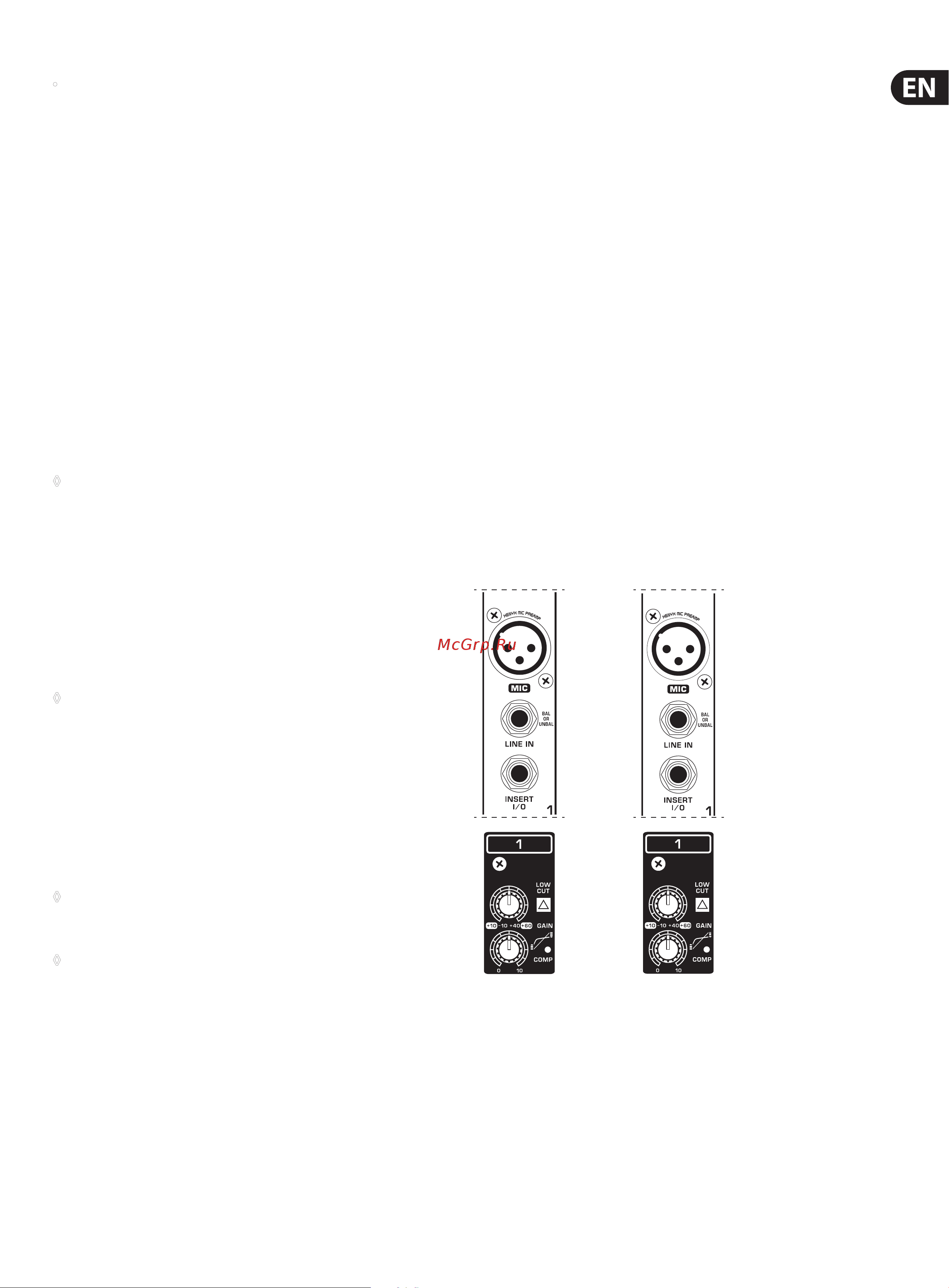

Fig. 2.1: Connectors and controls of mic/line inputs
