10 XENYX X1222USB User Manual
Recording:
For mastering, using a stereo compressor such as the COMPOSER PRO-XL
MDX2600 can be recommended. Use it to custom-tailor the dynamic
characteristics of your signal to the dynamic range of the recording equipment
you are using. The signal is in this case passed on from the compressor into
therecorder.
PHONES
The PHONES control adjusts the volume of the headphones connected to the
PHONS/CTRL connector. If you connect active monitors or an amplier, use this
connector to adjust the output signal level.
CAUTION!
◊ We would like to draw your attention to the fact that extreme volumes
may damage your hearing and/or your headphones or loudspeakers.
Turn the MAIN MIX faders and the PHONES control in the main section
fully down before you switch on the unit. Always be careful to set the
appropriate volume.

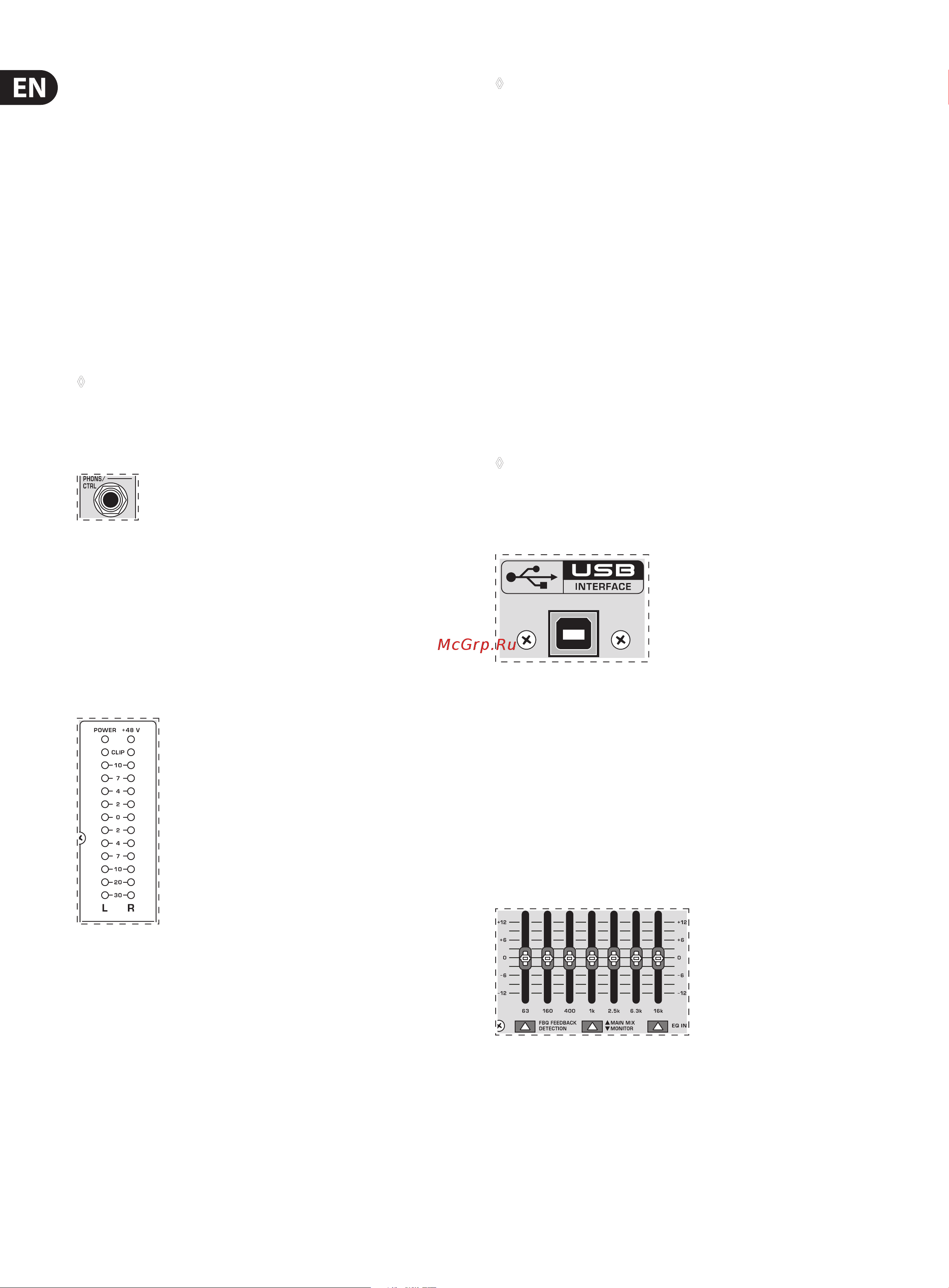

Fig. 2.13: PHONS/CTRL connector
PHONS/CTRL connector
You can connect headphones to this ¼" TRS connector. The connector can also
be used for feeding active monitor loudspeakers (or an amplier) in your control
room. For this purpose, the signal is taken directly before it is passed on to the
main mix faders.
2.3.6 Level meter and level setting
Fig. 2.14: Level meter
POWER
The blue POWER LED indicates that the device is switched on.
+48 V
The red “+48 V” LED lights up when the phantom power supply is switched
on. The phantom power supply is necessary for condenser microphones and is
activated using the corresponding switch on the rear of the device.
◊ Connect microphones before you switch on the phantom power supply.
Please do not connect microphones to the mixer (or the stagebox/
wallbox) while the phantom power supply is switched on. In addition,
the monitor/PA loudspeakers should be muted before you activate the
phantom power supply. After switching on, wait approx. one minute to
allow for system stabilization.
LEVEL METER/CLIP
The high-precision level meter accurately displays the appropriate signal level.
LEVEL SETTING:
When recording to a digital device, the recorder’s peak meter should not exceed
0 dB. This is because, unlike analog recordings, slightly excessive levels can create
unpleasant digital distortion.
When recording to an analog device, the VU meters of the recording machine
should reach approx. +3 dB with low-frequency signals (e.g. kick drum). Due to
their inertia VU meters tend to display too low a signal level at frequencies above
1 kHz. This is why, for example, a Hi-Hat should only be driven as far as -10dB.
Snaredrums should be driven to approx. 0 dB.
◊ The peak meters of your XENYX display the level virtually independent
of frequency. A recording level of 0 dB is recommended for all
signal types.
2.3.7 USB input/output
Fig. 2.15: USB input/output
The XENYX mixer line has built-in USB connectivity, allowing stereo signals to
be sent to and from the mixer and a computer. The audio sent from the mixer to
a computer is identical to the MAIN MIX. Audio being sent to the mixer from a
computer can be routed to the main mix with the 2-TR/USB RTN fader.
Connect the USB type B plug into the USB jack on the mixer, and the other end
into a free USB port on your computer. There are no required drivers, but we
recommend that PC users install the included ASIO driver. The driver can also be
behringer.com.
2.4 Graphic 7-band equalizer
Fig. 2.16: The graphic stereo equalizer
The graphic stereo equalizer allows you to tailor the sound to the room acoustics.
