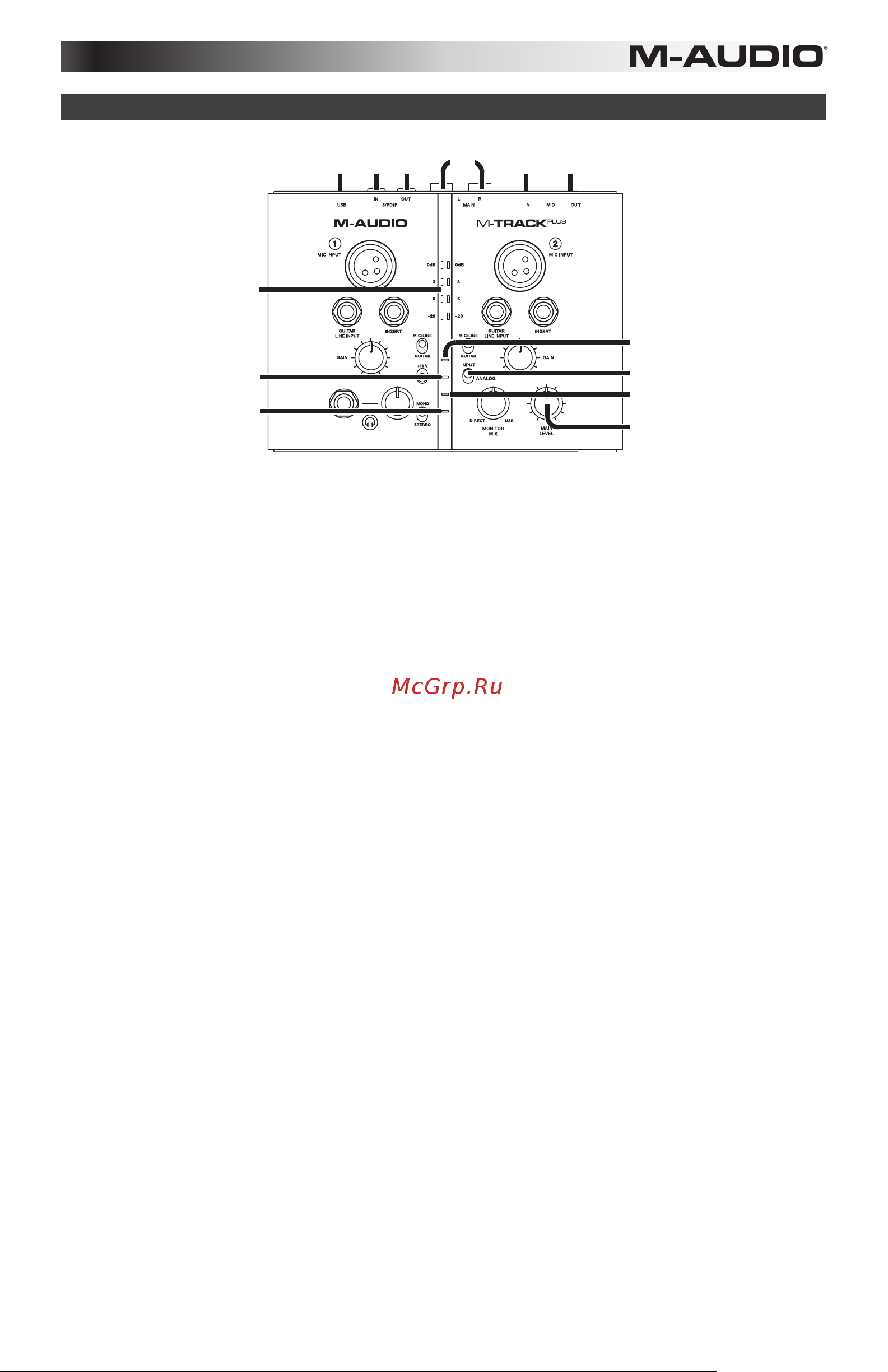

1. USB Port: Use the included cable to connect the M-Track Plus to a computer. M-Track

Plus requires a USB 1.1 (or higher) connection.

2. Main Out: Use standard 1/4" cables to connect this output to a pair of powered

speakers. The level of this output is controlled by the Main Level knob.

3. Main Level: Adjusts the output volume of the Main Out so you can control the listening

level of your connected powered monitors.

4. MIDI In: Use a standard five-pin MIDI cable to connect this input to the MIDI Out of an

external MIDI device.

5. MIDI Out: Use a standard five-pin MIDI cable to connect this output to the MIDI In of an

external MIDI device.

6. S/PDIF In: Connect the digital output of another device (e.g., a keyboard, digital cable

box, media streaming device, etc.) to this input using a 75 Ω coaxial (RCA) cable. Note

that the Gain knobs, Main Level knob, and Headphone Volume knob do not affect the

signal level; the signal will be sent straight to your DAW without any adjustments.

7. S/PDIF Out: Connect the digital input of another device (e.g., a stereo system receiver,

solid-state flash recorder, etc.) to this output using a 75 Ω coaxial (RCA) cable. The signal

sent from this output is identical to that of the Main Out.

8. Input Selector: Selects M-Track Plus's input source. For normal operation (using the Mic

Inputs and Guitar/Line Inputs), set this switch to Analog. When using the S/PDIF In, set

this switch to Digital; M-Track Plus will ignore the Guitar/Line Inputs and Inserts.

9. Phantom Power LED: Lights up when phantom power is engaged.

10. MIDI Out LED: Flashes when MIDI data is sent from your software to M-Track Plus's

MIDI Out.

11. MIDI In LED: Flashes whenever MIDI data is received from an external MIDI controller.

12. USB LED:

Illuminates when a valid USB connection has been established between your

computer and M-Track Plus. Use this light to verify that M-Track Plus is receiving power

and is ready to use.

13. LED Meters: Indicates the audio level of the Main Out.
