Pfaff Quilt Ambition 2.0 [14/48] Free arm

Preparations

Free arm

To use the free arm, slide off the accessory tray. When

attached, a hook keeps the accessory tray securely

attached to the machine. Remove the tray by sliding it

to the left.

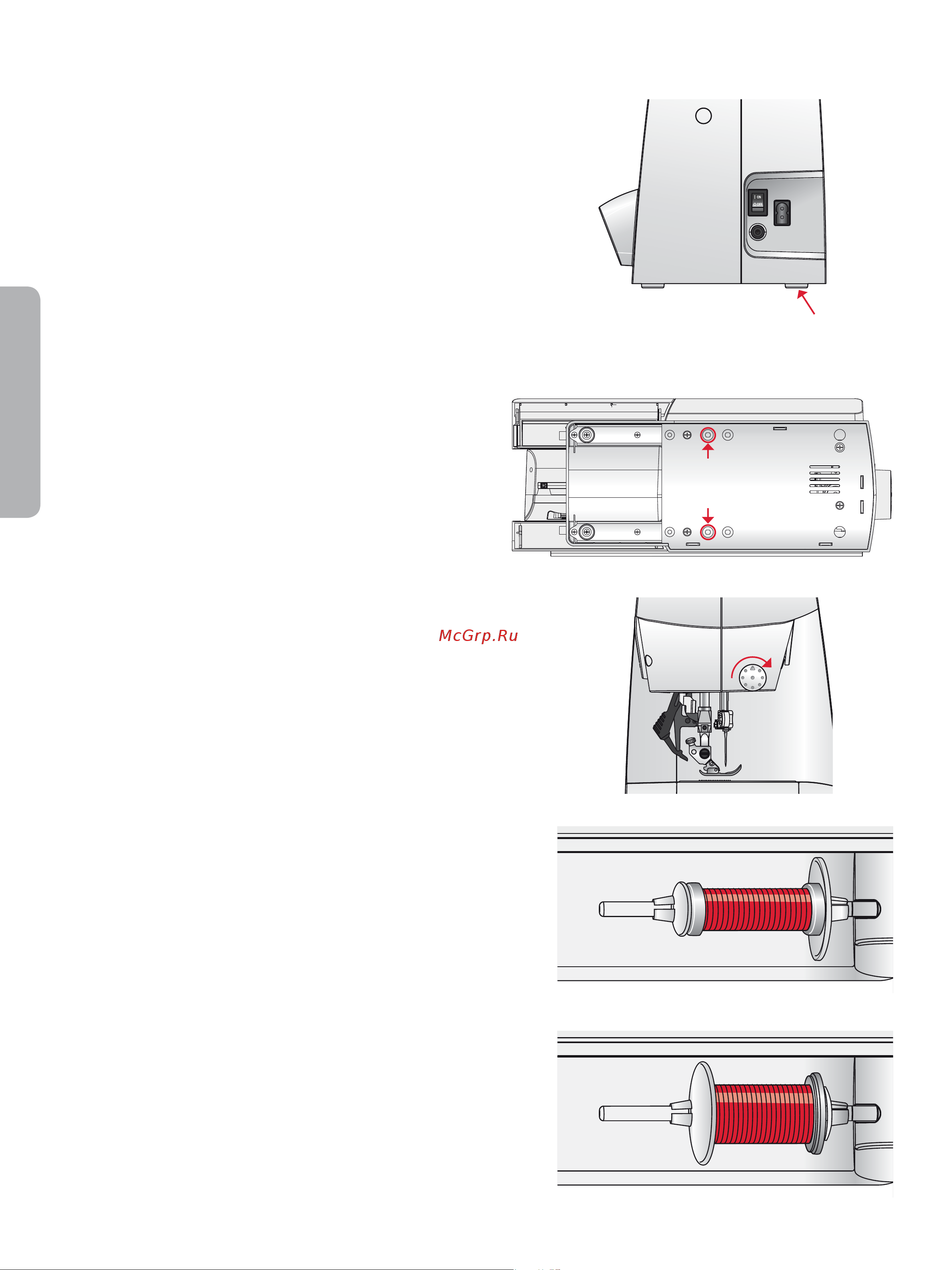

Leveling the machine base plate

To make sure your machine stands steadily on your

sewing surface you can adjust the base plate height.

Turn the base plate adjusting screw (A) by hand. Turn

clockwise to lower and counter-clockwise to raise the

base plate.

Mounting machine in sewing cabinet

There are two holes on the underside of the machine

designed for mounting the machine into a sewing

cabinet. Align the holes (indicated in the picture) with

the corresponding holes in the cabinet base. Attach the

machine with screws.

Thread cutter

To use the thread cutter, pull the thread from back to

front as shown (B).

Spool pins

Your machine has two spool pins, a main spool pin and

an auxiliary spool pin. The spool pins are designed for

many types of thread. The main spool pin is adjustable

and can be used both in a horizontal position (the

thread reels off the spool) and a vertical position (the

thread spool rotates). The horizontal position can be

used for most sewing and embroidery threads, and the

vertical position can be used for many specialty threads.

Horizontal position

Place a spool cap and the thread spool on the spool pin.

Make sure that the thread reels over the top and slide

on the second spool cap.

Use a spool cap slightly larger than the thread spool.

For narrow thread spools, use a smaller spool cap in

front of the spool. For large thread spools, use a larger

spool cap in front of the spool.

7KHÁDWVLGHRIWKHVSRROFDSVKRXOGEHSUHVVHGÀUPO\

against the spool. There should be no space between the

spool cap and the thread spool.

Small spool cap

Large spool cap
