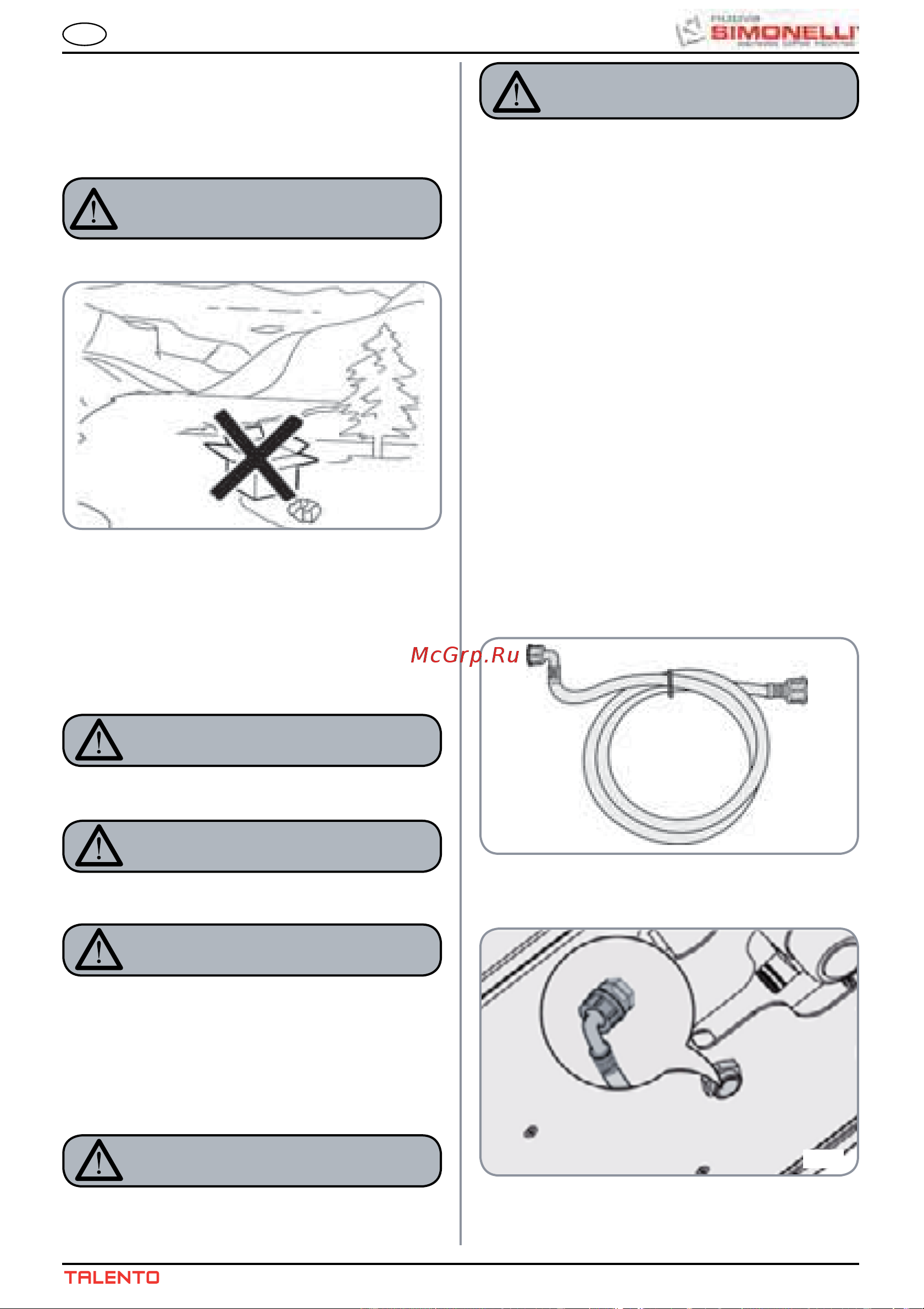

4. INSTALLATION
AND PRELIMINARY
OPERATIONS
CAUTION
RISK OF POLLUTION
Do not dispose of packaging in the environment.
Before carrying out any installation and adjust-
ment operations you must read and fully under-
stand the SAFETY INSTRUCTIONS of this hand-
book. The company cannot be held responsible
for damage to things or injury to persons caused
by failure to comply with the safety instructions
and installation and maintenance instructions
contained in this handbook.
CAUTION
RISK OF SHORT CIRCUITS
Before connecting the machine to the mains
power supply, please check that the supply volt-
age corresponds to the machine voltage.
Place the machine on a flat, level surface to avoid
any possible malfunctioning.
Never install the machine in areas where it could
come into contact with jets of water.
The machine can be used with the following:
- Coffee grains
- Decaffeinated coffee powder
- Milk (not powdered)
The use of any other substance not listed
here above may cause serious damage to the
machine itself.
WARNING
WARNING
WARNING
The machine is designed to operate at tempera-
tures ranging from +5°C to +40°C (41°F - 104°F).
WARNING
4 Connect the other end of the pipe to the water
mains.
3 Connect one end of the pipe to the 3/4” inlet on the
back of the machine.
4.1 MACHINE
INSTALLATION
Once the machine has been withdrawn from the
packaging, carry out the following instructions:
1 Position the unit on a horizontal surface.
2 Remove the pipe with 3/4” coupling from the
hatch in the top of the machine.
NOTE: At the start of the day’s activities and in any
case, if there are any pauses of more than 8
hours, then it is necessary to change 100%
of the water in the circuits, using the relevant
dispensers.
NOTE: In case of use where service is continuous,
make the above changes at least once a
week.
