Fig. 19
FIN
O
FINE
GOARSE
GROSSO
OPEN
CLOSED
Fig. 18
Fig. 20
41
EN

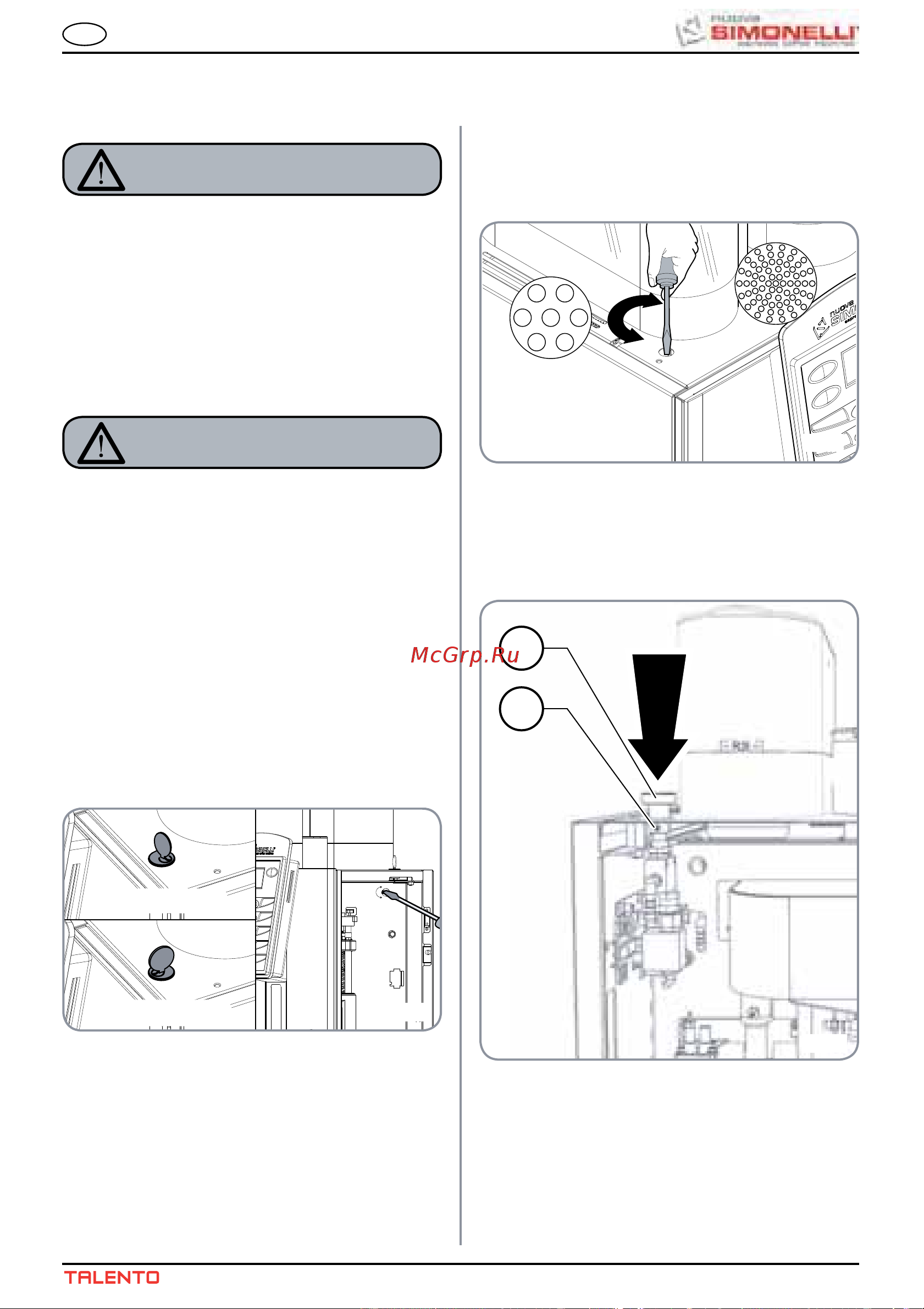

5. ADJUSTMENTS TO BE MADE BY A QUALIFIED
TECHNICIAN ONLY
Switch on the grinder to carry out the grinding
adjustment procedures.
NOTA: The procedure is possible also with the
appliance on.
Put the key into its lock.
Turn the control panel hatchdoor key counter-
clockwise.
Open the control hatch to access the grind-
ing adjustment screw. Follow the direction of
the arrows to increase the COARSE setting
(anticlockwise) or the FINE setting (clockwise)
for grinding the coffee beans, using a flat head
screwdriver.
Lock the hatchdoor.
WARNING
5.1
GRINDING ADJUSTMENT
NOTE: The procedure is possible also with the
appliance on.
To change the amount of air to the milk foamer and
therefore, to change the amount of foam, use the
5.2 MILK FOAMER
ADJUSTMENT
WARNING
The adjustments listed here below may be per-
formed by Specialist Technical Engineers ONLY.
Nuova Simonelli cannot accept any liability for
damage to people or property arising from fail-
ure to follow the safety regulations listed in this
manual.
adjustment screw as illustrated in the figure so as to
increase / reduce the air to the milk foamer.
After setting the amount of foam for the milk foamer,
it is possible to install the adjustment knob (A) by
inserting it in the centre of the slot. To fix the knob
in place, tighten the grub screw (B) inside the door.
A
B
