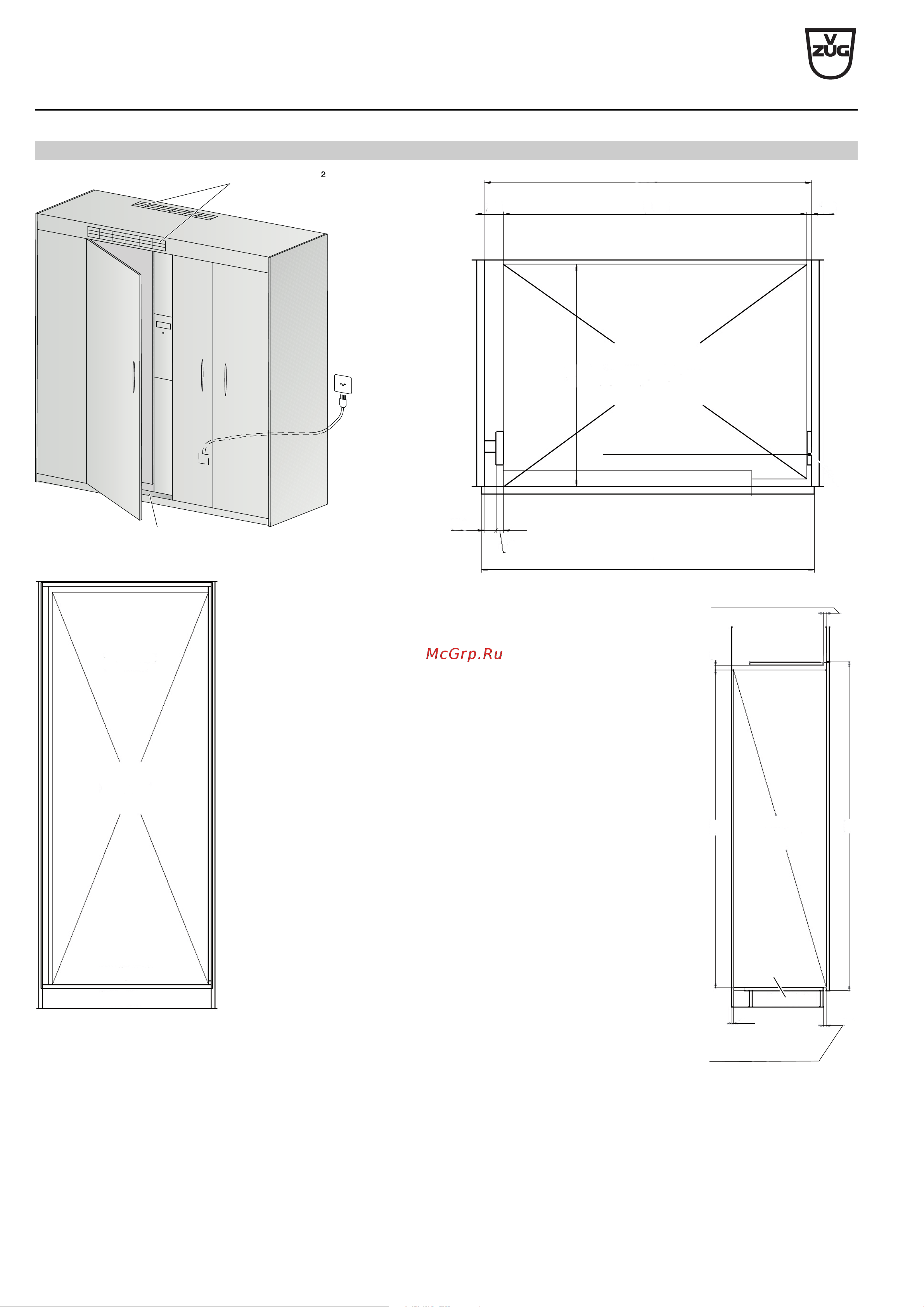

Planning aid

Laundry room appliances

Positioning in a niche

A = ≥ 200 cm

REFRESH-BUTLER

49 775 12 + 1

Mount spacer moulding

according to the appliance

REFRESH-BUTLER

Cabinet doors with

belt attached at sides

25 mm gap to ﬂoor

for air circulation

Base reinforcement for appliance

25 mm gap to ﬂoor

for air circulation

25 mm gap to ceiling

for air circulation

Base reinforcement

for appliance

A Ventilation slit on the top at the back or above the cab-

B Load-bearing capacity of cabinet floor: min.170kg
