23. Fix the collar to the exhaust opening.

24. Secure the box with the screws already pre-tightened to the motor body.

Note: The box is of two types, with front or rear fixing. Follow the instructions in the figures (24a and 24b),

depending on your model.

25. Fit the power cable in the special housing.

26. Secure the cable to the cable clamp.

IMPORTANT: This operation is compulsory. To avoid accidental disconnection of the electrical cable.

Carry out the connection to the household electrical system.

27. Connect the fume exhaust pipe to the collar; the pipe must be run towards the outside (extractor

version) or towards the deflector (filter version).

28. Fit the flues over the extraction unit, in the special seat above the hood.

29 a. Pull out the top section and fix the flues with the screws as shown.

b. With 120 cm wide models, the flue must also be fixed at the bottom, inside the hood, with screws as

shown in the figure.

30. Fit the carbon filter (Filter Version only) andrefit the grease filter(s).

31. Hook the panel to the hood.

32. Secure the panel with the special lever located on the right of the panel.

Note: Make sure the panel is properly secured in place.

33. Turn the panel covering the extraction area, hooking it to the hood by pressing hard.

IMPORTANT: Always make sure the panel is firmly fixed in place.

Check correct hood operation, referring to the hood description and use section.

- Disconnect the appliance from the power supply

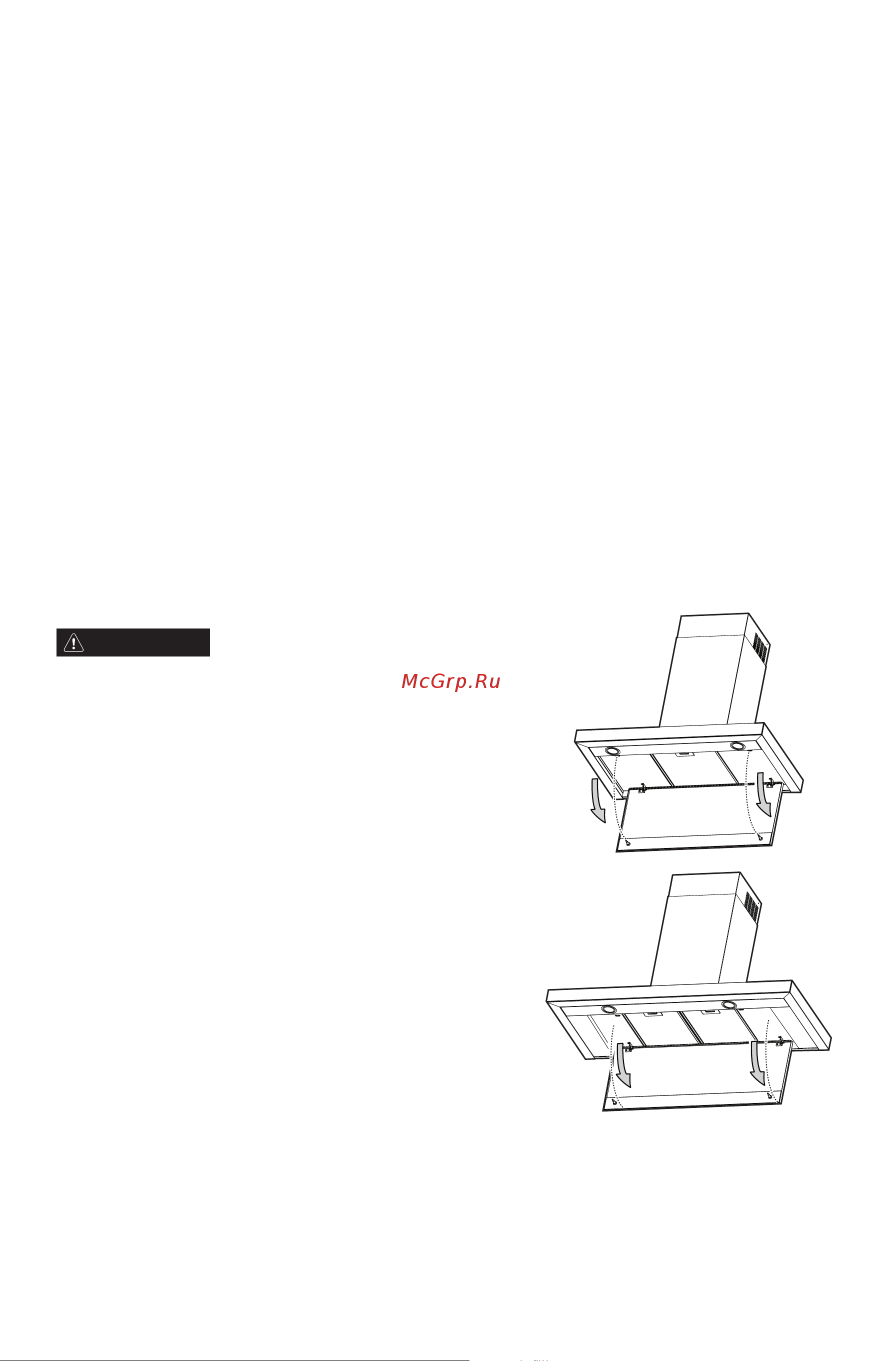

Cleaning the perimeter extraction panel

Removal:

pull the handle (FRONT) firmly downwards.

Cleaning:

The extraction panel must be cleaned as often as the grease filter,

using a rag moistened with neutral liquid detergent.

Do not use products containing abrasives.

IMPORTANT: Do not use alcohol.

Fitting:

The panel must be fixed at the front, in the special pins on the

hood surface.

IMPORTANT: Always make sure the panel is firmly fixed in

place.

WARNING:

Maintenance
