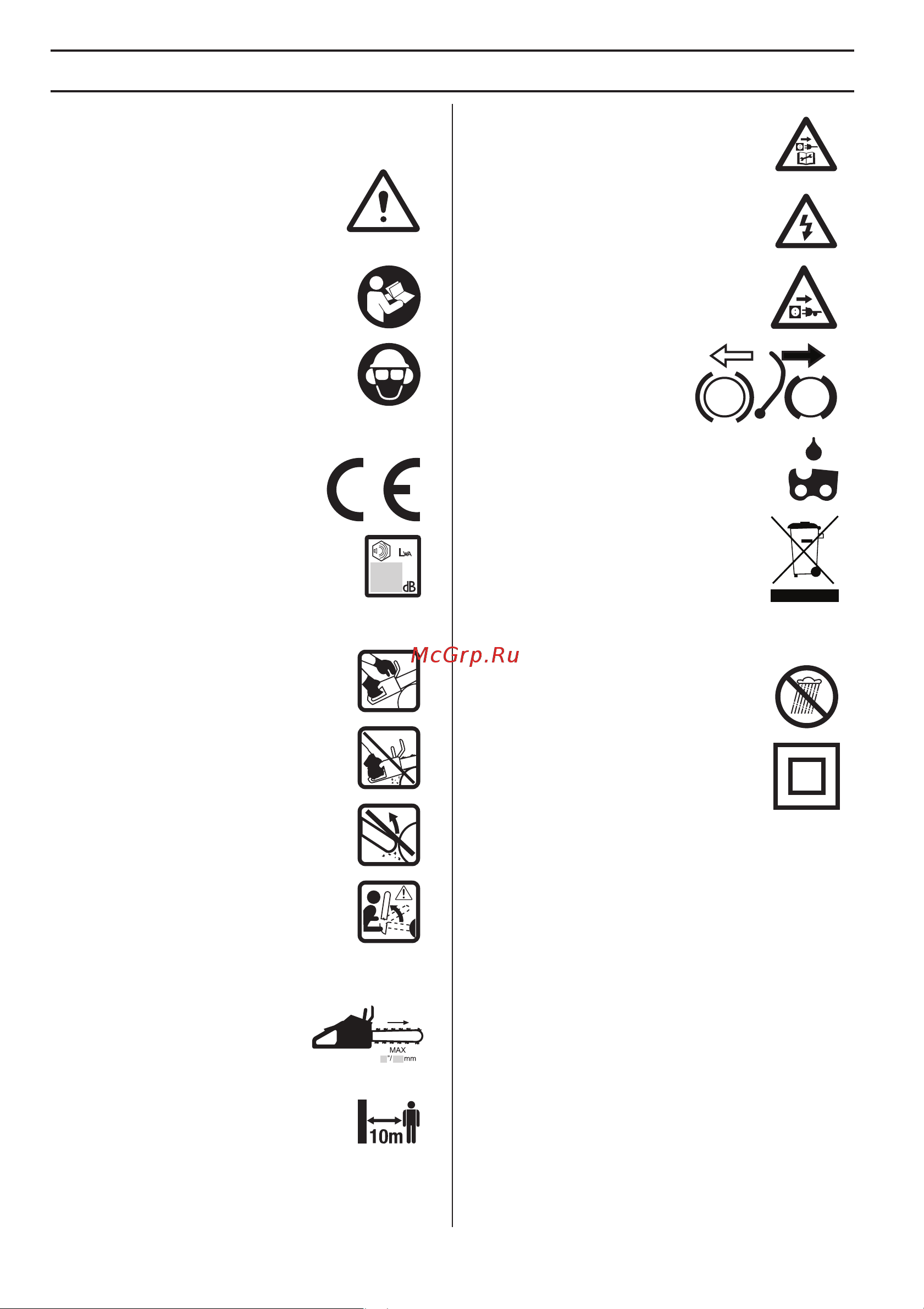

KEY TO SYMBOLS
6 – English
Symbols on the machine:
Translation of the original Swedish operating instruction.
WARNING! Chain saws can be
dangerous! Careless or incorrect use can
result in serious or fatal injury to the
operator or others.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the machine.
Always wear:
• Approved protective helmet
• Hearing protection
• Protective goggles or a visor
This product is in accordance with
applicable EC directives.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in the Technical data chapter and
on the label.
Both of the operator
′
s hands must be used
to operate the chain saw.
Never operate a chain saw holding it with
one hand only.
Never let the guide bar tip come in contact
with any object.
WARNING! Kickback may occur when the
nose or tip of the guide bar touches an
object, and cause a lightning fast reverse
reaction, kicking the guide bar up and
towards the operator. May cause serious
personal injury.
Direction of rotation of the saw
chain and maximum length of the
guide bar.
Keep bystanders away.
Disconnect the plug before adjusting or
cleaning.
Risk of electric shock.
Remove plug from power supply
immediately if the cable is damaged or
cut.
Chain brake, activated (right)
Chain brake, not activated
(left)
Chain oil fill.
Environmental marking.
Symbols on the
product or its packaging indicate that this
product cannot be handled as domestic
waste. It must instead be submitted to an
appropriate recycling station for the
recovery of electrical and electronic
equipment.
Do not expose to rain.
Double insulation
Other symbols/decals on the machine refer to special
certification requirements for certain markets.
