FINISHING MOWER ASSEMBLY INSTRUCTIONS

Assembly Tools

Socket wrench with 10mm, 12mm, 14mm, 17mm, 19mm socket.

Extension bar, Adjustable wrench, Plier.

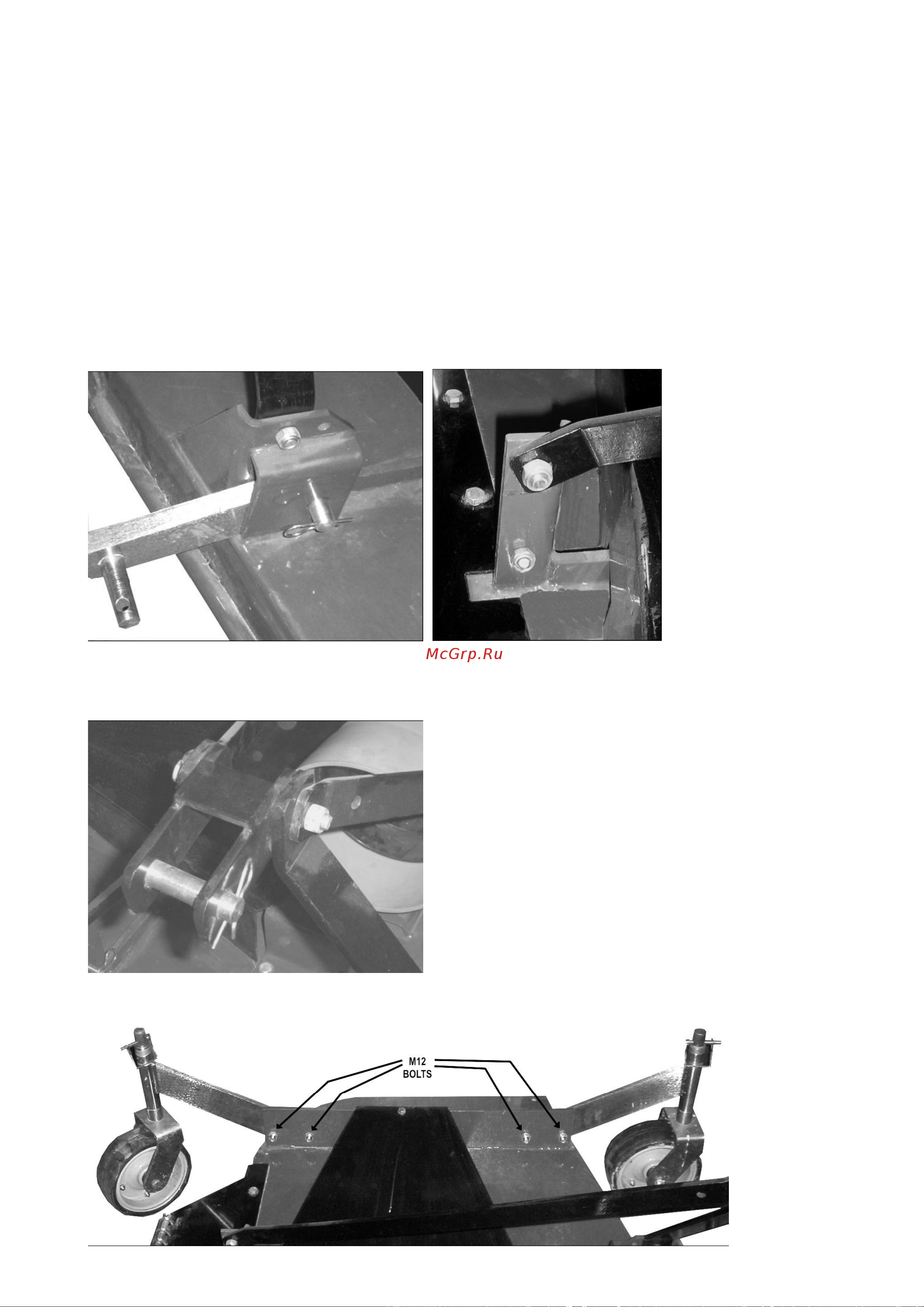

Step 1: Attach the rear brace bars to the lugs on the rear of the deck with an M12 bolt and locking

nut. Attach the A-frame bars to the lugs on the front of the mower deck with M12 bolts and locking

nuts. See below figure:

Step 2: Connect all braces at the top of the A-frame with an M12 bolt, spacer, hitch connection, and

locking nut. See below picture:

Step 3: Install the wheel support braces with M12 bolts and locking nuts as shown below:
