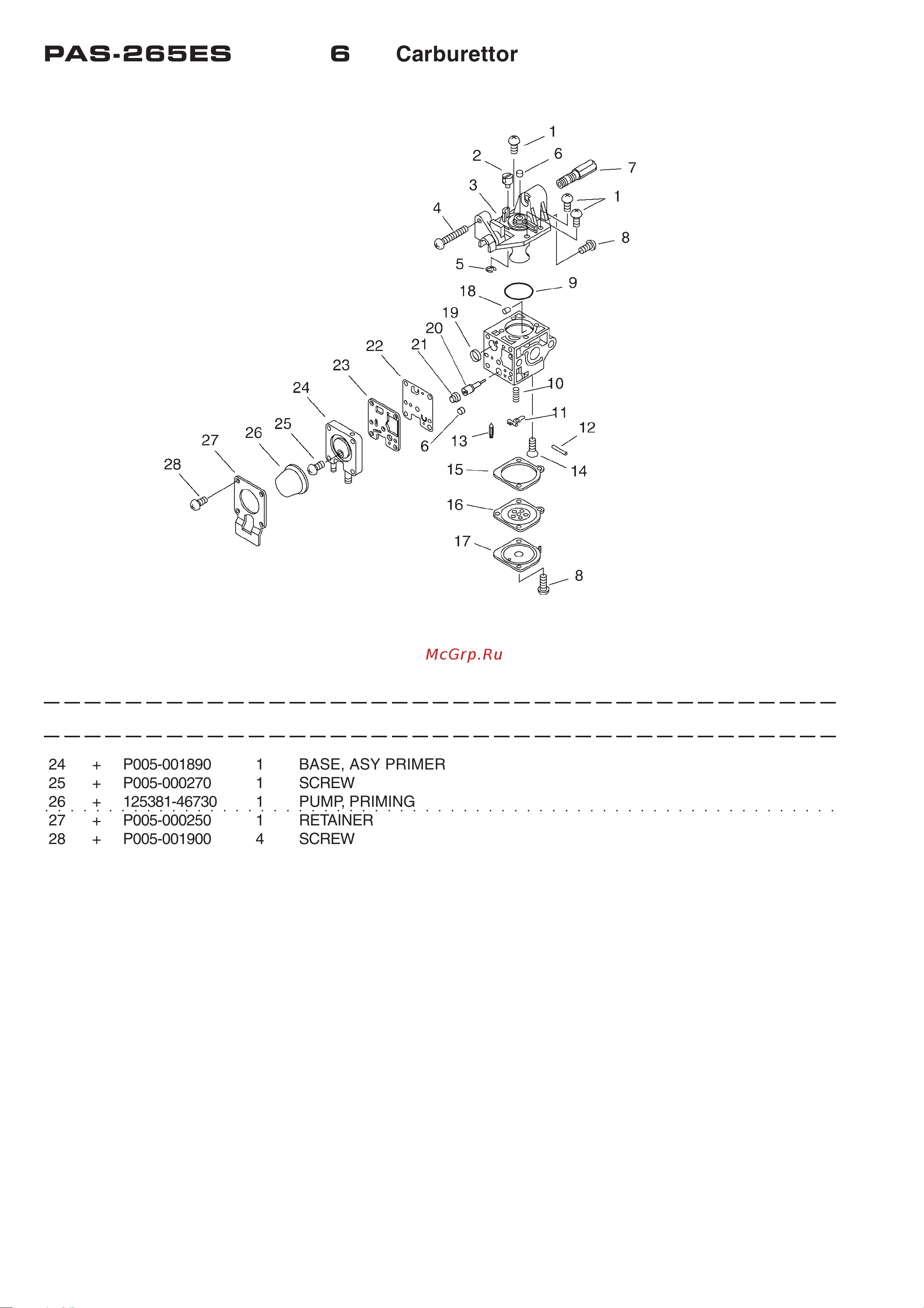

ECHO INCORPORATED ECHO Pro Attachment PAS-265ES (деталировка) [11/15] Pas 265es 6 carburettor
![ECHO INCORPORATED ECHO Pro Attachment PAS-265ES (деталировка) [11/15] Pas 265es 6 carburettor](/views2/2002328/page11/bgb.png)
- 10 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
24 + P005-001890 1 BASE, ASY PRIMER
25 + P005-000270 1 SCREW
26 + 125381-46730 1 PUMP, PRIMING
27 + P005-000250 1 RETAINER
28 + P005-001900 4 SCREW
PAS-265ES 6 Carburettor
Содержание
- 900256 05016 1 screw tapping 2 a162 000100 1 guard top 3 x505 002310 1 label caution 4 a160 000780 1 cover cylinder 5 x547 000880 1 label echo 6 91141 05012 1 bolt 7 a162 000080 1 guard top 8 900106 05014 1 bolt h s 5 14 9 900106 05008 2 bolt h s 5 8 10 a160 000691 1 cover cylinder 11 a130 000761 1 cylinder 12 900162 05025 4 bolt h s 5 25 13 v100 000210 1 gasket cyl 14 p021 009771 1 piston kit 15 a101 000170 1 ring piston 16 100015 03931 2 circlip piston pin 17 100013 35430 1 pin piston 18 100014 53630 2 spacer piston pin 19 100012 16131 1 bearing needle 20 a011 000434 1 crankshaft asy 21 p021 010801 1 crankcase kit 22 100212 42031 1 oilseal 23 100215 03930 2 pin dowel 24 94035 36201 2 bearing ball 2
- Key lv part number q ty description remarks 2
- Pas 265es 1 cylinder crankcase piston fan cover 2
- 100242 42030 1 gasket crankcase 26 900162 05028 3 bolt h s 5 28 27 v505 000050 1 seal oil 12 28 156635 43130 1 lead ground 29 a127 000160 1 cover dust 30 159116 21231 1 clamp 31 900162 05016 1 bolt h s 5 16 32 p021 009790 1 cover asy fan 33 a556 000390 1 drum clutch 34 900702 00028 1 circlip 28 35 900807 06001 2 bearing ball 6001 36 900701 00012 1 circlip 12 37 v622 000020 2 pin straight 4 38 900163 04016 4 bolt hsh 39 v491 000180 1 clip 40 p021 009380 1 fixture main pipe 41 v420 001081 1 cushion 42 900162 05025 2 bolt h s 5 25 43 900105 05012 1 bolt h s 5 12 44 100142 12330 1 key woodruff 3
- Key lv part number q ty description remarks 3
- Pas 265es 1 cylinder crankcase piston fan cover 3
- 162010 04561 1 lead ground 2 156110 04920 1 bushing 3 v135 000030 1 grommet ht cord 4 v202 000130 2 bolt 4 5 v475 003380 1 tube 6 a411 000250 1 coil ignition 8 a427 000012 1 cap spark plug 9 a426 000010 1 terminal sparkplug 10 a425 000000 1 sparkplug 11 900515 00008 1 nut flange 8 12 a409 000310 1 rotor magneto 13 175046 56030 2 shaft clutch 14 175049 56030 2 washer 15 a553 000010 2 arm clutch 16 175048 05530 2 washer i 17 v451 000400 1 spring tension 18 a052 000180 1 pulley asm starter 19 p022 002100 2 e ring 20 p022 006510 2 spring return 21 p022 006850 2 pawl starter 22 a051 000940 1 starter recoil asy 23 177236 61830 1 screw 24 p022 008280 1 plate cam 25 p022 008270 1 spring damper 4
- Key lv part number q ty description remarks 4
- Pas 265es 2 starter magneto 4
- Key lv part number q ty description remarks 5
- P022 006830 1 drum 27 p022 008260 1 rope 28 177220 42030 1 spring rewind 29 177246 11120 1 clip starter rope 30 177228 27030 1 grip starter 31 177227 42030 1 guide rope 32 900565 00005 1 nut 33 900163 04016 4 bolt hsh 34 x502 000330 1 label echo 35 a175 000030 1 stand 36 900603 00005 4 washer 5 37 900162 05025 4 bolt h s 5 25 38 v322 000031 2 washer circular 4 39 900603 00004 2 washer 4 5
- Pas 265es 2 starter magneto 5
- Key lv part number q ty description remarks 6
- Pas 265es 3 air cleaner muffler 6
- V103 000210 1 gasket intake 2 a200 000200 1 insulator intake 3 900162 05025 2 bolt h s 5 25 4 v103 000270 1 gasket intake 5 a021 001530 1 carburetor diaphragm 6 p021 004480 1 case air cleaner 7 129011 52730 1 plate prevent 8 900242 05065 2 screw 5 65 9 130310 54130 1 filter air 10 a232 000330 1 lid cleaner 11 890332 52730 1 label choke 12 v299 000250 1 knob fastener 13 a320 000340 1 cover muffler 14 900106 05014 1 bolt h s 5 14 15 p021 011580 1 muffler asy 16 91367 04010 3 screw 17 a313 000830 1 guide exhaust 18 v104 000790 1 gasket exhaust 19 145862 40630 1 screen muffler 20 900500 00005 2 nut 5 21 92280 05000 2 washer nord lock 22 v150 001760 1 plate eye 23 v104 000780 1 gasket exhaust 24 v203 000120 2 bolt 5 25 100015 00120 1 circlip piston pin 26 c486 000000 1 cable adjuster 6
- 131004 55530 1 cap assy fuel tank 2 131016 55830 1 gasket fuel cap 3 131051 56030 1 clip fuel cap 4 a350 000600 1 tank fuel 5 a356 000030 1 valve check 6 132013 26630 1 clip 7 v471 001180 1 pipe 8 132115 55930 1 grommet fuel 9 132013 09820 1 clip 10 a369 000000 1 strainer fuel 11 v470 000580 1 pipe 12 132001 15030 1 valve check 13 132010 40830 1 pipe 3 6 75 7
- Key lv part number q ty description remarks 7
- Pas 265es 4 fuel tank 7
- Key lv part number q ty description remarks 8
- P021 008322 1 front handle asy 2 900242 05040 2 screw 5 40 3 c423 000190 1 fixture handle 4 890617 07660 1 label caution 5 351213 52130 1 grip 6 c050 000750 1 pipe main 7 610246 44730 2 stopper 8 610217 56730 1 liner flexible 9 890152 04930 1 label caution 10 c506 000042 1 shaft flexible 11 178003 52130 1 bracket set throttle 12 900500 00005 2 nut 5 35 890157 39130 1 label switch 13 900242 05035 1 screw 5 35 14 900242 05025 1 screw 5 25 15 301200 29430 1 band assy 16 900242 05014 1 screw 5 14 17 178010 52130 1 control throttle 18 178043 42230 1 spring thr return 19 178012 52730 1 lockout throttle 20 610272 52130 1 band 12 900500 00005 1 nut 5 21 900242 05028 1 screw 5 28 22 c646 000060 1 ring harness 8
- Pas 265es 5 handle 8
- Key lv part number q ty description remarks 9
- P021 004350 1 bracket asy 24 178302 56630 1 latch assy 25 91085 06040 1 bolt 26 900105 06010 1 bolt h s 6 10 27 900514 00006 1 nut 6 28 900105 06025 1 bolt h s 6 25 29 v304 000040 1 washer circular 6 30 v299 000160 1 knob fastener 31 178013 52630 1 spring thr lock 32 178090 52632 1 lockout t control 33 610281 54130 1 coller 34 900253 04025 2 screw 4 25 36 900100 05012 1 bolt 5 12 37 v043 000150 1 cable asy control 38 v312 000010 1 washer circular 18 39 p021 002861 1 goggles 40 895410 39131 1 wrench w s driver 41 c405 000170 1 bracket handle 9
- Pas 265es 5 handle 9
- A021 001530 1 carburetor diaphragm 1 125344 13931 3 screw 2 p005 001240 1 post 3 p005 001980 1 cover asy rotor 4 p005 000100 1 screw throttleadjust 5 p005 000190 1 e ring 6 p005 001270 2 plug h ajust screw 7 p005 002010 1 screw wirw adjust 8 125344 52130 3 screw 9 p005 000280 1 o ring 10 125322 07260 1 spring coil 11 125323 08260 1 arm valve 12 125338 13930 1 pin metering arm 13 125337 08260 1 valve inlet needle 14 125339 42030 1 screw 15 p005 000200 1 gasket metering 16 p005 001780 1 diaphragm 17 125342 52130 1 cover diaphragm 18 p005 001000 1 roller guide 19 p005 000010 1 strainer 20 p005 001290 1 screw mainn mixture 21 p005 001250 1 retainer plug ball 22 p005 000510 1 diaphragm pump 23 p005 000520 1 gasket pump 10
- Key lv part number q ty description remarks 10
- Pas 265es 6 carburettor 10
- Key lv part number q ty description remarks 11
- P005 001890 1 base asy primer 25 p005 000270 1 screw 26 125381 46730 1 pump priming 27 p005 000250 1 retainer 28 p005 001900 4 screw 11
- Pas 265es 6 carburettor 11
- Key lv part number q ty description remarks 12
- P005 001660 1 diaphragm gasket kit 6 15 p005 000200 1 gasket metering 6 16 p005 001780 1 diaphragm 6 22 p005 000510 1 diaphragm pump 6 23 p005 000520 1 gasket pump p005 001990 1 rebuild kit 6 10 125322 07260 1 spring coil 6 11 125323 08260 1 arm valve 6 12 125338 13930 1 pin metering arm 6 13 125337 08260 1 valve inlet needle 6 15 p005 000200 1 gasket metering 6 16 p005 001780 1 diaphragm 6 18 p005 001000 1 roller guide 6 19 p005 000010 1 strainer 6 22 p005 000510 1 diaphragm pump 9 23 p005 000520 1 gasket pump 12
- Pas 265es 7 repair kit 12
- Parts number key no parts number key no parts number key no 13
- Parts number key no parts number key no parts number key no 14
- No 4 132 641316 641283 15
