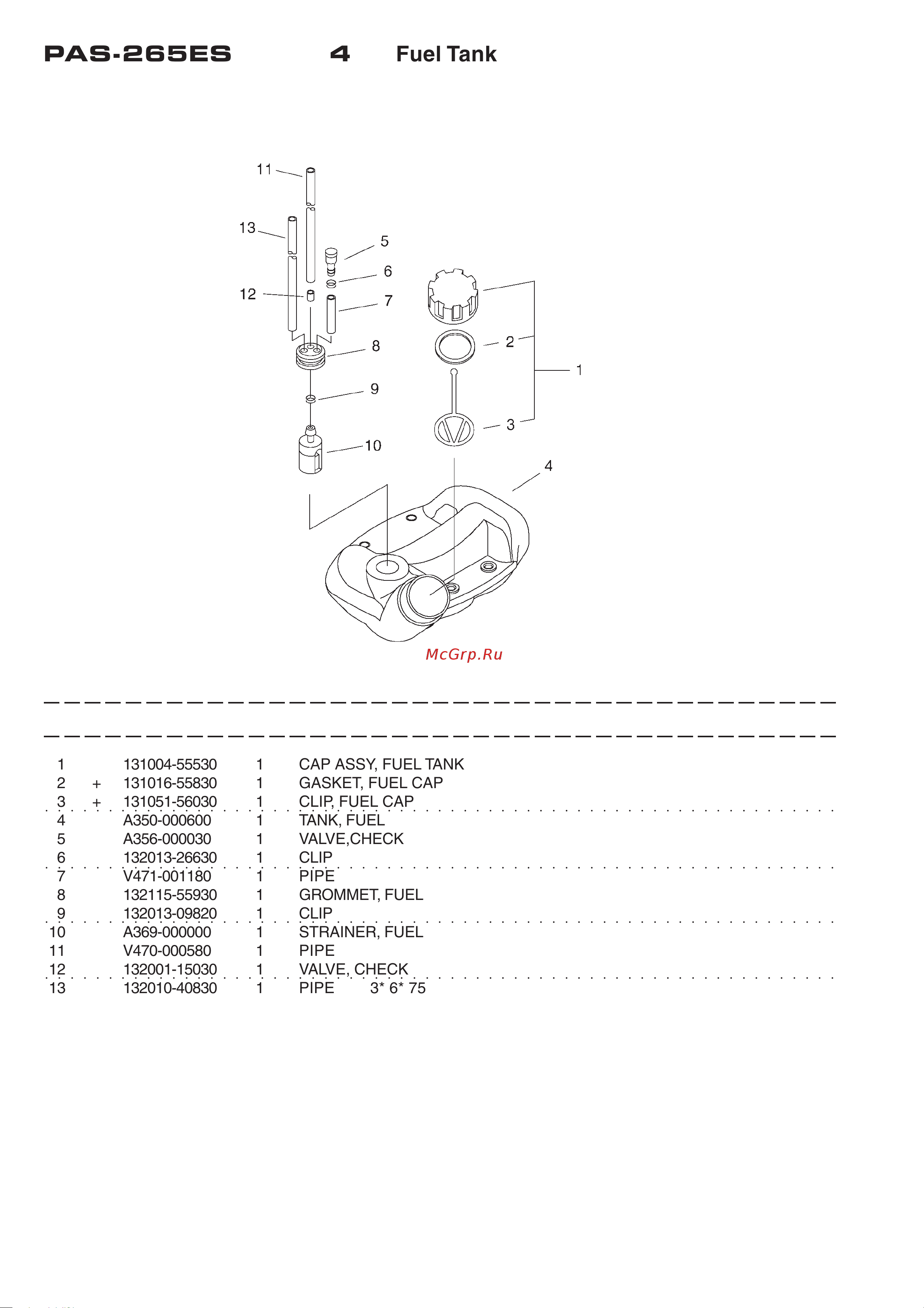

ECHO INCORPORATED ECHO Pro Attachment PAS-265ES (деталировка) [7/15] Pas 265es 4 fuel tank
![ECHO INCORPORATED ECHO Pro Attachment PAS-265ES (деталировка) [7/15] Pas 265es 4 fuel tank](/views2/2002328/page7/bg7.png)
- 6 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 131004-55530 1 CAP ASSY, FUEL TANK
2 + 131016-55830 1 GASKET, FUEL CAP
3 + 131051-56030 1 CLIP, FUEL CAP
4 A350-000600 1 TANK, FUEL
5 A356-000030 1 VALVE,CHECK
6 132013-26630 1 CLIP
7 V471-001180 1 PIPE
8 132115-55930 1 GROMMET, FUEL
9 132013-09820 1 CLIP
10 A369-000000 1 STRAINER, FUEL
11 V470-000580 1 PIPE
12 132001-15030 1 VALVE, CHECK
13 132010-40830 1 PIPE 3* 6* 75
PAS-265ES 4 Fuel Tank
