ECHO INCORPORATED ECHO Pro Attachment PAS-265ES (деталировка) [2/15] Pas 265es 1 cylinder crankcase piston fan cover
![ECHO INCORPORATED ECHO Pro Attachment PAS-265ES (деталировка) [2/15] Pas 265es 1 cylinder crankcase piston fan cover](/views2/2002328/page2/bg2.png)
- 1 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 900256-05016 1 SCREW, TAPPING
2 A162-000100 1 GUARD,TOP
3 X505-002310 1 LABEL,CAUTION
4 A160-000780 1 COVER,CYLINDER
5 X547-000880 1 LABEL,ECHO
6 91141-05012 1 BOLT
7 A162-000080 1 GUARD,TOP
8 900106-05014 1 BOLT, H.S. 5*14
9 900106-05008 2 BOLT, H.S. 5* 8
10 A160-000691 1 COVER,CYLINDER
11 A130-000761 1 CYLINDER
12 900162-05025 4 BOLT, H.S. 5*25
13 V100-000210 1 GASKET,CYL
14 P021-009771 1 PISTON KIT
15 + A101-000170 1 RING, PISTON
16 + 100015-03931 2 CIRCLIP, PISTON PIN
17 + 100013-35430 1 PIN, PISTON
18 + 100014-53630 2 SPACER, PISTON PIN
19 + 100012-16131 1 BEARING, NEEDLE
20 A011-000434 1 CRANKSHAFT,ASY
21 P021-010801 1 CRANKCASE KIT
22 + 100212-42031 1 OILSEAL
23 + 100215-03930 2 PIN, DOWEL
24 + 94035-36201 2 BEARING BALL

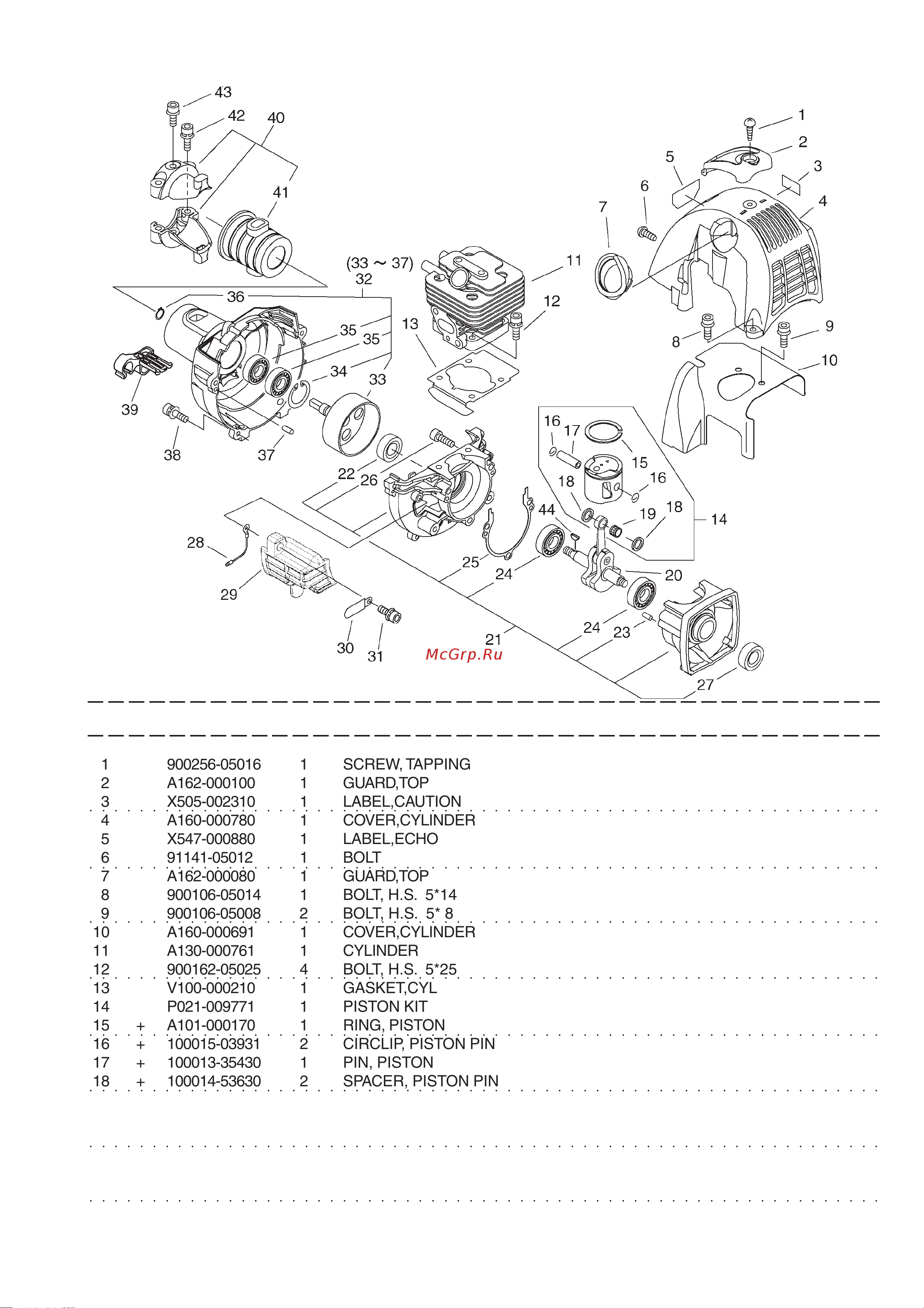

PAS-265ES 1 Cylinder, Crankcase, Piston, Fan Cover
