40
3S12081
flange nut M8
4

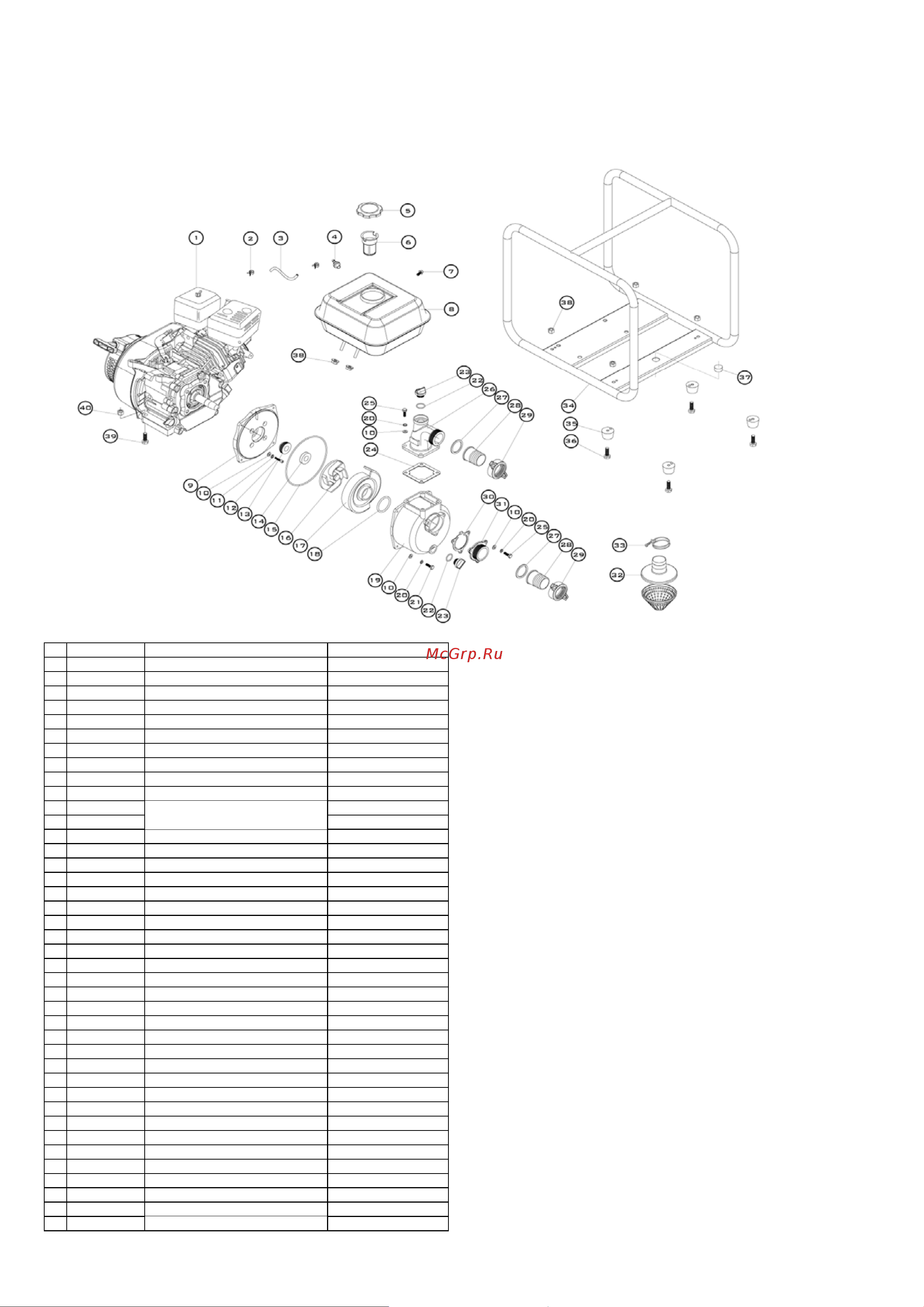

CHAMPION GP50
NO. CODE DESCRIPTION QTY.
1
2EP16011
UP168-1gasoline engine
1
2
3A2006001
Pipe clamp
2
3 3B0111007
Fuel pipe
1
4
3A2006400
Connector
1
5
3A2006100
Fuel tank cup
1
6
3A2006007
Filter cup
1
7
3S22060251
flange bolt M6X25
1
8
3A2006009
Fuel tank
1
9
3G3050001
Pump cover
1
10
3S35081
washerφ8 15
11
rubber washer
4
12
3S24080603
Inner hex bolt M8x60
4
13
3G3050002
Mechanical seal
1
14
3G3050006
A
porcelain seal
1
15
3G3050003
O ring φ248×φ3.55
1
16
3G3050007
water pump impeller
1
17
3G3050008
volute casing
1
18
3G3050009
A
rubber bushing
1
19
3G3050010
housing of pump
1
20
3S31082
spring washer φ8 11
21
3S21080301
bolt M8X30
4
22
3G3040013
A
O ring
2
23
3G3050013
plug packing
2
24
3G3050014
rubber washer 124X124
1
25
3S21080251
bolt M8X25
7
26
3G3050015
outlet flange
1
27
3G3050020
rubber washer
2
28
3G3050021
pipe joint
2
29
3G3050022
joint grip
2
30
3G3050011
check valve
1
31
3G3050012
inlet flange
1
32
3G3050024
filter net
1
33
3G3050023
Rear housing
3
34
3JPG5000
frame
1
35
3G20014
shock absorber
4
36
3S28060142
screw M6X14
4
37
3C13008
shock absorber
1
38
3S12061
flange nut M6
6
39
3S22080351
flange bolt M8X35
4
