 The electrical safety of the device is only guaranteed if the device is connected to a

properly installed protective conductor system. Operations using an electrical outlet

without a protective conductor are prohibited. If in doubt, have the house installation

checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a

missing or damaged protective conductor.

14 Design and Function

In this chapter, you'll find important information on the design and function of the device.

14.1 Overview and assembling

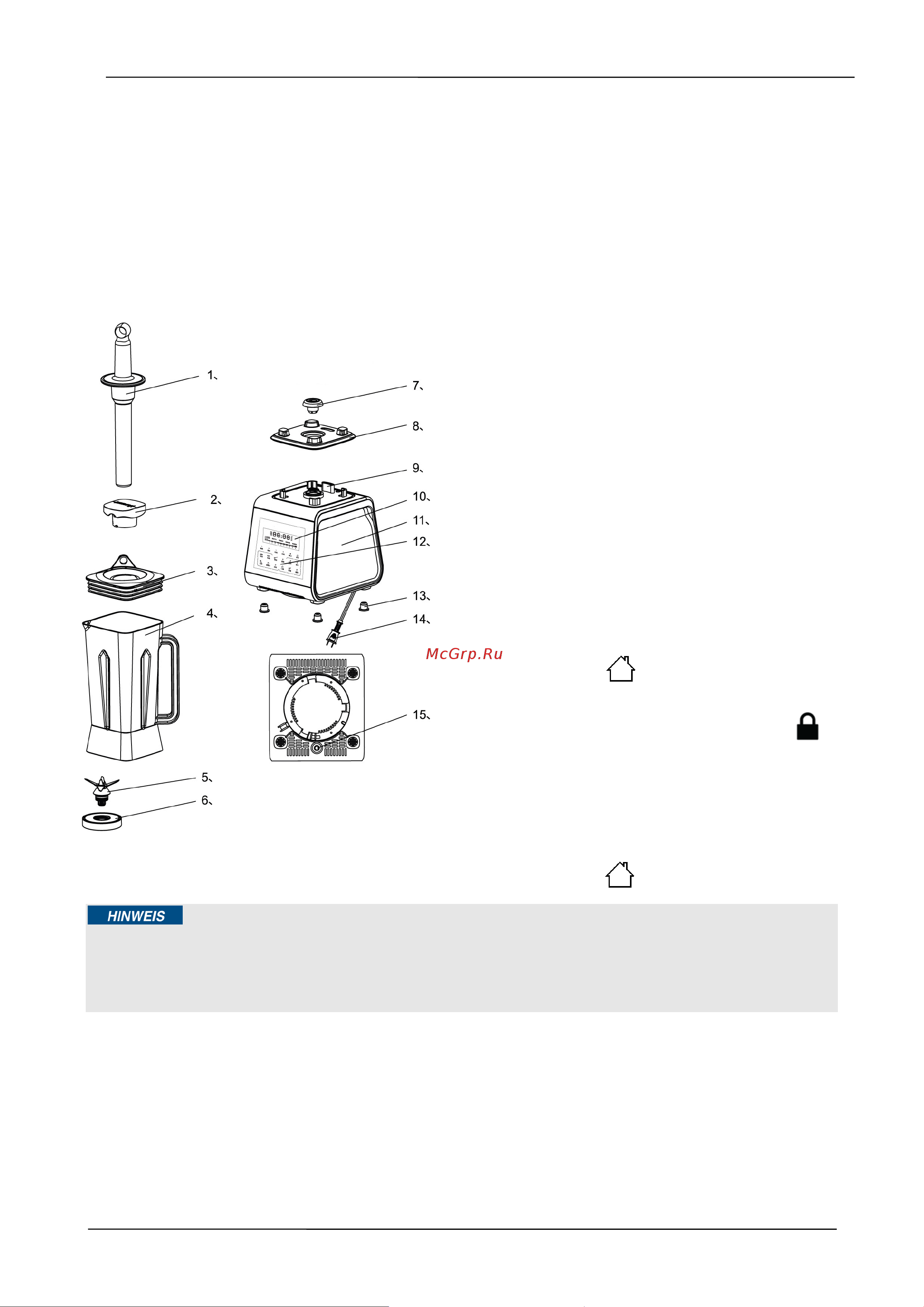

1. pusher

2. measuring cup (middle part of the lid)

3. lid 4. jar 5. blades

6. sealing ring 7. drive shaft

8. anti-vibration pad 9. safety switch

10. display 11. base with motor

12. touch-panel 13. feet

14. power cord with plug

15. reset-button

Assembling:

Place the measuring cup (middle part of lid)

into the lid so that the triangle points to the

open lock-symbol and turn the measuring

cup (middle part of lid) clockwise, until the

triangle points to closed lock-symbol.

Place the lid with measuring cup

(middle part of lid) into the jar.

Check that the anti-vibration pad is placed

well on the base.

For removing take the lid at the handle and

turn the measuring cup (middle part of lid)

anti-clockwise until the triangle points to open lock-symbol .

Please note: Use of pusher

► Take the measuring cup (middle part of lid) out off the lid and insert the pusher. With the

pusher you can push the ingredients into the jar.

► Use the pusher only when the device is not working.

14.2 Rating plate

The rating plate with the connection and performance data can be founded beneath the

device.
