Liebherr CTPesf 3316 Comfort [7/8] Changing over the door hinges

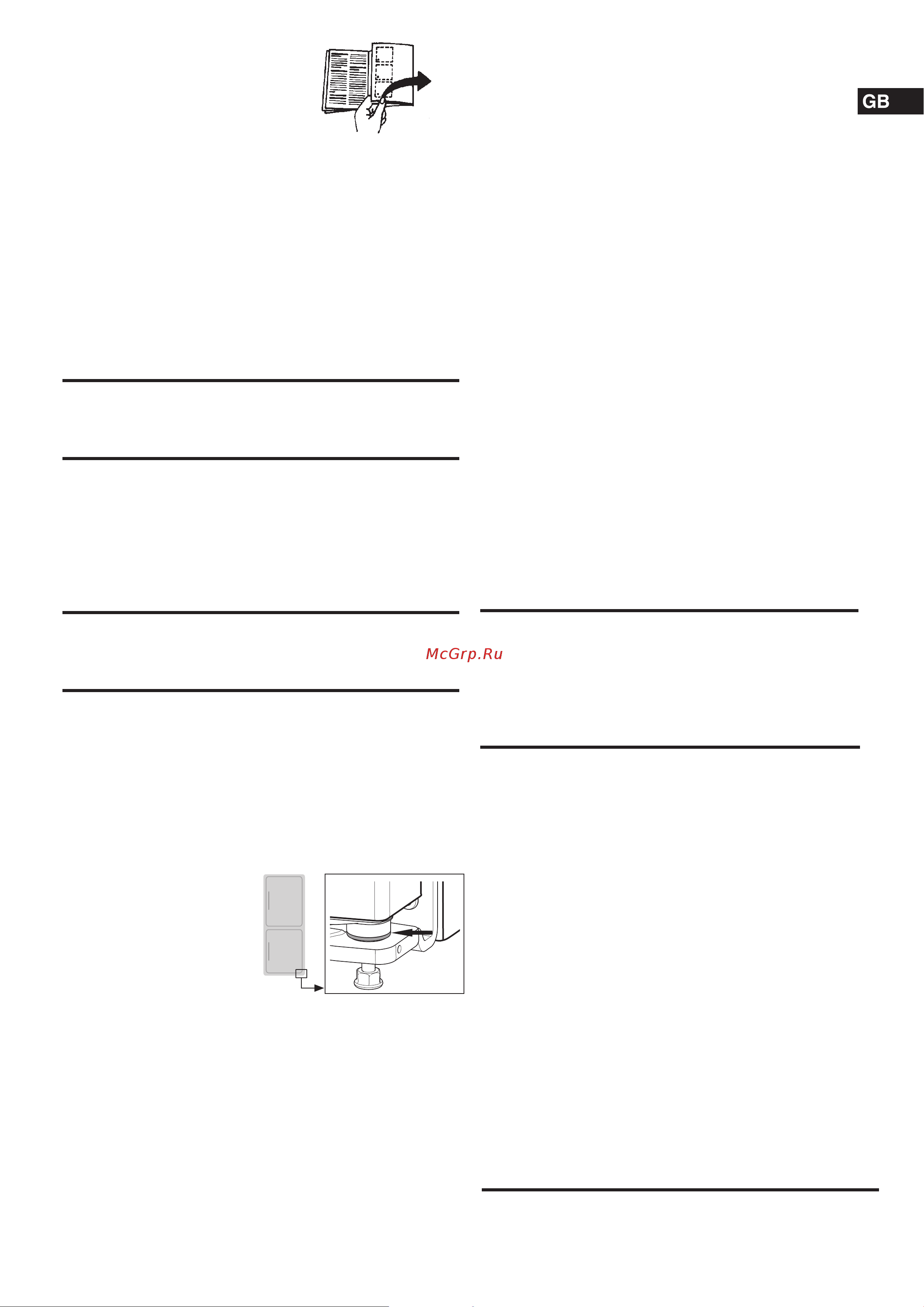

![Liebherr CTPesf 3316 Comfort [7/8] Changing over the door hinges](/views2/2005312/page7/bg7.png)
13
Changing over the door hinges
You can change over the door hinges if necessary.
Ensure that the following tools are to hand:
- Torx® 25
- Torx® 15
- Screwdriver
- Cordless screwdriver, if necessary
- Second person for fitting work, if needed
- Accompanying Allen key size 2
Detaching the upper door
- Close the upper door.
- Pull off the cover Fig. 1 (1) forwards and upwards.
- Lift off the cover Fig. 1 (2).
CAUTION
Risk of injury if the door tips!
- Take good hold of the door.
- Set down the door carefully.
- Unscrew the upper turn hinge Fig. 1 (3) (2x Torx® 25)
Fig. 1 (4) and lift it off.
- Lift up the upper door and set it aside.
Detaching the lower door
- Close the lower door.
- Draw the middle bearing pin Fig. 2 (11) out of the turn hinge
and lower door.
- Remove the plastic cap Fig. 2 (10).
CAUTION
Risk of injury if the door tips!
- Take good hold of the door.
- Set down the door carefully.
- Open the lower door.
- Unscrew the middle turn hinge (2x Torx® 25). Fig. 2 (13)
- Lift up the door and set it aside.
Transferring the middle bearing elements
- Carefully detach the cover panel Fig. 2 (12).
- Turn the middle turn hinge Fig. 2 (13) with the washer Fig. 2
(14) through 180° and screw it firmly into place on the new
hinge side (with 4 Nm).
- Turn the cover panel Fig. 2 (12) through 180° and snap it into
place again on the new handle side.
Transferring the lower bear-
ing elements
For appliances without
height adjustment
- Lift out the bearing pin Fig. 3
(22) together with washer
Fig. 3 (23) and foot Fig. 3 (24).
- Lift off the stopper Fig. 3 (21).
- Unscrew Fig. 3 (26) the turn hinge Fig. 3 (25).
- Unscrew Fig. 3 (29) the bearing element Fig. 3 (28), transfer
it to the opposite location hole of the turn hinge and screw it
firmly into place.
- Carefully lift off the cover on the handle side Fig. 3 (27) and
transfer it to the opposite side.
- Screw the turn hinge Fig. 3 (25) firmly into place on the new
hinge side, possibly using a cordless screwdriver (with 4 Nm).
- Re-insert the stopper Fig. 3 (21) into the other hole.
- Re-insert the bearing pin Fig. 3 (22) together with washer and
foot. In so doing, pay attention that the locating lug points
backwards.
Transferring the handles
On both the upper and lower door:
- Transfer the spring clamp Fig. 5 (31): Depress the latch
nose and pull the spring clamp off over it.
- Slide the spring clamp into place on the new hinge side
until it clicks into place.
- Lift the stopper Fig. 6 (30) out of the door bearing bush
and transfer it.
-
Detach door handle Fig. 6 (32), stopper Fig. 6 (33) and
pressure plates Fig. 6 (34) and transfer to the opposite side.
- When fitting the pressure plates on the opposite side,
make sure they snap properly into place*.
Fitting the lower door
-
Place the lower door from above onto the lower bearing pin.
- Close the door.
- Place the plastic cap Fig. 2 (10) back onto the middle turn
hinge Fig. 2 (13).
-
Place the middle bearing pin Fig. 2 (11) in the lower door, on
the new hinge side, through the middle turn hinge Fig. 2 (13).
Fitting the upper door
- Place the upper door on the middle bearing pin Fig. 2 (11).
- Insert the upper turn hinge Fig. 1 (3) in the door on the new
hinge side.
- Screw the upper turn hinge firmly into place (with 4 Nm)
(2x Torx® 25) Fig. 1 (4). Possibly make preliminary holes
with a bradawl or use a cordless screwdriver.
- Apply the cover Fig. 1 (1) and cover Fig. 1 (2) to the op
-
posite side from the outside and snap them into place.
Aligning the doors
- If necessary, align the doors to the appliance housing by
way of the two oblong holes in the bottom turn hinge and
middle turn hinge Fig. 2 (13). To do so, unscrew the mid-
dle screw in the bottom turn hinge.
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What
is more, the door may not close and therefore the appliance
may fail to cool properly.
- Screw the turn hinges firmly into place with 4 Nm.
- Check all of the screws and retighten if necessary.
All types and models are subject to continuous improvement
and the manufacturer therefore reserves the right to make modi-
fications in the shape, equipment and technology.
Before reading, please fold out and
refer to the illustrated back page.
