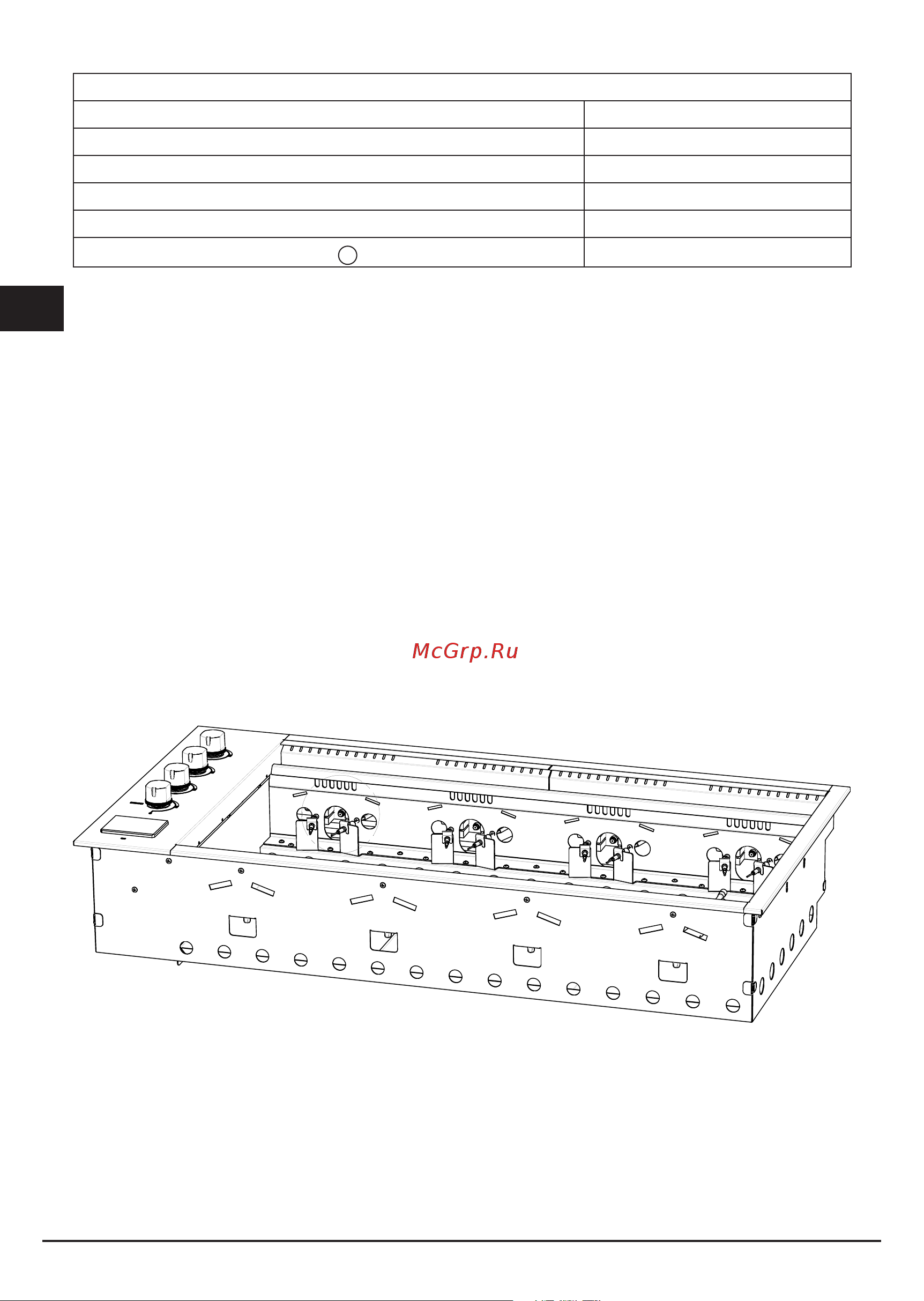

68 69
GB
G30 /G31 cat. I3B/P (50)
Nominal heat input (kW) 15,2
Injector diameter (1/100mm) 83
Number of injectors 4
Pressure (mbar) 50
Maximum consumption (l/h) 1106
Primary air regulation (mm)
X
see fig. page 70
All open
Adapting to different types of gas
If the appliance is configured for a different type of gas than that available, you have to replace
the injectors with ones corresponding to the type of gas to be used (see tables on the preceding
pages). They should be replaced using a 7 mm wrench, after removing the burners as shown
on page (96). After replacing the injector, regulate the air to 1mm for natural gas and to the
maximum if LPG.
To adjust the minimum, after lighting the burner, remove the knob and the gasket below and
rotate the screw of the tap (B - see page 70), which should be totally closed for LPG and opened
about 3/4 turn for natural gas, keeping in mind that a flame lower than 3 mm may not even be
“perceived” by the thermocouple of the tap. After regulating the minimums, replace the gaskets
and knobs.
BACK
FRONT
