Smeg KTS 75 BC [2/7] Glass removal

Installation of glass panels

Glass removal

To remove the glass panels, follow the procedure in the reverse order.

Take the two 200x750 hood glass panels out

of the box.

Remove them from the box with care.

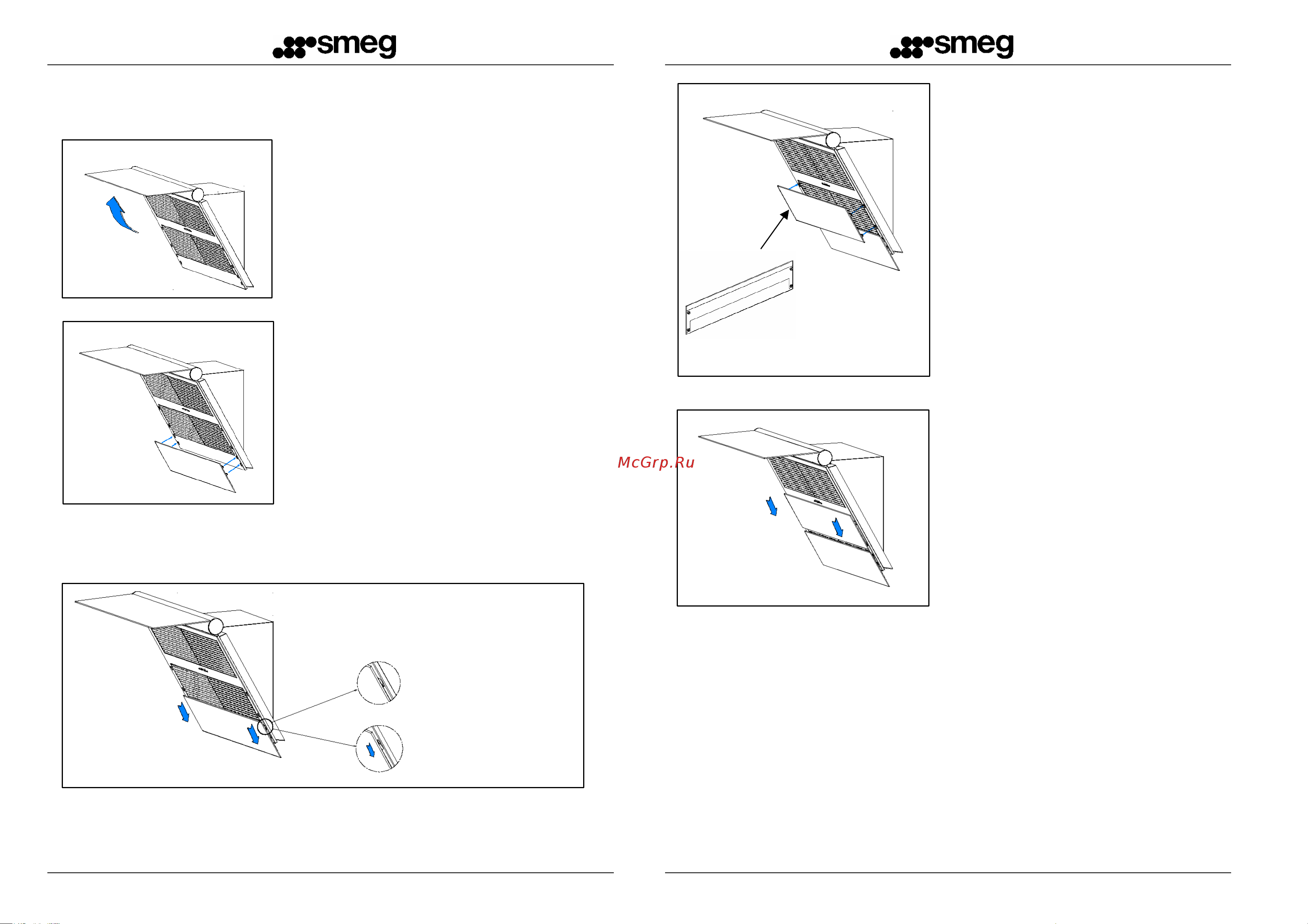

Open the hood upper glass panel (Fig.1).

Take the glass panel with the SMEG

logo close to the hood and centre the

four hinges in their seats (Fig.2).

Fig.3.1 - Initial position

(Pins high)

Fig.3.2 - Final

position

(Pins down)

Fig.1

Fig.2

Fig.3

Let the glass panel slide downwards

along the pin guides (Fig.3.2).

Get the glass panel with no logo and

place it near the hood

, centre the

four pins in the remaining four hood

seats (Fig.4).

(2) For proper positioning, check the position of

the metal frame on the back (Fig.4.1).

Let the glass panel slide along the

pin guides (Fig.5 and Fig.3.2)

Fig.4

Fig.5

Fig.4.1 – Rear

view.
