Removal of filter panels

EN

03

NB.: To remove the upper panel pair, remove the glass panels as described on page 2 .

EN

04

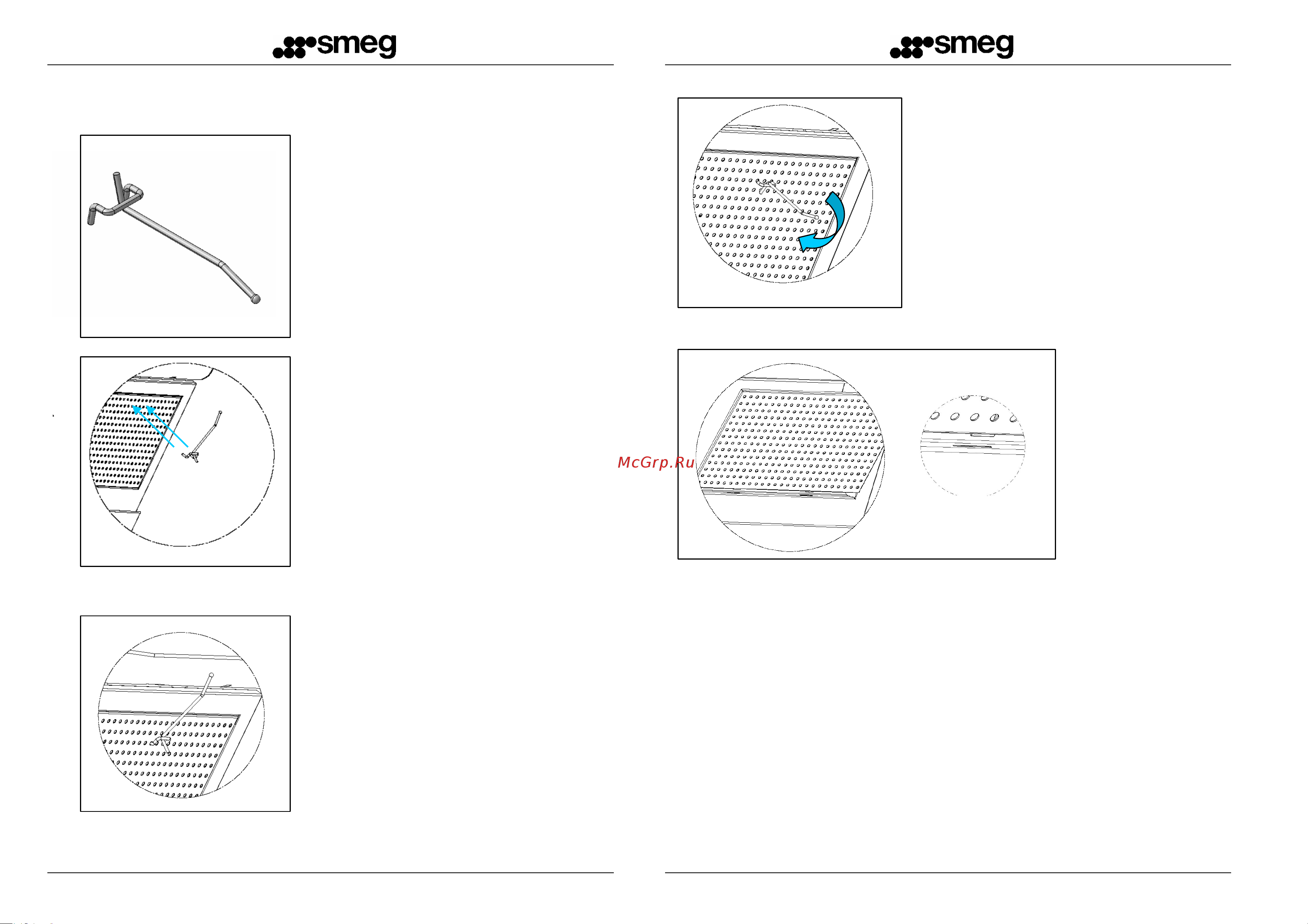

Fig.5

To remove the filters, use the

key included in the supply

(Fig.5).

Insert the key prongs in the holes on

the upper central part of the panel

(Fig.7) .

Fig.6

Fig.7

Place the key as shown in Fig.6.

Fig.8

Fig.9

Pull the panels up

to remove them

(Fig.9).

Turn the key downwards

and pull (Fig.8).
