Installation of the filter panels

Adjustment of glass-closed position

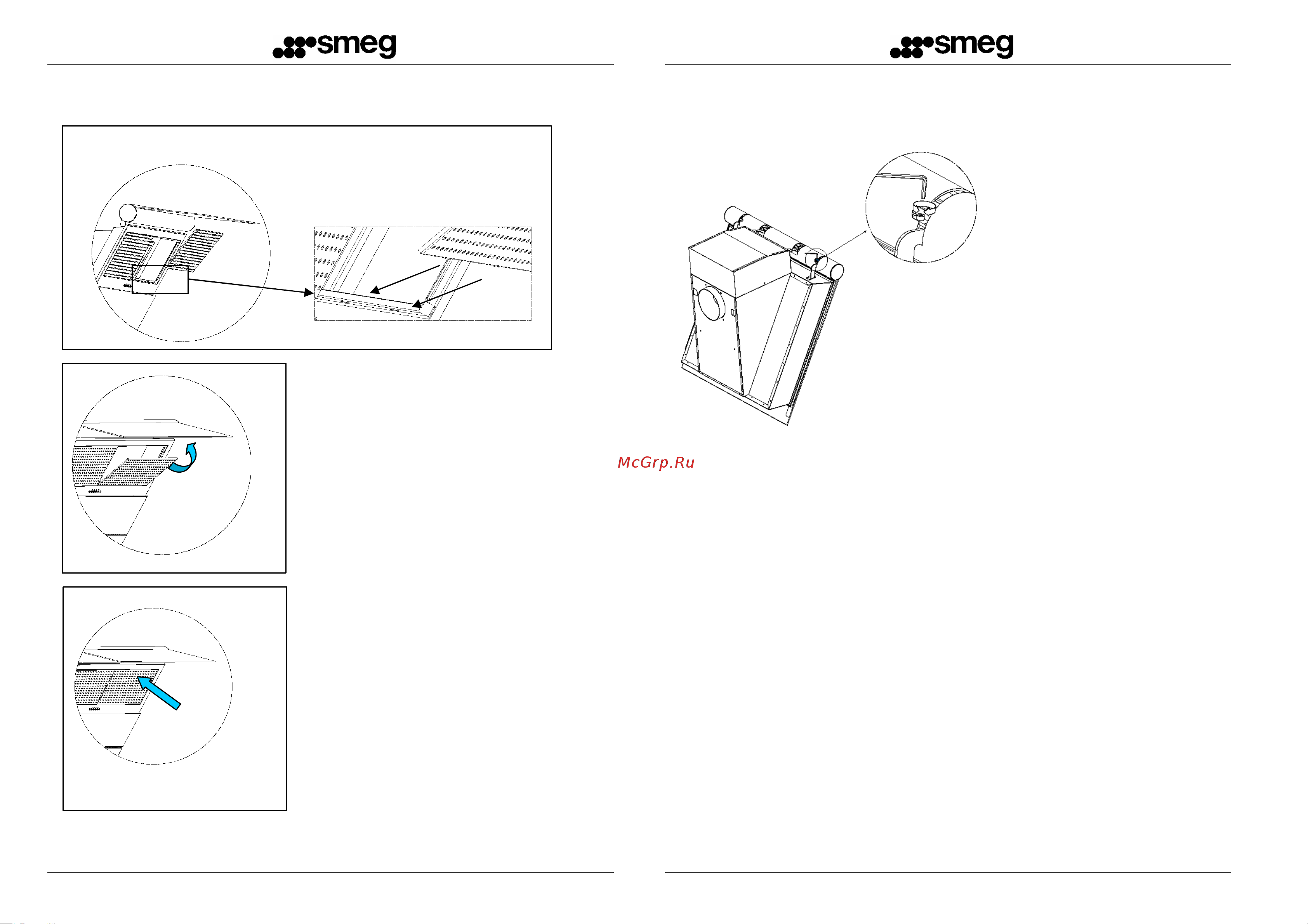

Fig.10

Take the panels close to the hood.

Insert the filter pins in the seats as

shown in Fig.10

Rotate the panels and take them

close to the hood (Fig.11 and

Fig,12).

Fig.11

Fig.12

Adjust the glass closed position after installing the hood.

Adjust the closing position of the glass by loosening/tightening the

adjustment screws.

Adjust the LH and RH sides.

Use a size-3 Allen key for the adjustment (Fig.13).

Fig.13
