3) CHANNEL SELECTOR ~ BEEP

CHANNEL SELECTOR:  and  on front panel

These buttons allow increasing or decreasing a channel. A «beep» sounds each time

the channel changes if the BEEP function is activated.

BEEP Beep on changing the channel, buttons etc.

Beep function enable : turn on the power while pressing the  (up) button.

Beep function disable : turn on the power while pressing the  (down) button.

4) CH9/19 ~ F

CH9/19 BUTTON

Channels 9 and 19 are automatically selected by pressing this button. A push activates

channel 9. A second push activates channel 19. A new push returns to the previous

channel.

F - FREQUENCY BAND SELECTION

(conﬁguration: EU ; PL ; In).

The frequency bands have to be chosen according to the country of use. Don’t use

any other conﬁguration. Some countries need a user’s licence.

See table page 50.

Proceeding: switch off the transceiver. Keep the key F pressed and switch on again.

and the letter corresponding to the conﬁguration are blinking.

- In order to change the conﬁguration, use the  and  keys on front panel.

- When the conﬁguration is selected, press 1 second on the F key.

and the letter

corresponding to the conﬁguration are continuously displayed, a beep sounds. At

this point, conﬁrm the selection by switching off the transceiver and then switching

it on again. See the conﬁgurations / frequency bands table at page 47 to 48.

5) DISPLAY

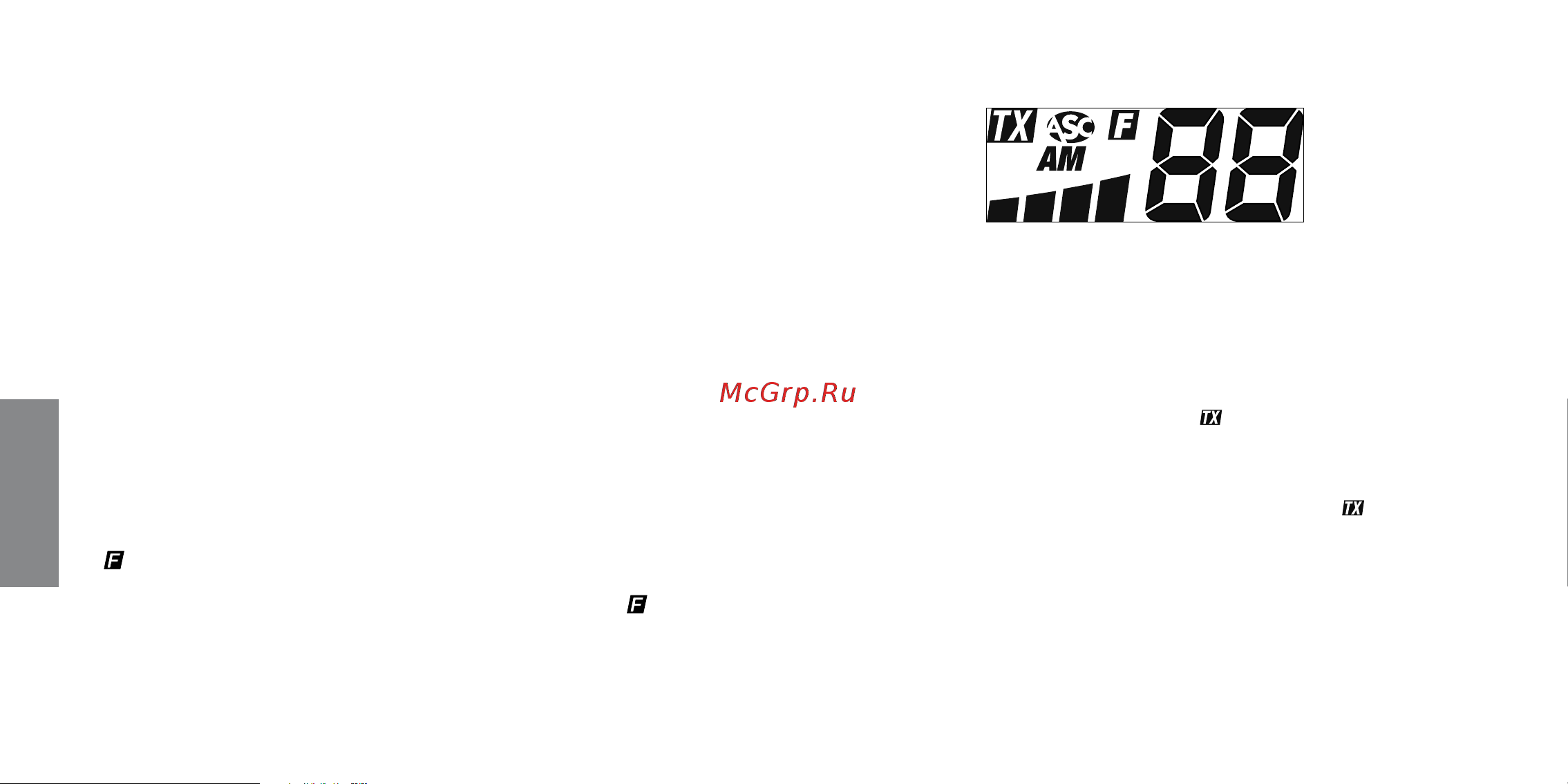

It shows all functions:

The BARGRAPH shows the reception level and the output power level.

6) 6 PIN MICROPHONE PLUG

The plug is located on the front panel of the transceiver and makes the setting of

the equipment into the dashboard easier.

See cabling diagram page 48.

7) PTT

Transmission key, press to transmit a message, is displayed and release to listen

to an incoming communication.

TOT (Time Out Timer)

If the PTT key (8) is pressed for more than 5 minutes, channel and blink, the trans-

mission ends until the PTT key (8) is released.

ANL FILTER (Automatic Noise Limiter)

The transceiver is equipped with an automatic ﬁlter which reduces back ground

noises and some reception interferences.
