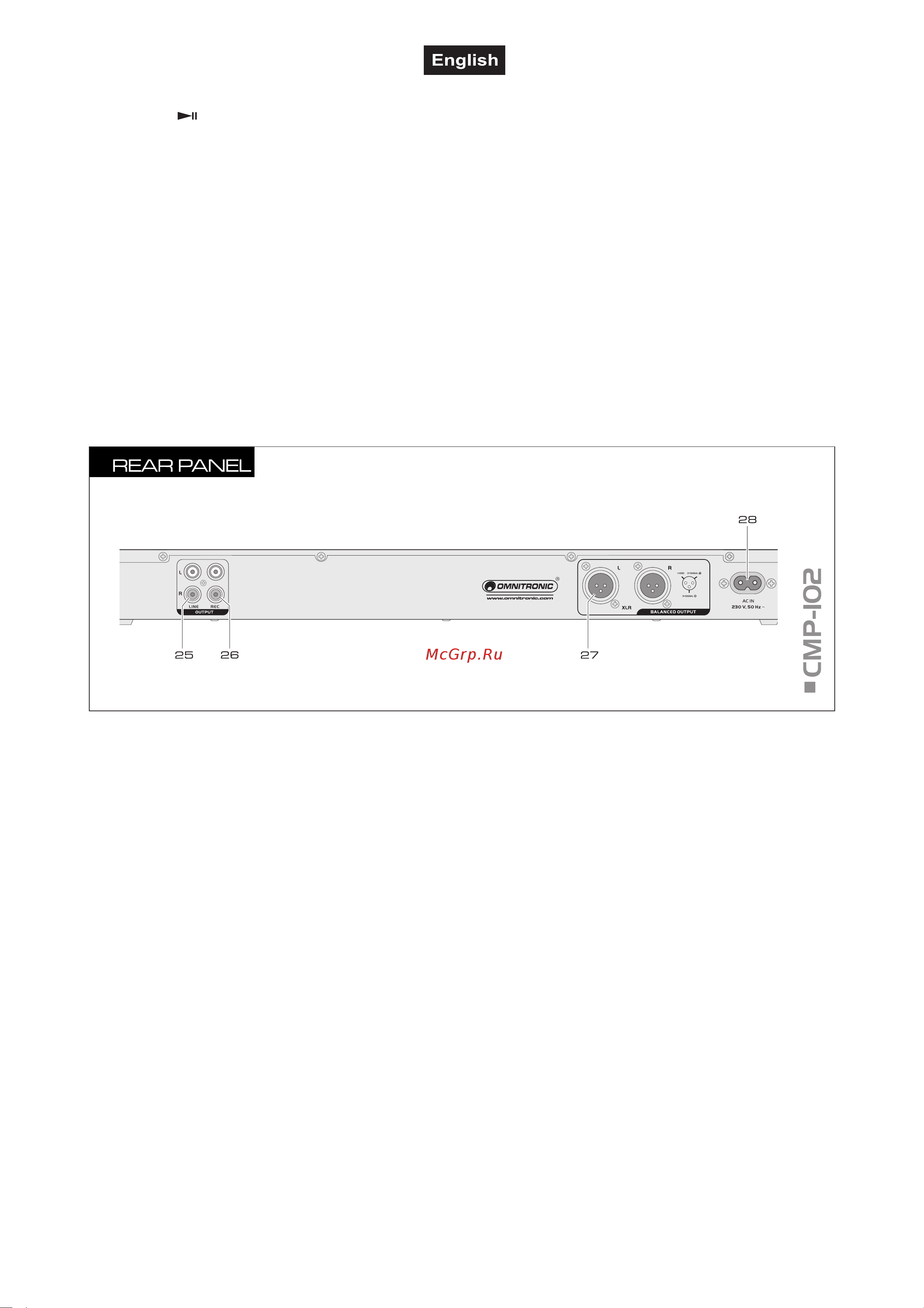

Line output, unbalanced

Stereo master output (unbalanced RCA) for connecting

an amplifier, a mixer or other units with line level inputs.

26 Recording output

Stereo output (RCA) for connecting a recording unit. The

recording level is independent of the position of the

master control.

Line output, balanced

Stereo master output (balanced 3-pin XLR) for

connecting an amplifier, a mixer or other units with line

level inputs.

28 AC connection

Plug in the supplied power cable here.

Button

Switches between play and pause. During playback the

blue LED lights, in pause mode it flashes.

19 Buttons REV () and FWD ()

Buttons for fast forward/reverse in play mode and

framewise search in pause mode:

•REV (

): reverse

•FWD (

): forward

20 Button PITCH

Activates/deactivates the rotary control PITCH. With the

control activated, the green LED will light up.

Headphones input

3.5 mm jack for connecting stereo headphones.

22 Play/pause mode

23 Title number

Time indication

• Audio CD: elapsed, remaining title or total remaining

time indicated in minutes, seconds and frames

• MP3 CD: elapsed or remaining title time indicated in

minutes, seconds and frames
