SCREW
SCREW

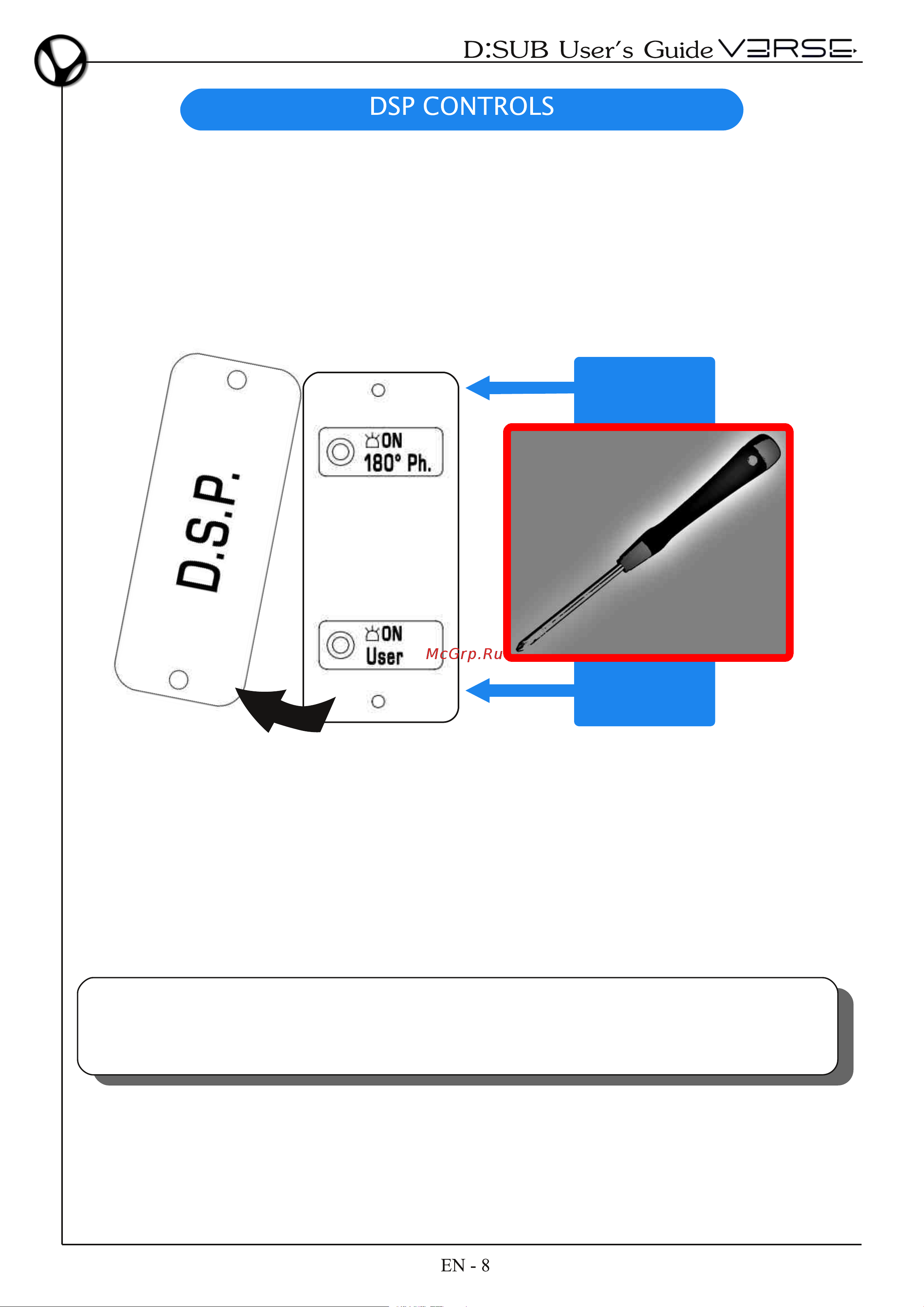

All the D:SUB series speakers are equipped with a powerful DSP (Digital Signal
Processor) which manages the entire signal processing flow. Some of the advanced
functions are ready to use via the simple interface made out of LED-lighting
switches, accessible when removing the "DSP" panel as shown in the figure. Every
function, described below, can be activated pressing the proper switch. When the
LED is on the DSP function is activated.
The list of LED-switches follows with a description:
- 180° ph.: invert the phase of the input signal.
- User: activates the "user settings", prepared with the proper software editor,
D:SP EDITOR sold separately. Whenever the previous setting is not adequate to
the peculiar use case, it can be deactivated, switching back to the factory
settings.
Note: The "User" preset is not set by factory, which means the speaker
configuration remains the same either the User LED is turned On or Off,
until a user setting is not configured.
Содержание
- Important notes 2 overview controls and connections dsp controls 8 powercon connections 9 rs 485 connections 1 safety recommendations 2 usage suggestions 3 technical specification 14 block diagram 15 3
- Open systems for open minds 3
- Technology 5
- Configuration 1 2 channels 1 sub connection 11
- Norme di installazione ed uso presentazione controlli e connessioni controlli dsp 8 connessioni powercon controllo remoto rs 485 1 suggerimenti d uso 3 specifiche tecniche 14 schema a blocchi 15 19
- Open systems for open minds 19
- Amplificatori digitali 21
- Tecnologia 21
- 180 ph inverte la fase del segnale in ingresso 26
- In dettaglio i due pulsanti con led sono 26
- Nota il preset utente non è programmato precedentemente all acquisto perciò la configurazione della cassa rimane identica sia che il led user sia acceso o spento questo finché un setting utente non viene configurato 26
- Svitare 26
- Configurazione 1 connessione a 2 canali 1 sub 27
- Attenzione sebbene si utilizzino comuni cavi ethernet la rete digitale d sp verse non e di tipo ethernet e dunque non e possibile collegare i diffusori d sub a dispositivi ethernet e invece necessario utilizzare la apposita interfaccia verse d sp interface usb 485 disponibile opzionalmente 29
- Open systems for open minds 35
- Wichtige hinweise übersicht regler und anschlüsse dsp regler 8 powercon verbindungen rs 485 verbindungen 11 sichereitsempfehlung für distanzstangen 12 anwendungs vorschläge 13 technische daten 14 block diagramm 5 35
- Technologie 37
- 180 ph invertieren der phase des eingangssignals user aktiviert die mit hilfe des software editors erstellten user settings der d sp editor ist separat erhältlich schaltet man die funktion aus werden automatisch die werks einstellungen aktiviert 42
- Abschrauben 42
- The list of led switches follows with a description 42
- Konfiguration 1 2 kanäle 1 sub verbindung 43
- Erhältlichen verse d sp interface usb 485 45
- Warnung auch wenn das digitale d sp verse netzwerk mit normalen ethernet kabeln realisiert wird handelt es sich dabei um kein echtes ethernet netzwerk deshalb ist es nicht möglich d sub lautsprecher an übliche ethernet geräte anzuschließen das ganze funktioniert ausschließlich mit dem optional 45
