VERSE DSUB 18 [11/52] Configuration 1 2 channels 1 sub connection
![VERSE DSUB 18 [11/52] Configuration 1 2 channels 1 sub connection](/views2/2007788/page11/bgb.png)
The Powercon connectors make the system very practical and, thanks to the LINK
OUTPUT on each enclosure, avoid the problem of having to run a power feed to each
element.
All VERSE Systems are provided with special customized cables made of a pair of
powercons and balanced XLR connectors. Therefore it is possible to provide for
signal and power a VERSE D:SUB from another VERSE D:SUB or a VERSE D:SIDER.
Subwoofers feature a double output link to simplify the left and right audio channels.
Please note: the purchase of a spare VERSE speaker (i.e: not buying it in a -k system)
doesn't include the customized cables.
The customized cable provided with
VERSE speakers.
Detail of a Powercon
main input

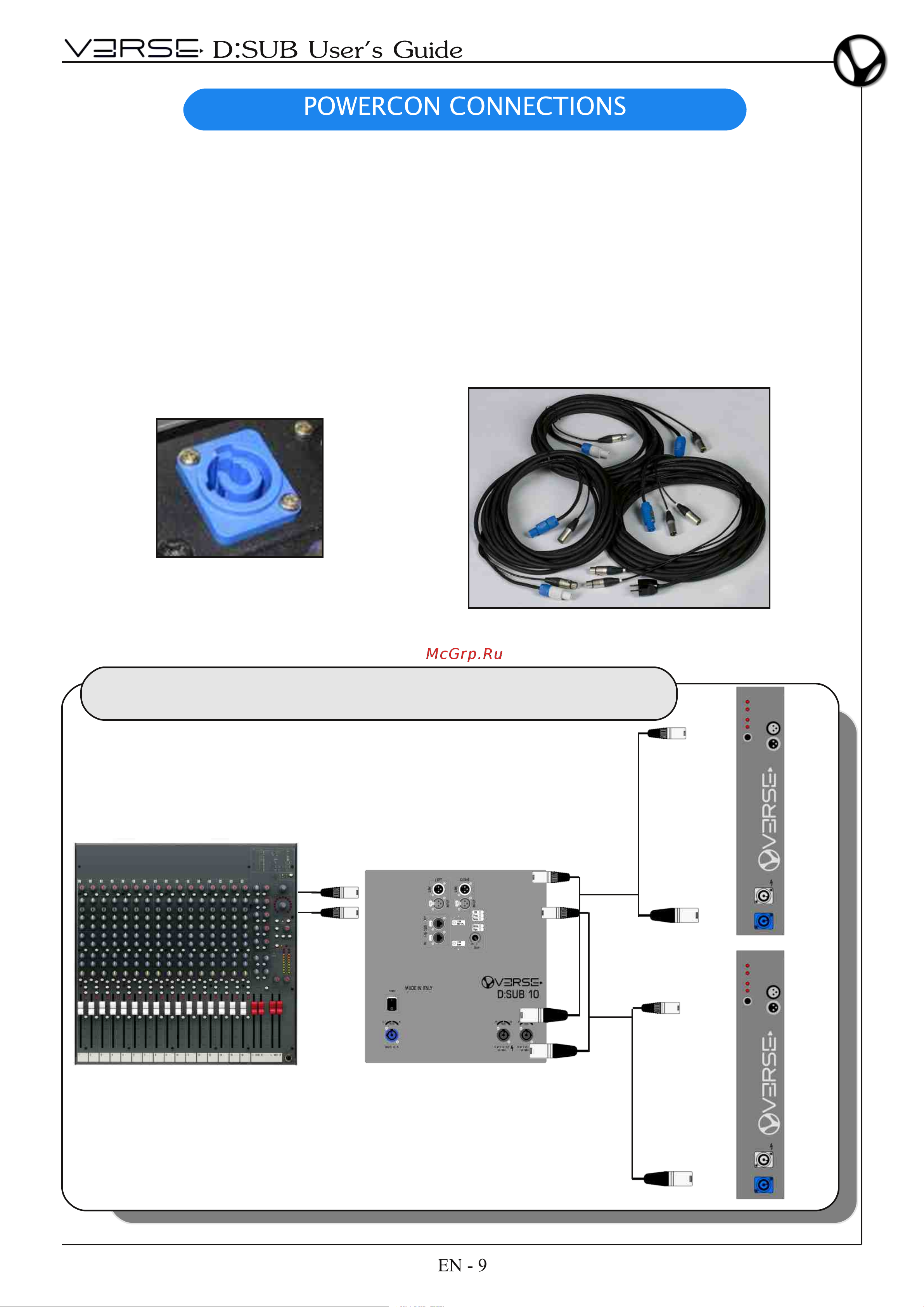

Configuration 1. 2-channels 1-SUB connection
