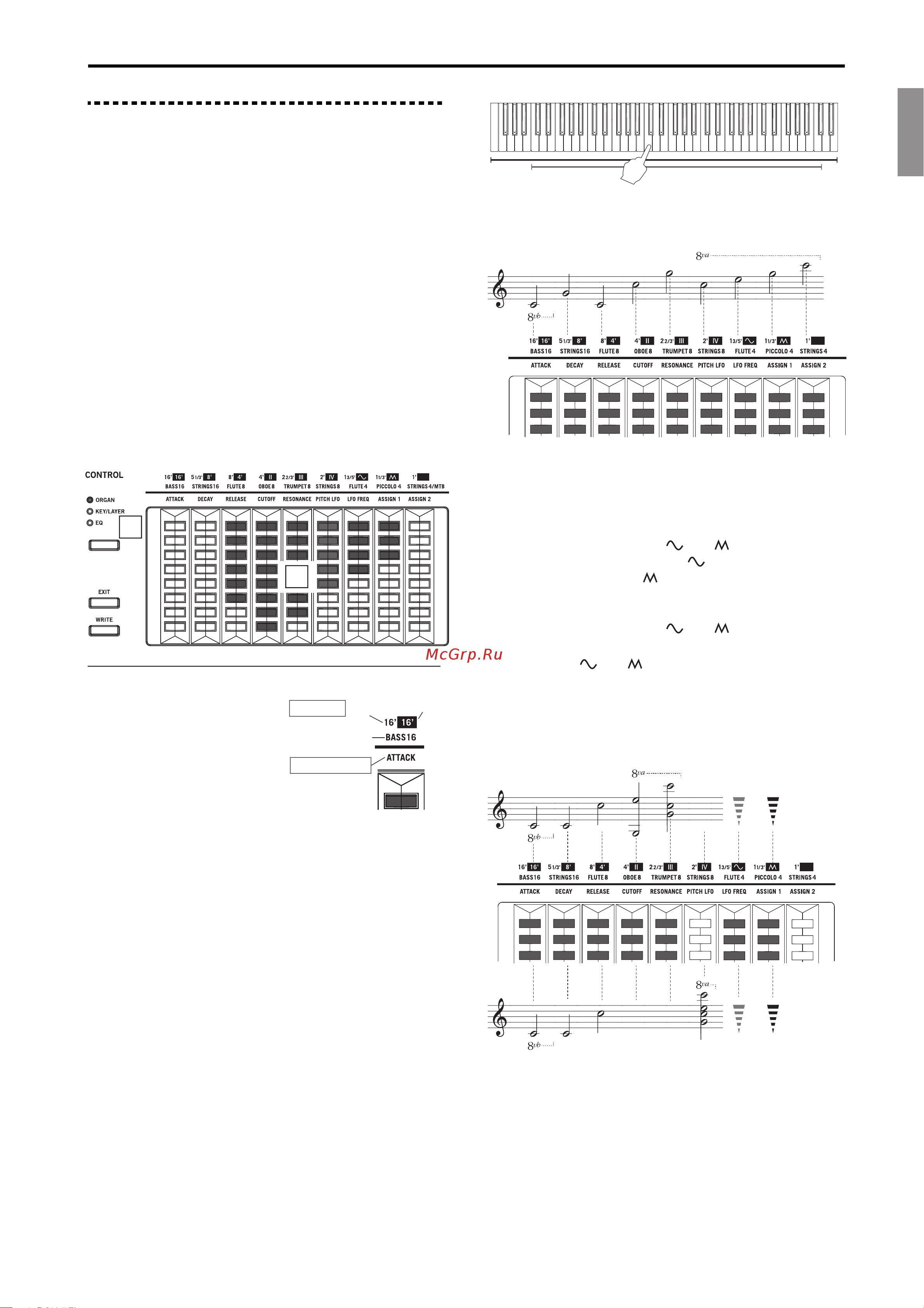

![Vox Continental 73 Keyboard [15/27] English français deutsch español](/views2/2007916/page15/bgf.png)
EnglishFrançaisDeutschEspañol
En-15
Detailed Functions 7. Touch controls
7. Touch controls
Use the touch controls to control the organ drawbars, filter and
attack time for the synthesizer, and the overall EQ settings for
all parts.
1: CONTROL button, LEDs
This selects the target settings to control using the touch
sensors.
ORGAN: The touch sensors will operate as drawbars and
switches for the organ sound.
KEY/LAYER: The touch sensors will control the sound of the
KEY/LAYER part.
EQ: The touch sensors will control the nine-band equalizer.
This setting affects the sound of all parts.
2: Touch sensors
Touch the touch sensors with your fingers to control the
parameters that you have selected using the CONTROL
button. You can control more than one sensor at the same time.
ORGAN
The touch sensor will operate
differently depending on the type
(CX-3, VOX or COMPACT).
The diagram at right shows the
pitch and other information listed
above the touch sensors for each
organ type.
Refer to page 8 for how to use the touch sensors.
Note: The settings shown here are saved when a scene is
saved.
1) CX-3
The nine drawbars are used to create basic sounds for the
CX-3. Each drawbar can be used to add overtones to the basic
sounds.
The drawbar pitches are listed below.
16', 5-1/3', 8', 4', 2-2/3', 2', 1-3/5', 1-1/3', 1'
UPPER (the upper part of the keyboard) and LOWER (the
lower part of the keyboard) each use their own drawbar
settings. Switch between the two with the UPPER/LOWER
button. (See “UPPER/LOWER button”, page 13)
Note: When a drawbar is set to 0, the topmost LED will dimly
light.
The following diagram shows the pitches for each drawbar
when pressing C4 on the keyboard.
2) VOX
The VOX drawbars differ for UPPER and LOWER. Switch
between the two with the UPPER/LOWER button.
(See “UPPER/LOWER button”, page 13)
On the upper part, use the five drawbars (16', 8', 4', II, III) to
add overtones, and use the and drawbars on the
right to adjust the overall tone. is a sine wave or a soft
sound, like a flute; and is a square wave or a bright
sound, like a reed instrument.
On the lower part, use the four drawbars (16', 8', 4', IV) to
add overtones, and use the and drawbars on the
right to adjust the overall tone.
Note: When the and drawbars are set to 0, they will not
produce sound.
Note: When a drawbar is set to 0, the topmost LED will dimly
light.
The following diagram shows the pitches for each drawbar
when pressing C4 on the keyboard.
1
2
CX-3
KEY/LAYER
ORGAN
VOX
COMPACT
73 key
E1 E7
61 key
C2 C7
C4
Base note
C4
Upper
Lower
Base note
C4
Base note
C4
