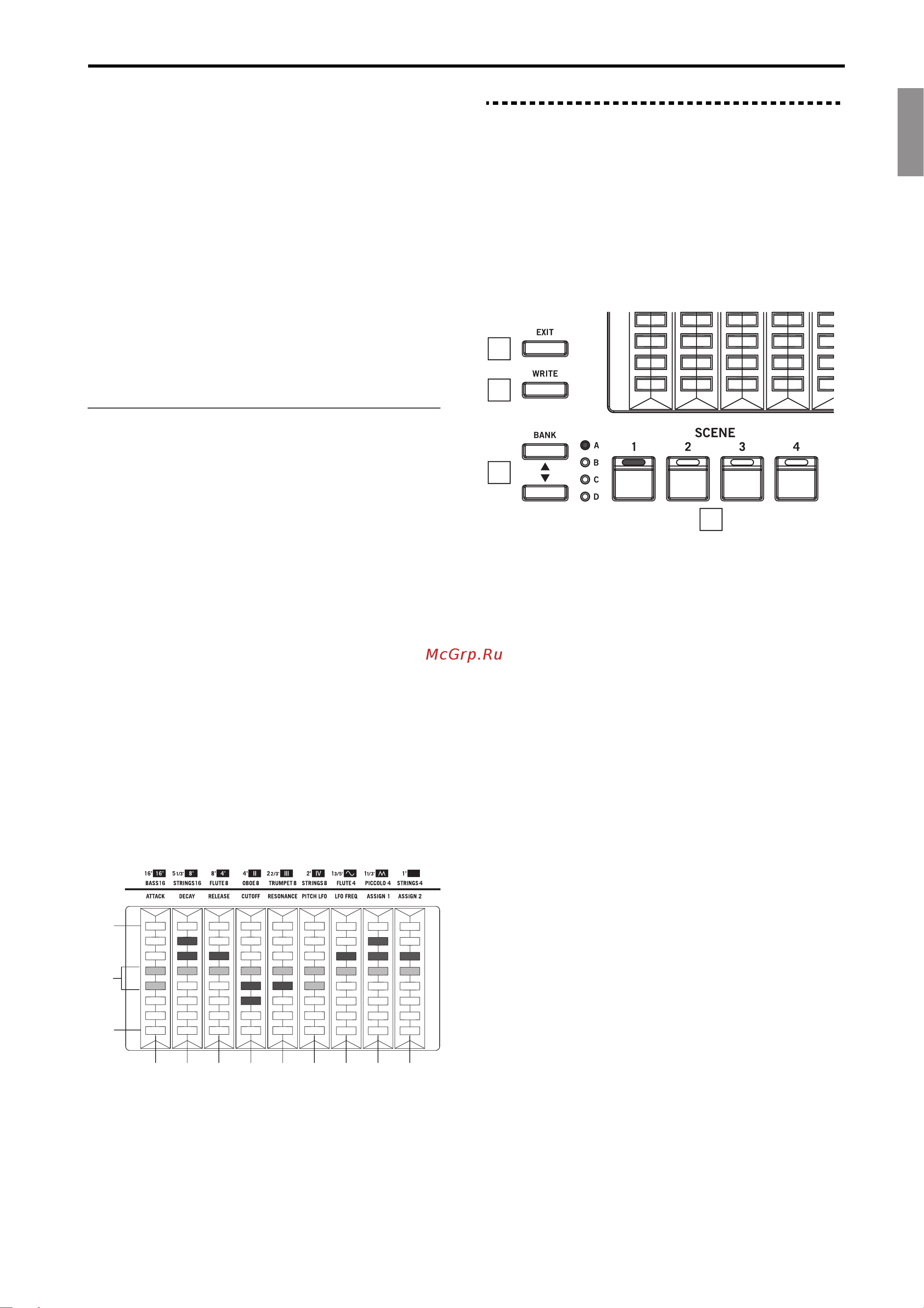

![Vox Continental 73 Keyboard [17/27] 6 pitch lfo](/views2/2007916/page17/bg11.png)
EnglishFrançaisDeutschEspañol
En-17
Detailed Functions 8. Scene select
LFO
(6) PITCH LFO
Adjusts how much the LFO makes the pitch vibrate.
(7) LFO FREQ
This sets the LFO frequency.
Note: When the value is 0 dB, the two LEDs in the center will
dimly light.
Assignable
(8) ASSIGN1
The assigned effect will differ for each sound.
(9) ASSIGN2
The assigned effect will differ for each sound.
Note: Some values are set as switches (when the top four LEDs
are lit, the value is “on”; and when the bottom four LEDs are
lit, the value is “off”) or as sliders.
EQ frequency band and gain
The nine-band graphic EQ is placed in the latter part of the
EFFECTS series, and applies to the VALVE DRIVE and stereo
out.
All of the equalizer bands are peaking (parametric) equalizers.
Turn the EQ button on.
63 Hz gain [dB] [–12.0…+12.0]
125 Hz gain [dB] [–12.0…+12.0]
250 Hz gain [dB] [–12.0…+12.0]
500 Hz gain [dB] [–12.0…+12.0]
1 KHz gain [dB] [–12.0…+12.0]
2 KHz gain [dB] [–12.0…+12.0]
4 KHz gain [dB] [–12.0…+12.0]
8 KHz gain [dB] [–12.0…+12.0]
16 KHz gain [dB] [–12.0…+12.0]
This sets the gain for each band.
Refer to page 19 for how to use the EQ.
Note: When the value is 0 dB, the two LEDs in the center will
dimly light.
Note: Although the EQ on/off and the settings made here will
not be saved in a scene, they will be saved when the power is
turned off, and will be recalled when the instrument is turned
on.
8. Scene select
Up to 16 sounds that are set on the VOX Continental can be
saved, and you can recall those settings instantly. These are
called “scenes”.
Settings that are saved:
Part select button, each sound part, touch sensors, and EFFECT
control (except for the EQ), octave and transpose settings
Settings that are not saved:
EQ, VOLUME knob, VALVE DRIVE knob and button,
DYNAMICS knob and button, CONTROL button, bend lever
1: BANK , buttons, LEDs
There are four scene banks, from A to D.
Press the BANK , buttons to select a bank.
2: SCENE 1, 2, 3, 4 buttons
Press the BANK , buttons to recall scenes 1–4 from the
selected bank.
The sound will switch to the settings that are saved for that
scene.
Note: If you change one of the settings listed above in “Settings
that are saved”, the currently selected SCENE button will
blink. Press the blinking SCENE button to undo the changes
and revert to the saved state.
3: WRITE button
This saves the current sound settings to a scene.
Refer to “Saving a Scene” (see page 11) for how to register a
scene.
Note: When you turn the power on, the scene that you had
selected before turning the power off will be recalled.
4: EXIT button
Use this button to cancel write operations, when making
system settings such as master tuning or MIDI channels, or to
escape the current operation. (See page 20)
0
12
63
125 250 500 1K 2K 4K 8K 16K Hz
-12
dB
1
3
4
2
