MIC
LINE
X-FADE
CUE
1
GAIN
CLIP
HF
MID
BASS
A
B

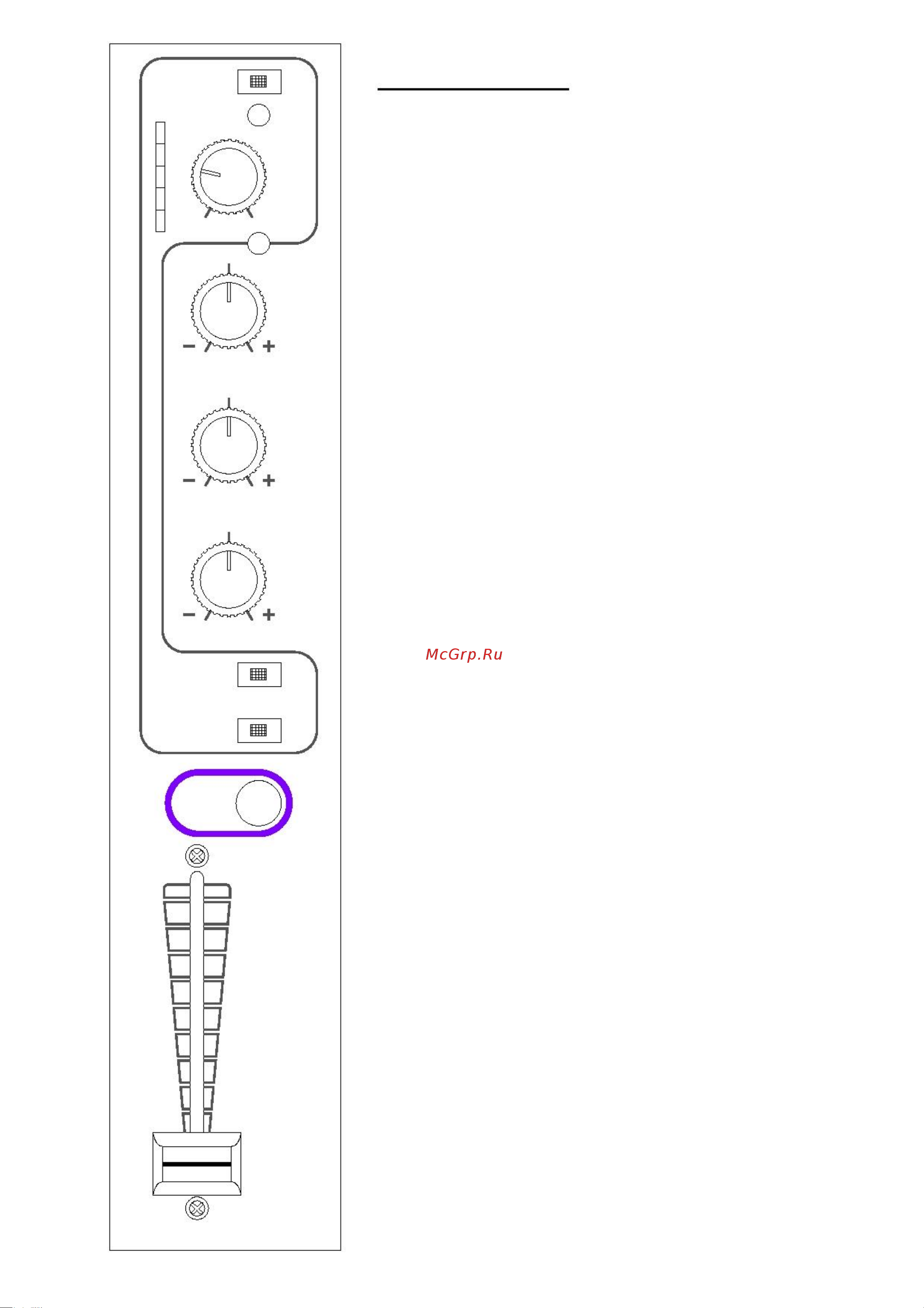

INPUT CHANNEL 1
Input Sources. This channel has a balanced low impedance low
noise microphone input on an XLR connector and a normal stereo
line input on twin gold plated RCA phono connectors.
Input selector switch selects the input used.
Button depressed selects Mic (XLR connector)
Button not depressed selects Stereo line input.
Blue and red l.e.d.s. and labels clearly show which input is in use.
Channel meter. This is a 5 segment l.e.d. meter and it displays the
signal level within the channel. The normal reading for this meter is
amber with occasional peaks into to the red.
Gain control. This sets the input gain level, and should be used in
conjunction with the rear panel gain trims. A gain trimmer is provided
for every input so that all input sources can be matched to the same
level. The control is then used to compensate for differences in track
levels.
Clip indicator. This is a red l.e.d that indicates when the channel
signal is just below clipping. If lit it means that the gain is set too high.
3 Band equalisation provides +5dB boost and -23dB cut @
HF 10kHz MID 1kHz BASS 100Hz.
The centre detent denotes the flat position.
X-Fade A and B. Rectangular push button switches with red and
green illumination. Depressing the switches routes the channel via
the VCA controlled crossfader and associated effects loops if
selected.
The channel signal may be routed to either end of the
X-fader.
The red and green colour coding is maintained throughout the
X-fader and associated effects loops to give clear visual indication of
routing status.
If neither button is depressed the signal is routed directly to the
output section.
Cue. A larger round illuminated push button is provided for cue
selection. When depressed the channel signal is fed to the cue buss.
Any number of sources may be selected simultaneously, the sum of
which will be available to the headphones monitoring section.
Fader. A 60mm channel fader (or rotary fader depending on what
fader option has been fitted ) is available to mix the various
channels as required.
