Frequency Response

Maximum SPL Output Level

Crossover Frequency

Sensitivity (dB SPL 1W/1mt)

Power RMS

Loudspeakers

Magnet Material

Nominal Impedence

Cabinet

Varnish

Height

Width

Depth

Weight

Power Supply

Amplification

Connections

Power output of the amplifier

Limiter

Protection

Cooling

K1m TOP

150-16000 Hz

123 dB

150 Hz

99 dB

500 W

9 x 3.5"

neodymium magnet

8 Ohm

Alluminium

Black scratch-resistant

91 cm

11 cm

12 cm

6,5 kg

AC 230/115 +/-10% 50/60 Hz

Classe D Amplifiers

Speakon

1000W (1KHz, 1% THD)

Yes, limited to 500 W

Termal and shot-circuit

Temperature controlled fan

K1m SUB

45-150 Hz

122 dB

150 Hz

92 dB

1000 W

12"

neodymium magnet

8 Ohm

Multy-layered birch

Black scratch-resistant

41 cm

33 cm

48 cm

20,9 kg

AC 230/115 +/-10% 50/60 Hz

Classe D Amplifiers

XLR

1000W (1KHz, 1% THD)

Yes, limited to 1000 W

Termal and short-circuit

Temperature controlled fan

LOUDSPEAKERS

PHYSICAL

AMPLIFIER

ACUOSTIC

SPECIFICATIONS

ERJK s.r.l. Via Onorato,46 / 90139 Palermo (Italy) • Tel-Phone +39 091 331464 / 334746 - Fax +39 091 334950 • E-mail : info@erjk.com - Web : www.erjk.com

DATASHEET

LIVE SERIES

WHAT YOU CAN FIND IN THE KIT K1m :

n. 01 sub units K1m - n.01 travelling case for sub units

n. 01 top units K1m - n.01 connection stand between the top units and sub units

n. 01 travelling case for top units and connection stand - n. 01 power cable for the amplifier

n. 01 speaker cable between the sub units and the top units - n. 01 instruction manual

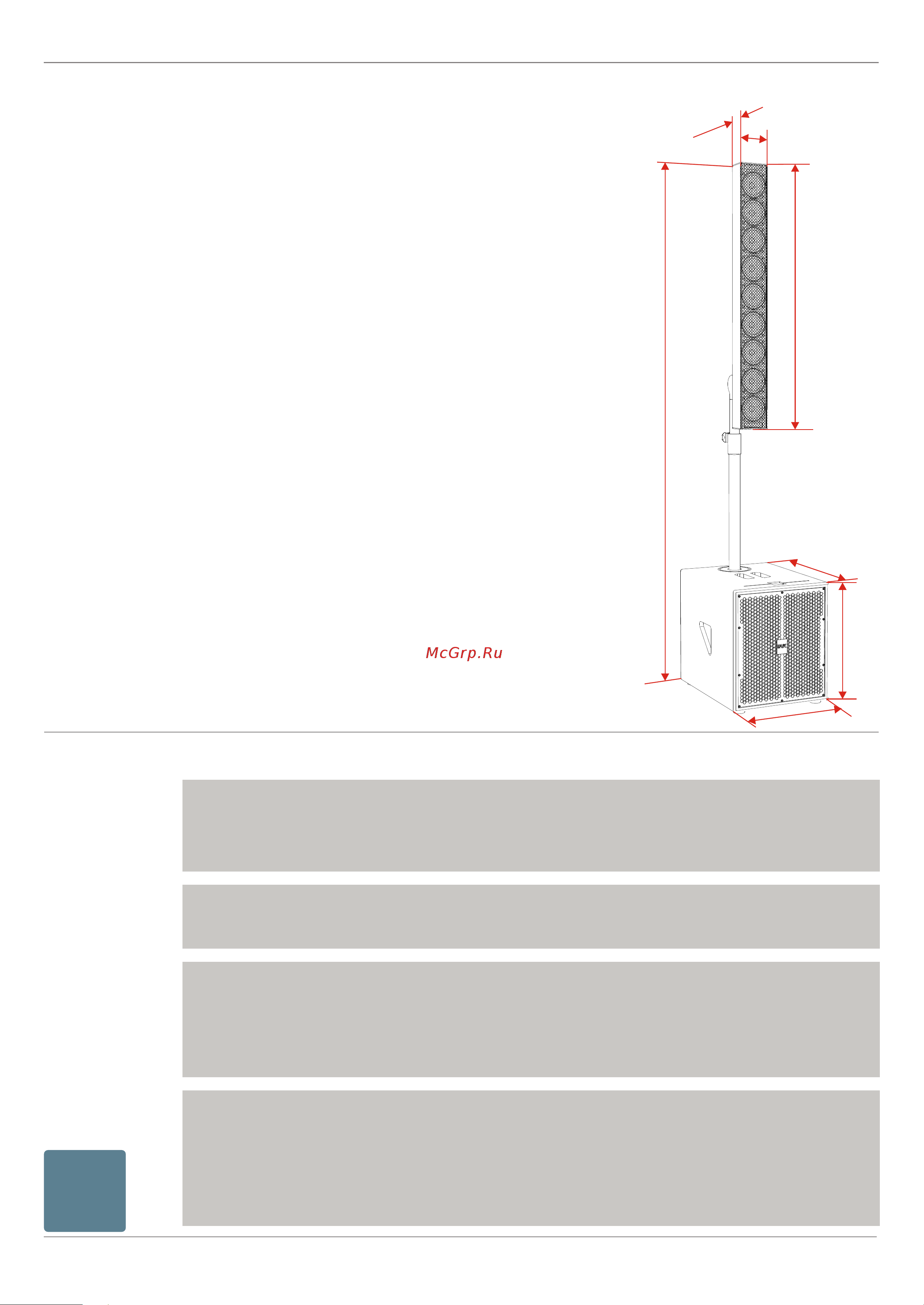

120 mm

110 mm

910 mm

440 mm

min. 2000 mm

max 2500 mm

450 mm

340 mm

erjk

( ACTIVE 2- WAY MONO SYSTEM )

K1m is a mono amplifying system, which is small sized and easy to carry system.

It is designed to meet the needs of musicians, singers, DJs and conference room speakers. It offers a high sound quality both in

closed and open spaces.

This is due to the detailed configuration of the “top” of the loudspeakers, which are placed in an array configuration. Guaranteeing

a uniform and powerful sound diffusion when used in small or average-size locations.

The system consists of a bass-reflex “SUB” speaker, equipped with a 12” woofer, two class “D” amplifiers with a total power of

2000 watts, controlled by a powerful DSP and a “TOP” speaker, containing nine 3.5” full-range transducers equipped with

neodymium magnets.

The first 1000 watts amplifier drives the 12” woofer, which is placed in the “SUB” speaker. The second 1000 watts amplifier,

whose output power is electronically limited to 500 watts, drives the “TOP” mid-range and high frequencies speaker.

DSP accurately handles the audio signal thanks to its functions of equalization, filtering, delay, limiter and protection functions,

without altering its phase. Thanks to the technology of FIR filters, furthermore, it enables users to choose between four preset

equalization settings, in order to adapt the system output in all situations. Such characteristics, together with the attention in

choosing all used components, marks the difference between a high standard product, which is meant for professional use, and an

average product.

The “TOP” unit for the mid-range and high frequencies consists of a vertical aluminum speaker, protected by a scratch-resistant

paint, in which nine 3,5” full-range transducers with neodymium magnets have been installed. The very thin shape of the box walls

avoids the acoustic diffractions, thanks to its extremely short distance between drivers, averaged in an array configuration. This

offers a wider sound diffusion, with a minimum loss of sound pressure in the whole front.

The institutions and the instructions elaborated from the ERJK Research and Development Department produce a sound of

incomparable quality for medium -high frequencies.

The 3.5” transducer of the “TOP” box is one of ERJK’s strongest elements. This product, exclusively designed, developed and

assembled by the company is used on all LIVE “k” products. The sound of any instrument or vocal tone is thus reproduced with

unreachable loyalty.

The “SUB” speaker is equipped by a 12” woofer and protected by scratch-resistant paint. The perfect efficiency of the bass-reflex

system is granted by the big the triangular openings placed in the front, and in the four corners of the speaker, which are equidistant

from the woofer.

This solution prevents internal turbulences to arise, and provides a uniform rear-load, which is perfectly phased with the driver.

Using such triangular openings ensures both physical strength as well as structural solidity.

The 12” woofer of “SUB” is a transducer, which is also an in-house product, equipped with a neodymium magnet and a wide range

4” coil, capable of standing very high incoming power.

The top is designed to support the “TOP” speaker through a metal flange, on which is screwed onto the support stand.

The K1m full weight is only 20.9 Kg.
