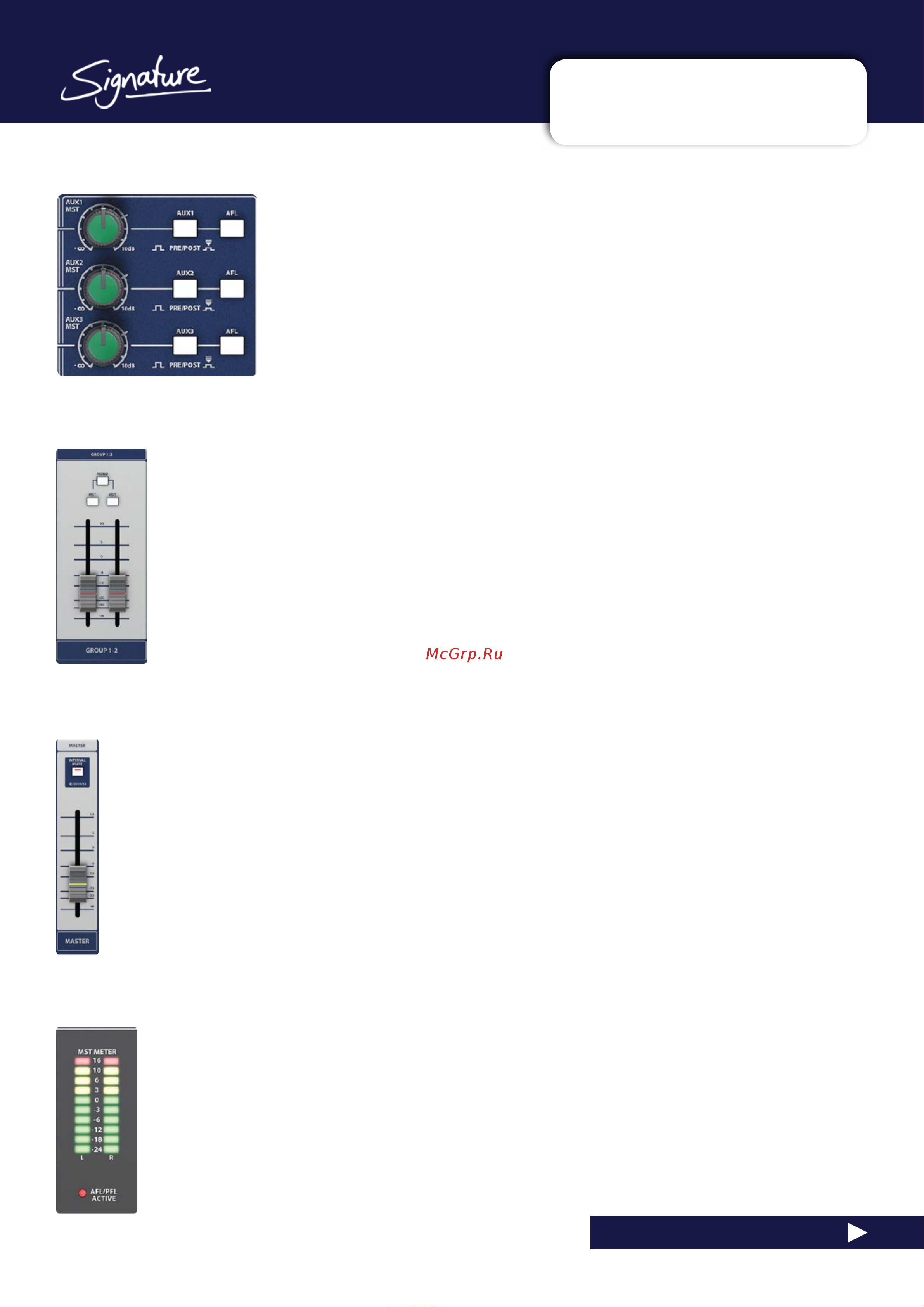

Group Output Masters
The Group Output Master channels control routing and output level for the Group busses.
For Signature 12 and 12MTK Group 1 and 2 outputs can be summed to mono and/or rout-
ed to the Master Stereo Output. Refer to Sections 4.6 and 5.6 for more detail.
Master Stereo Output
Controls the output level of the Master Stereo bus. Includes the Interval Mute function
(Mute all channels except the Stereo Playback Channel). Refer to Sections 4.7 and 5.7 for
more detail.
Metering
The meters on the Signature 10, 12, and 12MTK show Master Left/Right output level in
normal operation. Refer to section 6.0 for more detail. The AFL/PFL ACTIVE indicator is
below the main meters and lights when any AFl or PFL selection is engaged. See section
6.0 for more detail.
10, 12, 12MTK User Manual
2.2: PARTS OF THE CONSOLE
GETTING STARTED > PARTS OF THE CONSOLE
2.2: Parts Of The Console
Aux Output Masters
Aux (Auxiliary) Master output channels control the output level of the auxiliary
bus and global pre-fade/post-fader switching. AFL switching allows aux mas-
ter solos. Refer to Sections 4.5 and 5.5 for more detail.
