10, 12, 12MTK User Manual

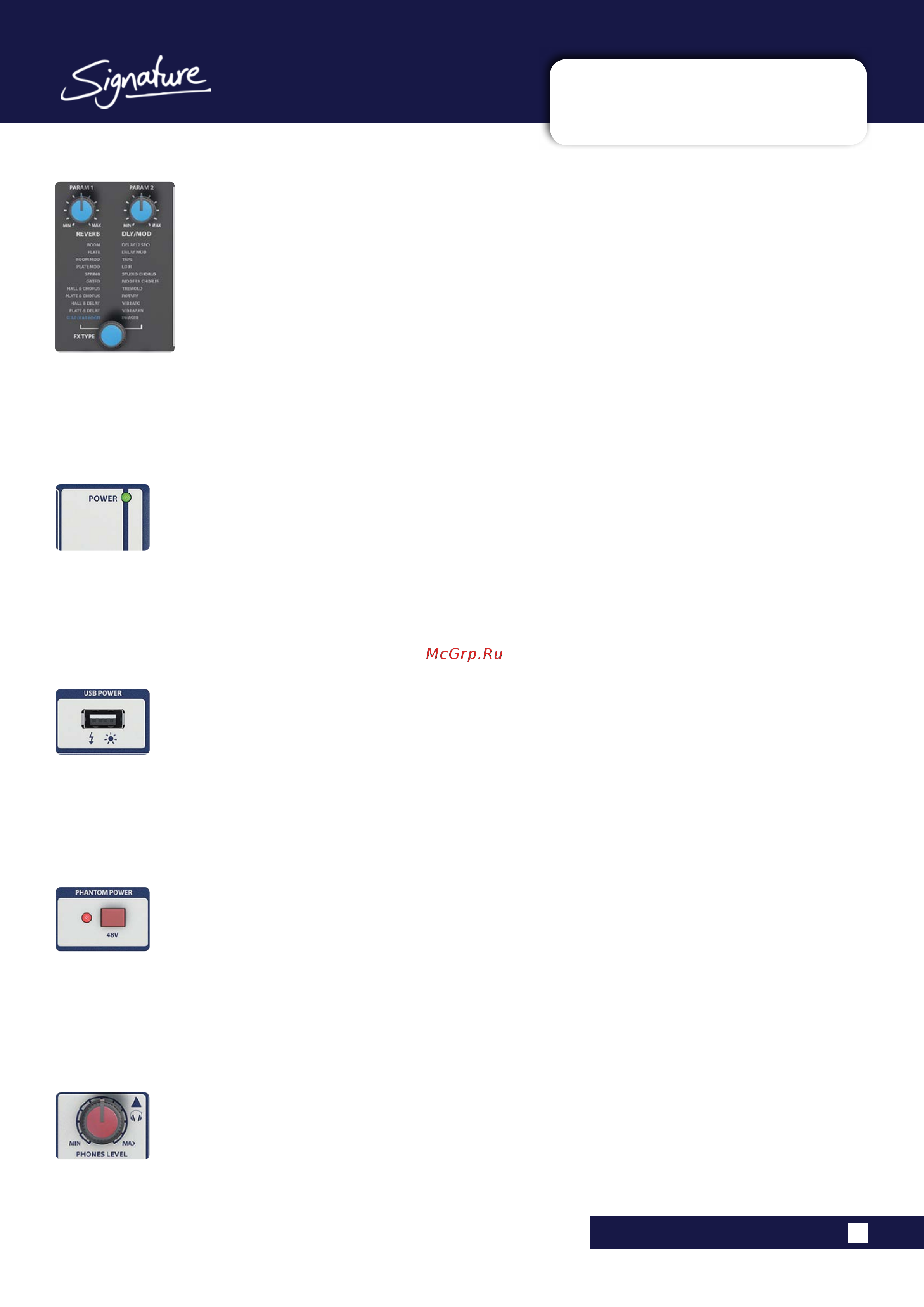

2.2: PARTS OF THE CONSOLE
GETTING STARTED > PARTS OF THE CONSOLE
2.2: Parts Of The Console
Power Indicator
Lights Green when console is powered. Power can be applied by connecting the power
cord.Itisgoodpractisetoturntheoutputleveldownrstincasethisaffectsanyconnect-
ed speakers.
USB Power Socket
For attaching powered/chargeable USB peripherals such as a USB-powered LED lamp, or
a mobile phone. Not for data. There is a 500mA current limit on this connection.
Global Phantom Power Switch
Applies 48V phantom power to the console microphone inputs so you can use Condenser/
Capacitor
microphones, active DI boxes, and so on. See section 5.1 for more detail.
Headphones Level Control
Level control for the monitoring output - either the Master Stereo Output, or the Solo Bus.
See section 6.0 for more detail.
Lexicon FX Control
Signature 10, 12, and 12MTK consoles have an internal Lexicon FX processor and send/
return bus for adding FX such as reverb, delay, Chorus, Rotary, LoFi, Tape emulation, and
more. Each Effect has two adjustable parameters. Refer to section 8.0 for more detail.
