14.5 SteadyClock

The SteadyClock technology of the OctaMic II guarantees an excellent performance in all clock

modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal, and pro-

vides it as reference clock at the word clock output.

Usually a clock section consists of an analog PLL for external synchronization and several

quartz oscillators for internal synchronisation. SteadyClock requires only one quartz, using a

frequency not equalling digital audio. Latest circuit designs like hi-speed digital synthesizer,

digital PLL, 100 MHz sample rate and analog filtering allow RME to realize a completely newly

developed clock technology, right within the FPGA at lowest costs. The clock's performance

exceeds even professional expectations. Despite its remarkable features, SteadyClock reacts

quite fast compared to other techniques. It locks in fractions of a second to the input signal,

follows even extreme varipitch changes with phase accuracy, and locks directly within a range

of 28 kHz up to 200 kHz.

SteadyClock has originally been de-

veloped to gain a stable and clean

clock from the heavily jittery MADI data

signal. The embedded MADI clock

suffers from about 80 ns jitter, caused

by the time resolution of 125 MHz

within the format. Common jitter values

for other devices are 5 ns, while a very

good clock will have less than 2 ns.

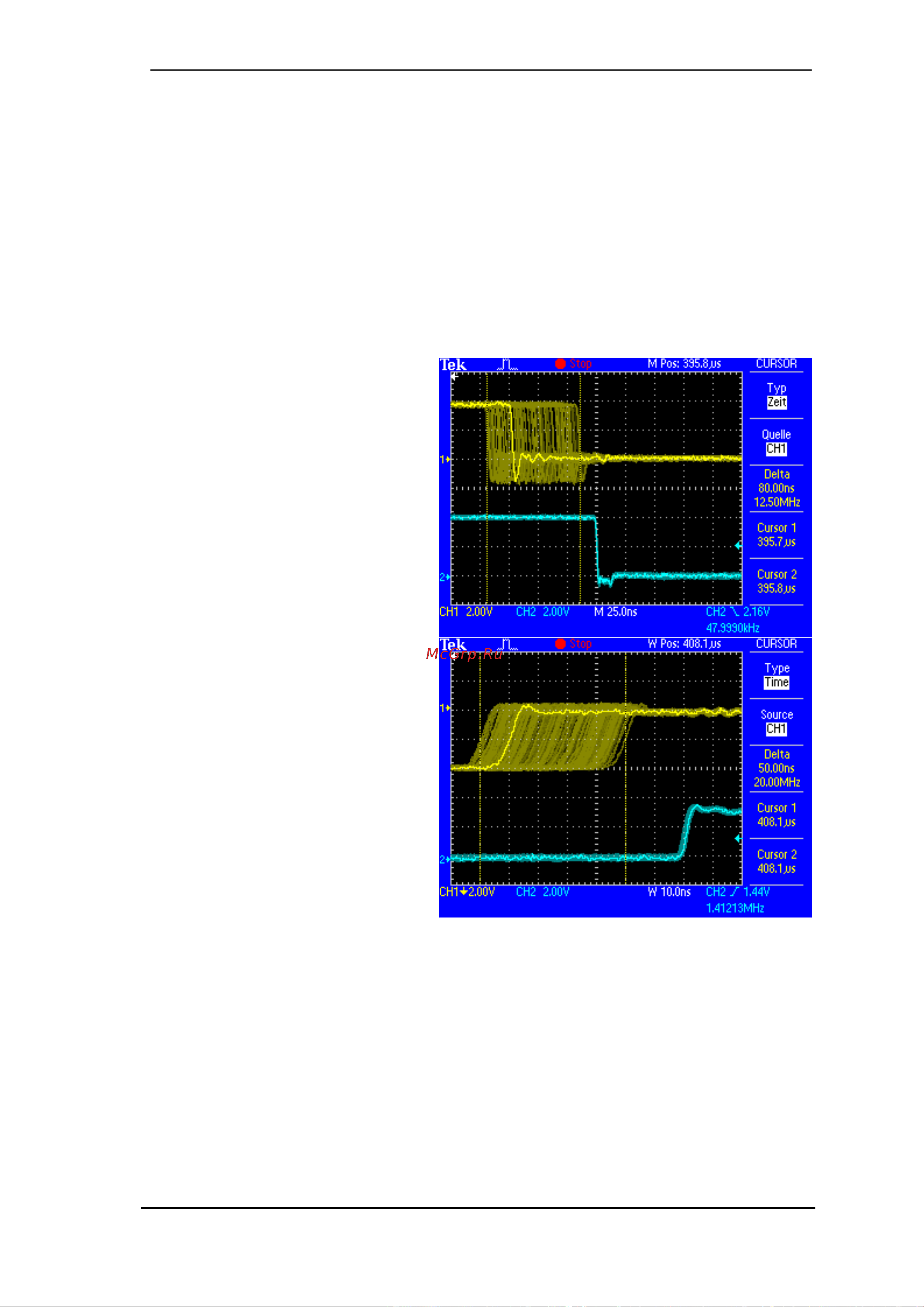

The picture to the right shows the

MADI input signal with 80 ns of jitter

(top graph, yellow). Thanks to Steady-

Clock this signal turns into a clock with

less than 2 ns jitter (lower graph, blue).

Using the input sources of the OctaMic

II, word clock and AES/EBU, you'll

most probably never experience such

high jitter values. But SteadyClock is

not only ready for them, it would handle

them just on the fly.

The screenshot to the right shows an

extremely jittery word clock signal of

about 50 ns jitter (top graph, yellow).

Again SteadyClock provides an ex-

treme clean-up. The filtered clock

shows less than 2 ns jitter (lower

graph, blue).

The cleaned and jitter-freed signal can be used as reference clock for any application, without

any problem. The signal processed by SteadyClock is of course not only used internally, but is

also used to clock the digital outputs ADAT and AES/EBU.
