Panel Descriptions

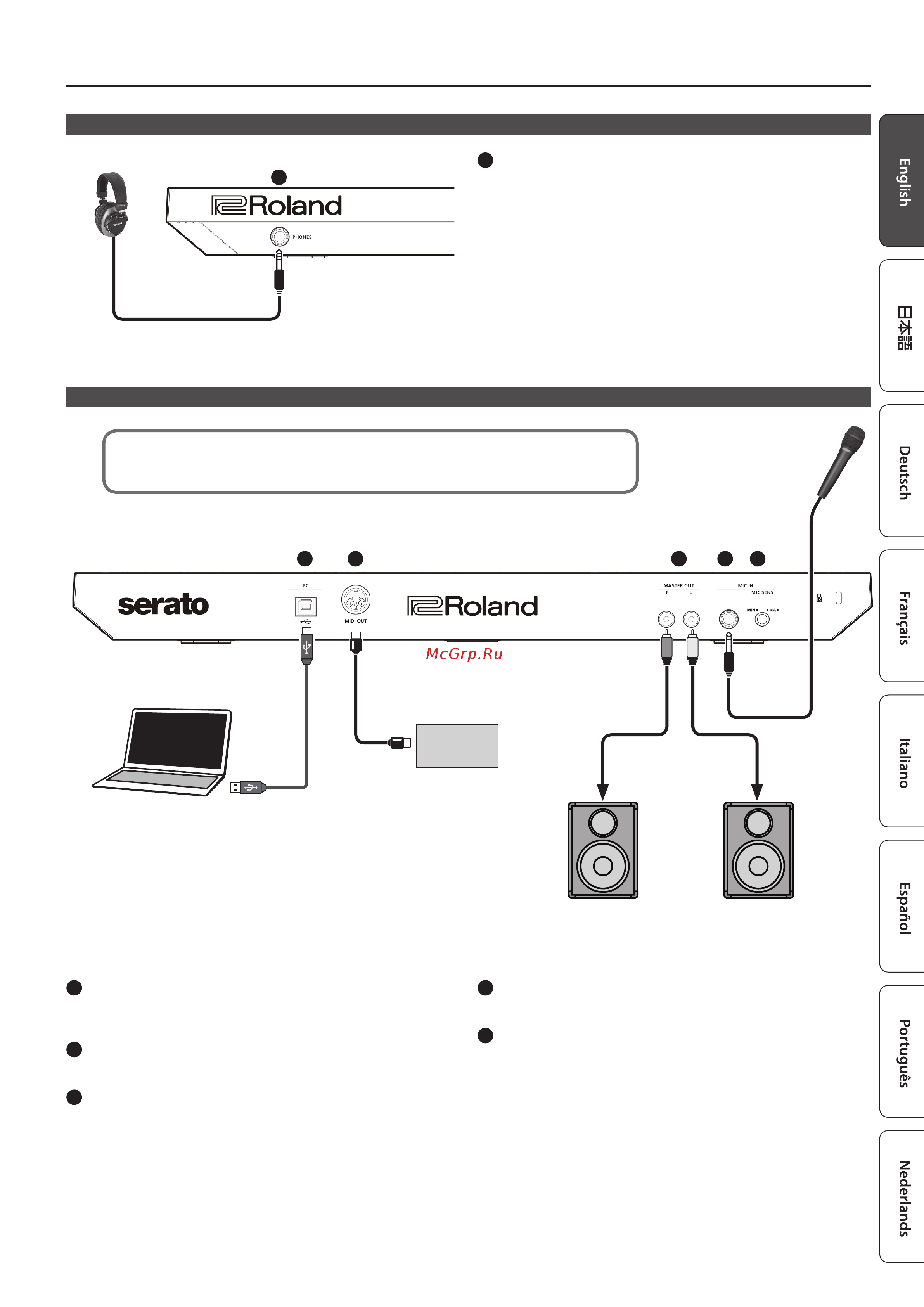

Rear Panel (Connecting Your Equipment)
MIDI device
Powered speaker, amp
Microphone
Computer
1
2
3
4
5
To prevent malfunction and equipment failure, always turn down the volume, and turn o all the
units before making any connections.
Front Panel
Headphones
1
1
[PHONES] jacks
Connect headphones here.
1
PC port
Use the included USB cable to connect this port to your computer.
When this is connected, power is supplied from the computer.
2
MIDI OUT connector
This outputs MIDI messages such as MIDI clock.
3
MASTER OUT L, R jacks
Connect your powered speakers or power amp here.
4
MIC IN jack
Connect your microphone here.
5
[MIC SENS] knob
Adjusts the mic input sensitivity.
