12.3 Remote Control Software

A free remote software for Windows and Mac OS X can be the RME website.

It can use any existing MIDI port within the system to perform remote control and status re-

quests of any number of supported RME units via a simple mouse click. Most appealing is the

combination with a HDSP(e) MADI, offering a direct control of the ADI-6432 via MADI. The re-

mote control software then uses a virtual MIDI port of the card, which directly sends and re-

ceives MIDI data via MADI.

Software download: http://www.rme-audio.de

, Downloads, MIDI Remote

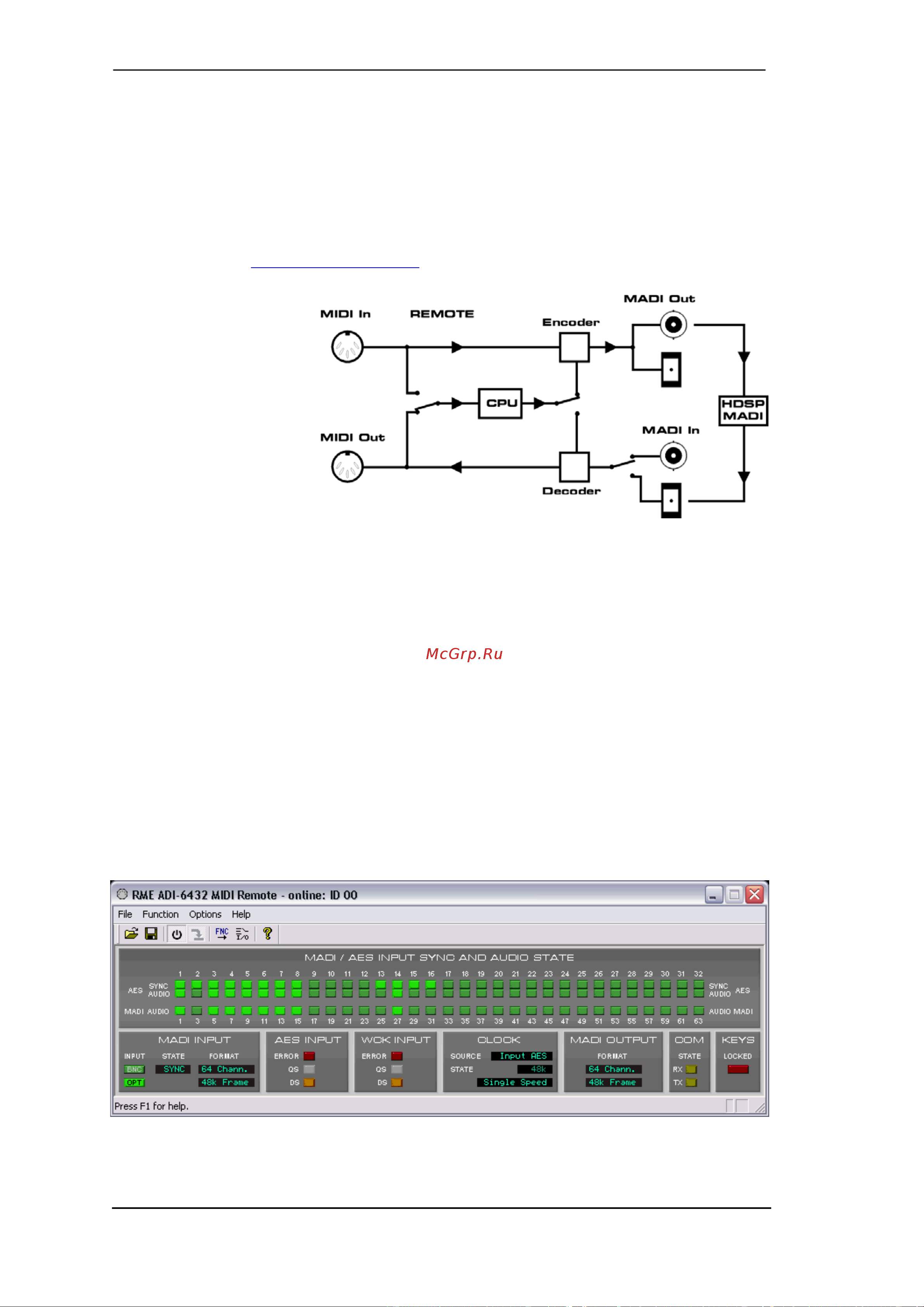

The block diagram shows

the signal flow in a MADI

remote controlled system.

MIDI commands from a

software on PC or Mac

travel via MADI to the MIDI

Out of the ADI-6432. At the

same time they reach the

6432's CPU. The MIDI sig-

nals of external devices

travel via MIDI In and MADI

Out back to the software,

together with the request

responses of the CPU.

Brief description of the Windows/Mac OS X Software MIDI Remote

The program includes an extensive English online help (F1). After the start first choose the

function ADI-6432 Front View in the menu Functions (also available via F4). Then select a

MIDI input and output via Options - MIDI I/O Setup.

Using the command Options – Start/Stop MIDI I/O the communication with the ADI-6432 is

started. The title bar of the program window shows the current state, like selected ID, online / no

response / offline.

Save Workspace as allows to store complete setups including all windows in a file, and to re-

load them at any time.

Send Single Set of Data allows an offline configuration of the ADI-6432, and uses a single

one-time transmission of all settings.
