RCF TT 08-A MKII [7/16] Rear panel

ENGLISH

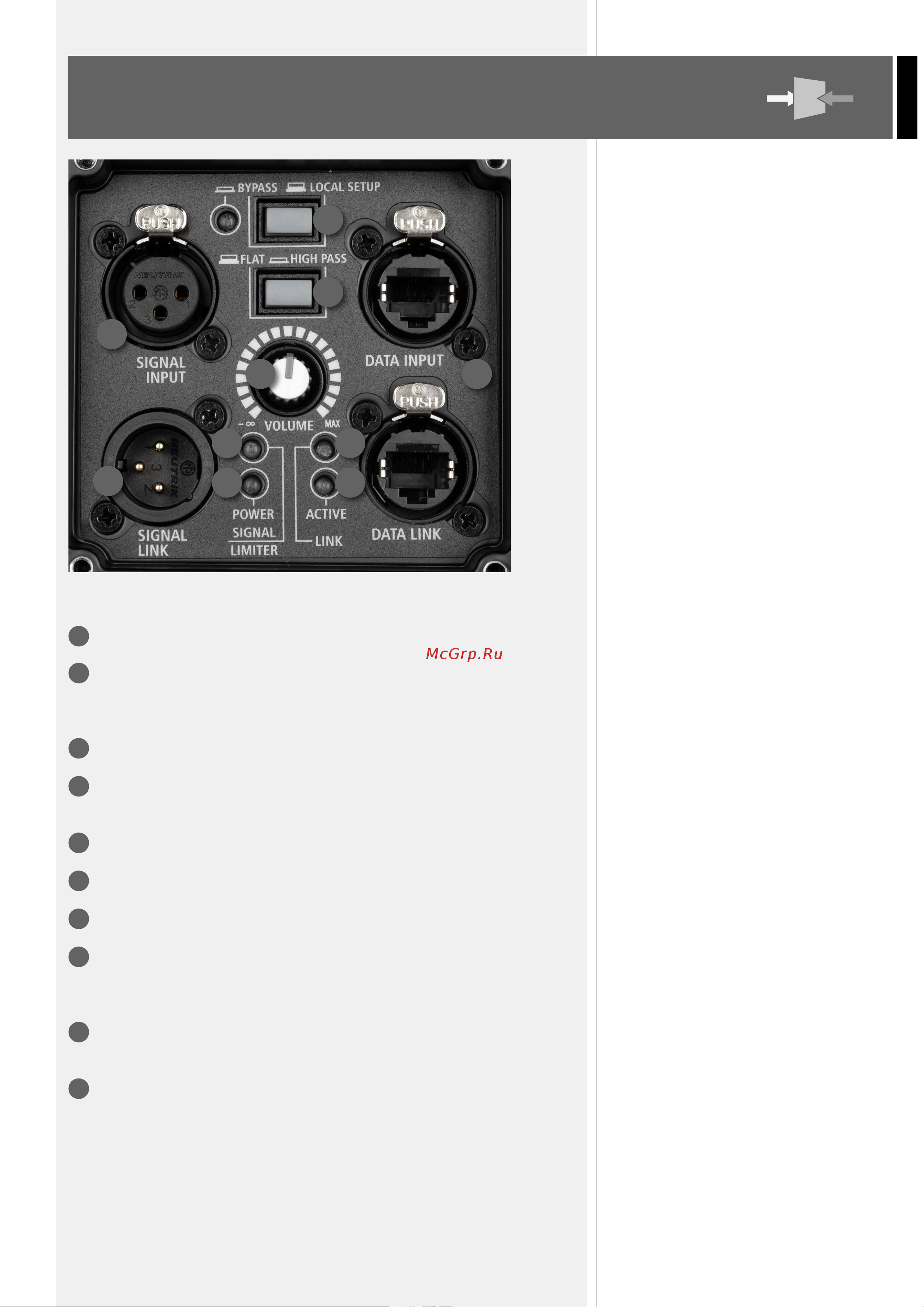

REAR

PANEL

FEMALE XLR INPUTS (BAL/UNBAL). The system accepts XLR input connectors.

MALE XLR SIGNAL OUTPUT. The output XLR connector provides a loop through for speakers

daisy chaining. The balanced connector is connected in parallel and can be used to send the

audio signal to other ampliﬁed speakers, recorders or supplementary ampliﬁers.

SYSTEM VOLUME KNOB

SIGNAL / LIMITER LED. The LED light is green when a signal is applied to the speaker. It turns

RED when the speaker compressor activates.

POWER LED. This green led is ON when the speaker is connected to the main power supply.

LINK LED. This LED turns on when the speaker is connected to RDNet.

ACTIVE LED. This LED blinks when the speaker is transmitting data over RDNet.

RDNET DATA INPUT AND DATA LINK. The RDNET IN/OUT PLUG SECTION features etherCON

connectors for the RCF RDNet protocol. This allows the user to completely control the speaker

using the RDNet software.

FLAT / HIGH PASS. Use the Flat / High Pass button if you want to apply a Flat or a High Pass

Equalization.

BYPASS / LOCAL SETUP. When pressed, the setup is loaded from the internal memory that

only RDNet can write. Every time the speaker is turned on, the last stored conﬁguration is applied.

When the button is released, the speaker uses its local setup and will not remember its last

RDNet setup when turned on again.
