RCF TT 08-A MKII [8/16] Installation

ENGLISH

WARNING

To reset the speaker to the original settings :

- turn on the speaker (the Power LED will blink slowly)

- while the Power Led is blinking, press and release several times the Bypass /

Local Setup button

- the Power LED wil now start blinking faster, this means the system accepted

the reset command

The XLR connectors use the following AES standard:

PIN 1 = GROUND (SHIELD)

PIN 2 = HOT (+)

PIN 3 = COLD (-)

SPEAKER RESET

HOT GND

BAL. XLR

COLD

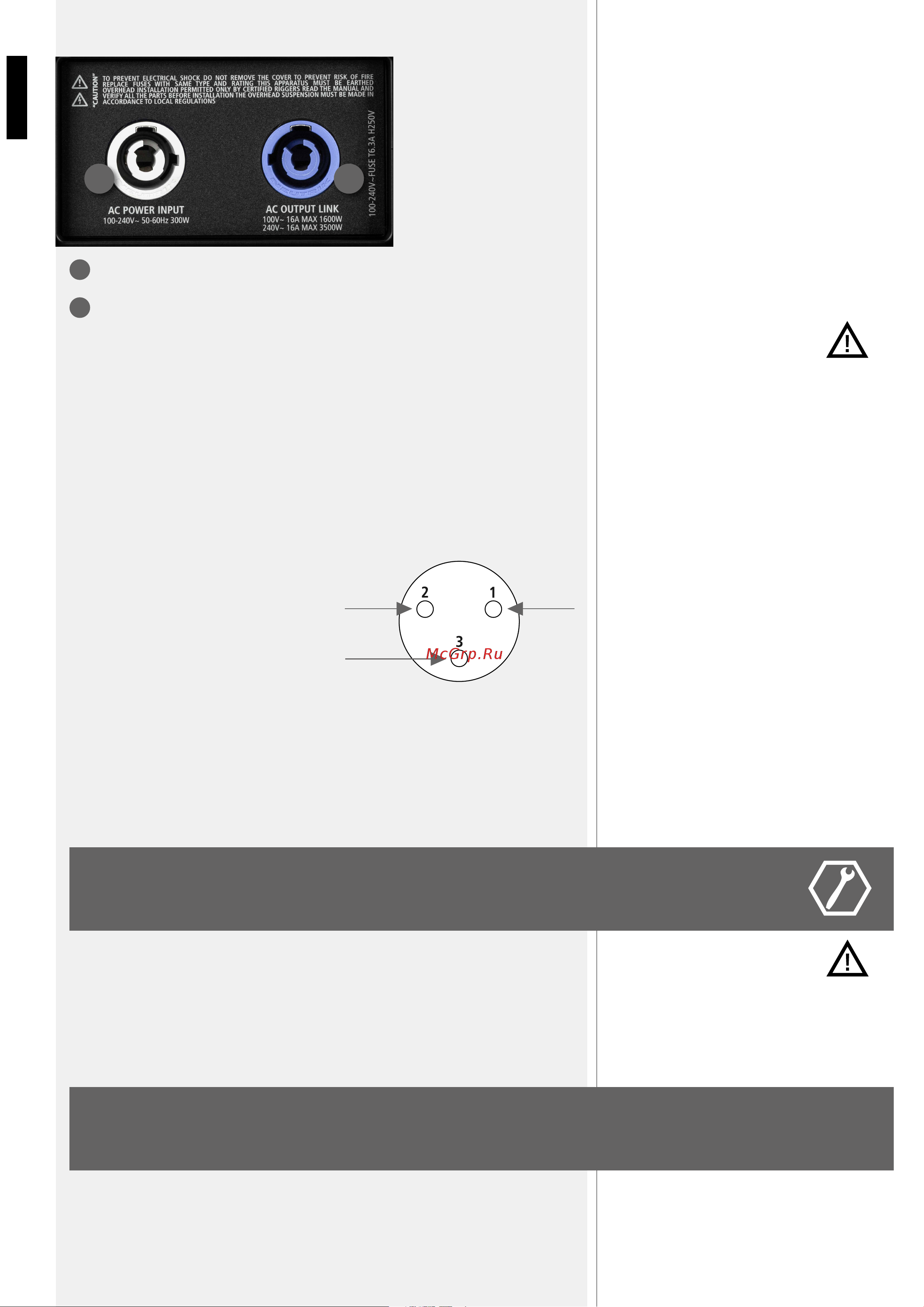

CONNECTIONS

AC POWER INPUT. Powercon locking 3-pole AC mains.

AC OUTPUT LINK. Powercon locking 3-pole AC mains output.

WARNING: the Powercon connector is used to disconnect the system from the power supply

network. It shall be easily accessible after the instillation and during the use of the system.

At this point you can connect the power supply cable and the signal cable, but before turning

on the speaker make sure that the volume control is at the minimum level (even on the mixer

output). It is important that the mixer is already ON before turning on the speaker. This will avoid

damage to the speakers and noisy “bumps” due to turning on parts on the audio chain. It is a

good practice to always turn on speakers at last and turn them off immediately after the show.

Now you can turn ON the speaker and adjust the volume control to a proper level.

BEFORE TURNING ON

THE SPEAKER

WARNING: daisy chaining speakers always make sure that the maximum current

requirement does not exceed the maximum admitted POWERCON current. In case of doubt

call the closest RCF SERVICE CENTRE.

WARNING: The powercon connector is used to disconnect the system from the power

supply network. It shall be easily accessible after the installation and during the use of the

system.

INSTALLATION

WARNING

The fuse settings/replacement shall be as follow:

FUSE VALUE T 6.30 A H 250 V

SERVICE NOTE

VOLTAGE SETUP

(RESERVED TO THE RCF SERVICE CENTRE)

11 12
