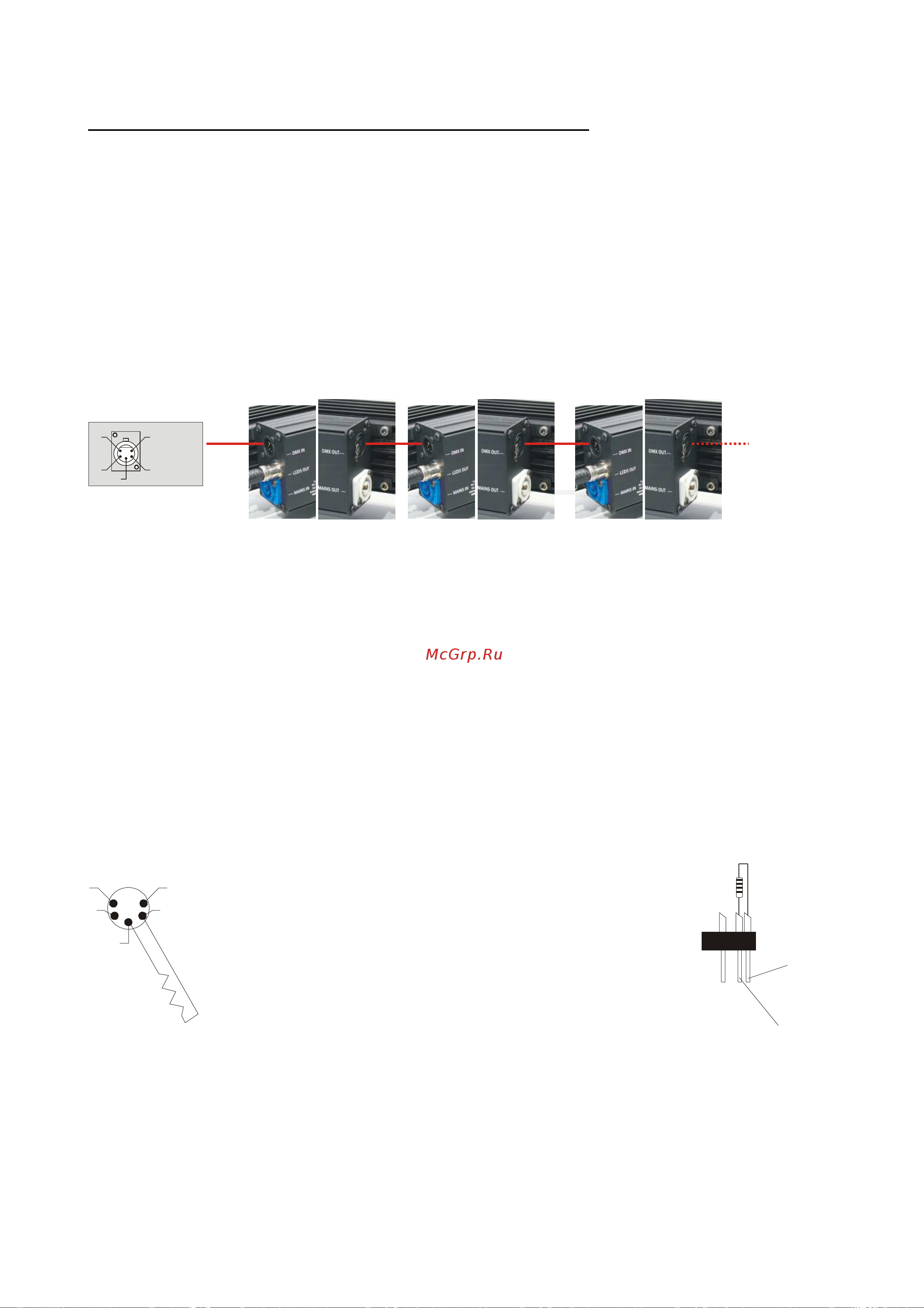

9- DMX SIGNAL CONNECTION (FOS 100 POWER SOLO):

The unit operates using a digital DMX 512 signal.

Connection between the controller and the unit or between units must be carried out

using a two pair screened ø 0.5 mm.

Ensure that the conductors do not touch each other.

Do not connect the cable ground to the DMX connector chassis.

The plug housing must be isolated. Connect the mixer signal to the DMX IN projector

plug and connect it to the next projector by connecting the DMX OUT plug on the first

unit to the DMX IN plug of the second one.

In this way, all the projectors are cascade connected.

If the display showing the DMX address flashes, then one of the following errors has

occurred:

- DMX signal not present

- DMX reception problem

For Installations where long distance DMX cable connections are needed, we suggest to

use a DMX terminator.

The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor Between

pin 2 and 3.

The DMX terminator must be plugged into the last unit (DMX out panel connector) of the

DMX line.

PLACE A 120 OHM RESISTOR BETWEEN PIN 2

AND 3 OF A MALE XRL CONNECTOR AND PLUG IT

INTO THE DMX OUT PANEL CONNECTOR OF THE

LAST UNIT CONNECTED TO THE DMX LINE

OUT

120 ohm

PIN 3

PIN 2

4 2

1=GND

2=DATA-

3=DATA+

CONTROLLER

S TA N D A R D

D M X 5 1 2

UNIT 1

UNIT 2

UNIT 3
