Boost mode activated
Boost mode deactivated

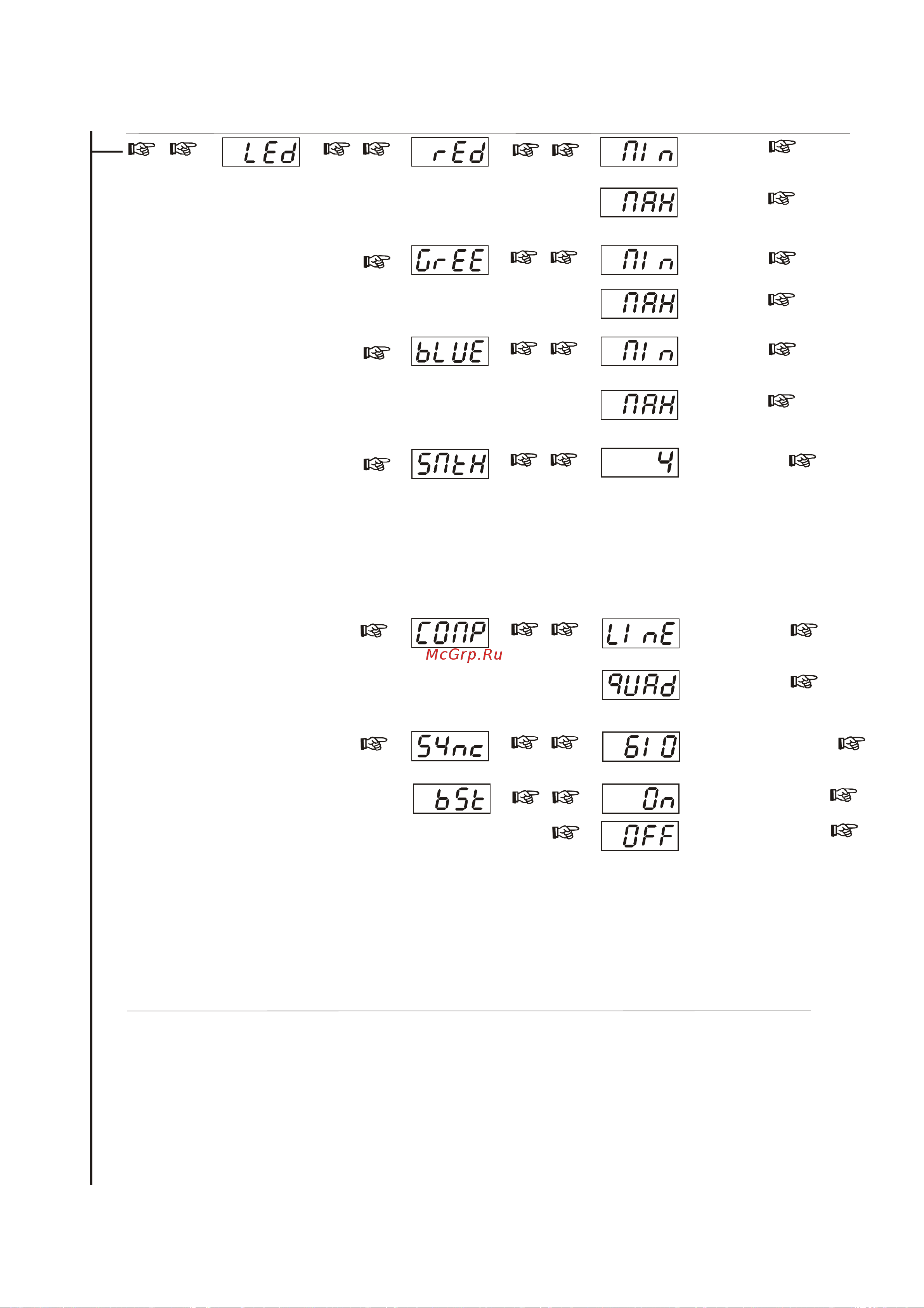

LED
RGBA Min/Max,
Smooth and
Compression levels
values settings
RGBA MINIMUM VALUES
This menu allow to select
the minimum levels for
Red, Green, Blue and
Amber
RGBA MAXIMUM
VALUES
This menu allow to select
the maximum levels for
These settings have priority
on Master Dimmer
SMOOTH VALUE
This menu allow to select the
value
of the delay ( in milliseconds) for
RGB and Dimmer channels
reaction to DMX or Program
variation.
Off=25 ms delay (Fast response)
20=250 ms delay (Slow response)
COMPRESSION
This menu allow to select
between
Linear courrent output or
Quadratic courrent output
for LEDs
Default = Linear
BOOST DRIVING
This menu allow to increase
the LED’s current from
350mA to 500 mA
Range = Off-20
Default = 4
20 = 250 ms
Smooth response to DMX
variation
Off = 25 ms
Instant response to DMX
variation
Linear=Linear
current output
Quadratic=Linear
light output
With BOOST active, the
LED’s current is set to
500mA
(30%more gain).
Default = Activated
Range =
610 Hz -10 KHz
Default = 610
Default=0
Default=100
Default=0
Default=100
Default=0
Default=100
Up
-
Down
MENU
ENTER
Up
-
Down
Up
-
Down
Up
-
Down
ENTER
Up
-
Down
ENTER
ENTER
ENTER
ENTER
ENTER
Up
-
Down
Up
-
D
own
ENTER
ENTER
ENTER
Up
-
Down
Up
-
Down
ENTER
ENTER
Up
-
Down
Up
-
Down
ENTER
ENTER
ENTER
Up
-
Down
Up
-
Down
ENTER
ENTER
Up
-
Down
ENTER
ENTER
Up
-
Down
ENTER
