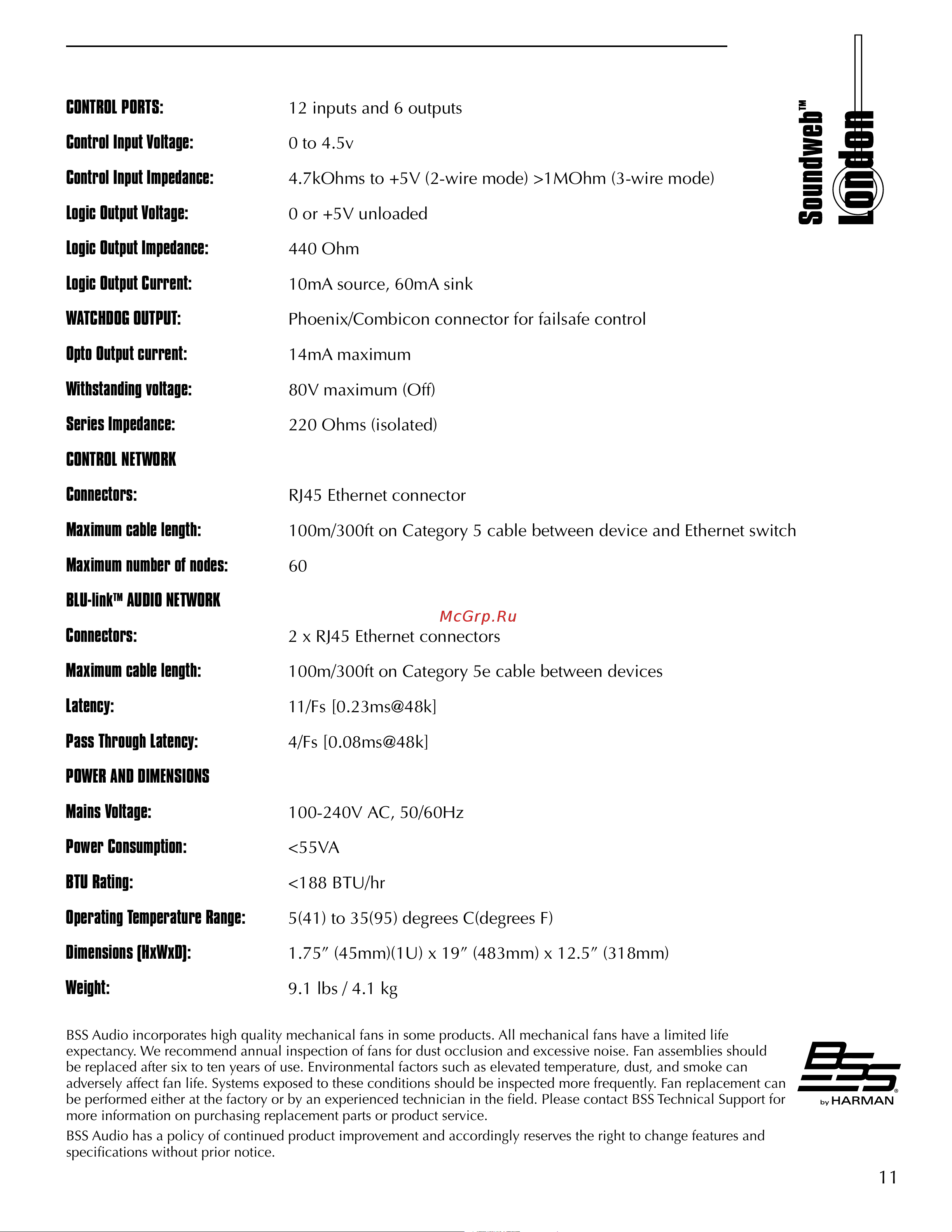

11
CONTROL PORTS: 12 inputs and 6 outputs
Control Input Voltage: 0 to 4.5v
Control Input Impedance: 4.7kOhms to +5V (2-wire mode) >1MOhm (3-wire mode)
Logic Output Voltage: 0 or +5V unloaded
Logic Output Impedance: 440 Ohm
Logic Output Current: 10mA source, 60mA sink
WATCHDOG OUTPUT: Phoenix/Combicon connector for failsafe control
Opto Output current: 14mA maximum
Withstanding voltage: 80V maximum (Off)
Series Impedance: 220 Ohms (isolated)
CONTROL NETWORK
Connectors: RJ45 Ethernet connector
Maximum cable length: 100m/300ft on Category 5 cable between device and Ethernet switch
Maximum number of nodes: 60
BLU-link
TM
AUDIO NETWORK
Connectors: 2 x RJ45 Ethernet connectors
Maximum cable length: 100m/300ft on Category 5e cable between devices
Latency: 11/Fs [0.23ms@48k]
Pass Through Latency: 4/Fs [0.08ms@48k]
POWER AND DIMENSIONS
Mains Voltage: 100-240V AC, 50/60Hz
Power Consumption: <55VA
BTU Rating: <188 BTU/hr
Operating Temperature Range: 5(41) to 35(95) degrees C(degrees F)
Dimensions (HxWxD): 1.75” (45mm)(1U) x 19” (483mm) x 12.5” (318mm)
Weight: 9.1 lbs / 4.1 kg
BSS Audio incorporates high quality mechanical fans in some products. All mechanical fans have a limited life
expectancy. We recommend annual inspection of fans for dust occlusion and excessive noise. Fan assemblies should
be replaced after six to ten years of use. Environmental factors such as elevated temperature, dust, and smoke can
adversely affect fan life. Systems exposed to these conditions should be inspected more frequently. Fan replacement can
be performed either at the factory or by an experienced technician in the field. Please contact BSS Technical Support for
more information on purchasing replacement parts or product service.
BSS Audio has a policy of continued product improvement and accordingly reserves the right to change features and
specifications without prior notice.
