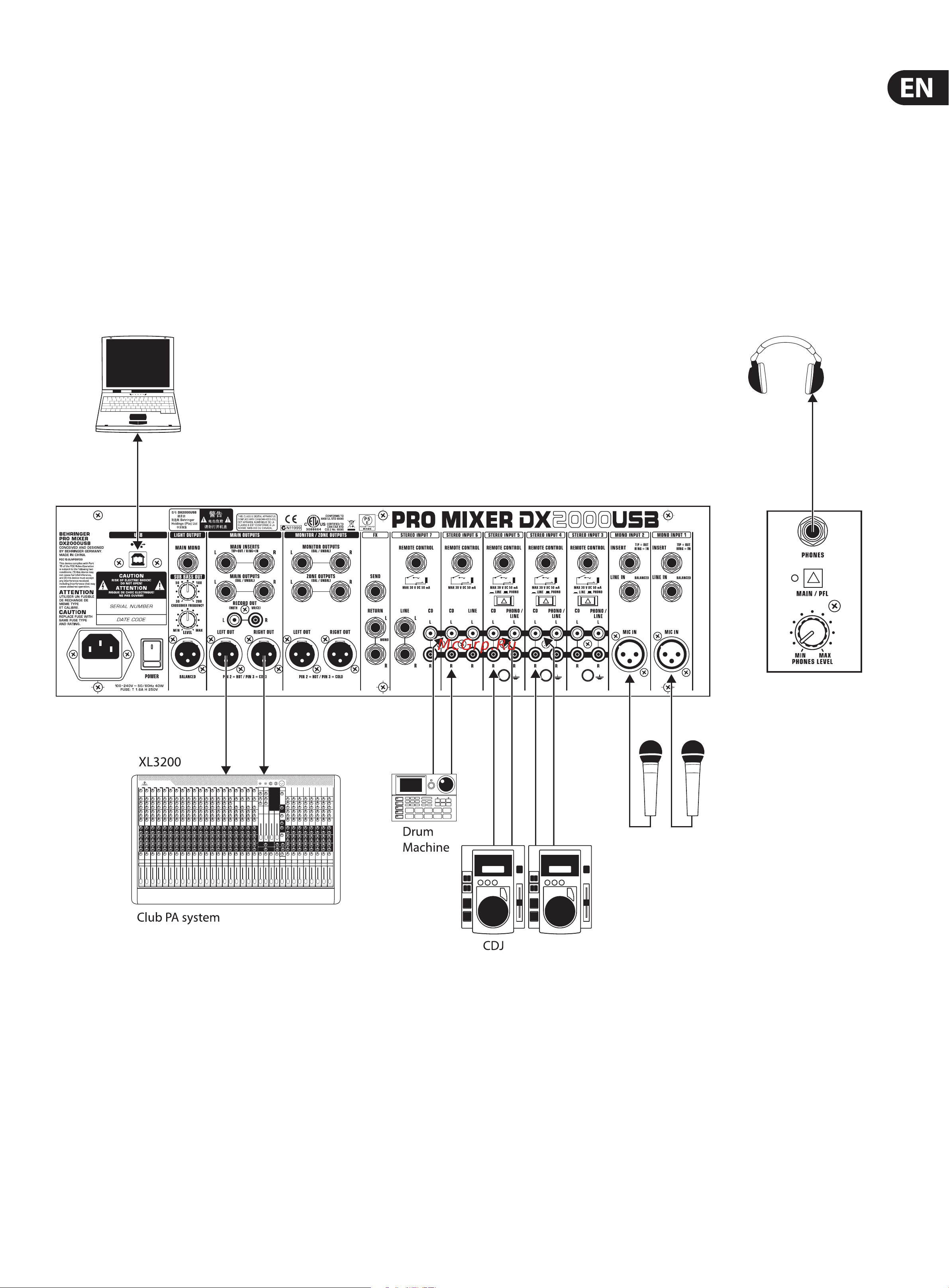

11 PRO MIXER DX2000USB User Manual
behringer.com
Monitor outputs. Unbalanced ¼" jack, wired tip = signal and [68]
sleeve = ground/screen.
Zone outputs. Unbalanced ¼" jack, wired tip = signal and [69]
sleeve = ground/screen.
Monitor outputs. Balanced XLR, wired pin 1 = ground/screen, [70]
pin 2 = hot (+ve) and pin 3 = cold (-ve).
IEC socket. For connecting the mixer a standard IEC cable. Always connect [71]
the mixer to a wall outlet before engaging the POWER switch.
USB input. Accepts a standard Type B USB cable for stereo input/output [72]
connection with a computer.
And on the front panel:
Line in. RCA sockets.[21]
Line out (without voice). RCA sockets.[22]
Phones. ¼" jack socket, wired tip = left signal, ring = right signal and [43]
sleeve = ground/screen.
Please ensure that only qualified persons install and operate the ◊
PRO MIXER DX2000USB. During installation and operation the user
must have sufficient electrical contact to earth. Electrostatic charges
might affect the operation of the PRO MIXER DX2000USB!
