14 PRO MIXER DX2000USB User Manual

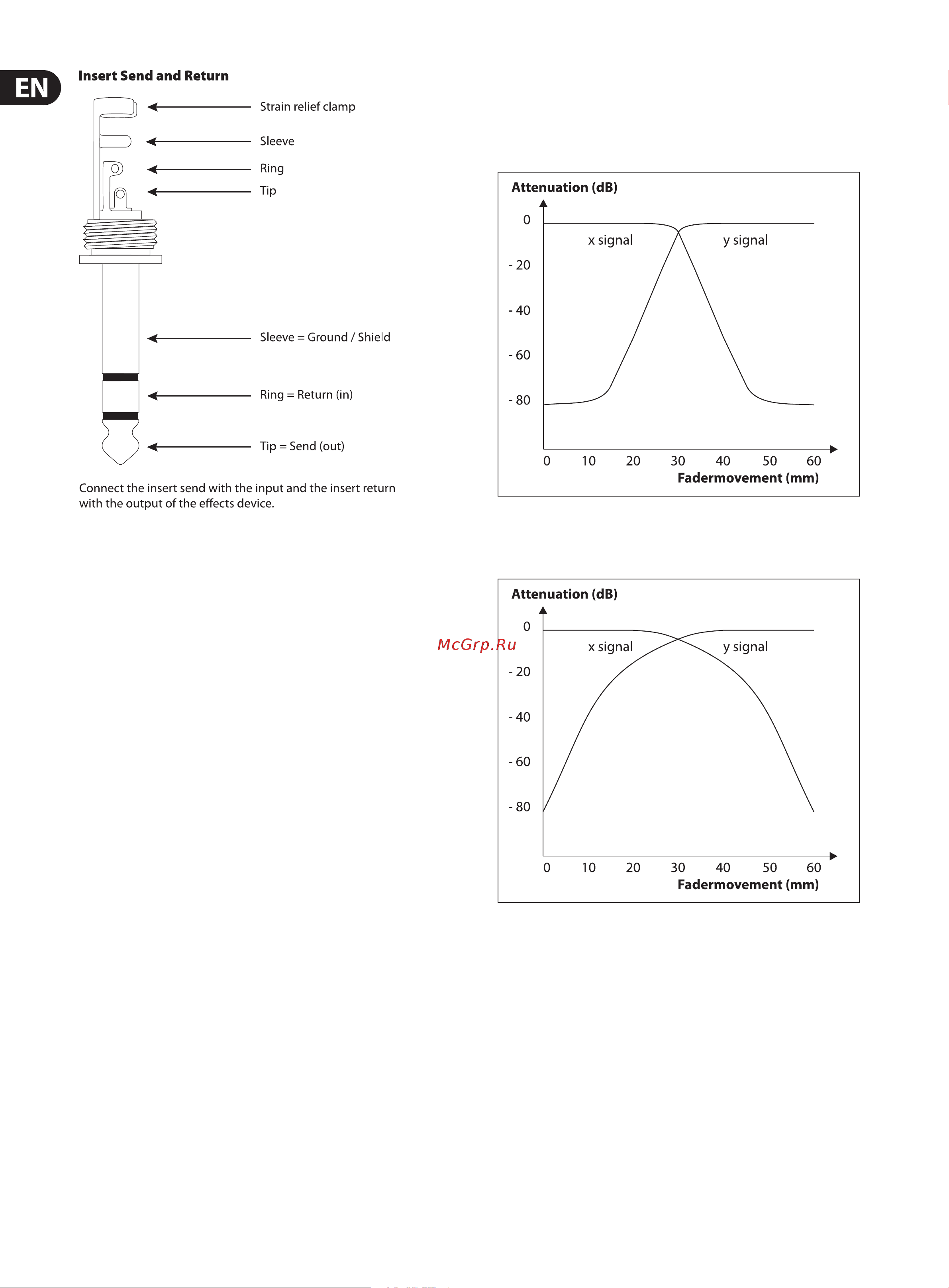

Fig. 10.3: Insert send/return plug

Crossfader Adjustment10.

On the main motherboard you can ﬁnd two potentiometers, which you

can adjust with a little screwdriver. These potentiometers are identiﬁed as

OVERLAP and SLOPE. You can unscrew the bottom of your mixer to reach the

main motherboard.

Please be aware that the BEHRINGER warranty becomes discretionary ◊

when you start disassembling your DX2000USB! Don’t even think of it,

if you make much of your warranty privileges. Sorry, but we have to

mention this.

Overlap10.1

With the OVERLAP potentiometer (VR43) you can adjust the increase or

decrease in dB, which is conducted when the crossfader is located in the middle

position. Ex works this value is adjusted at -3 dB and should not be modiﬁed.

This guarantees a constant volume across the entire fader path.

Slope10.2

With the SLOPE potentiometer (VR44) you can adjust the fade over process of the

both channels. Dependent on the setting of the SLOPE potentiometer there are

the following volume curves:

Fig. 11.1: Volume curve I (SLOPE potentiometer completely left)

Fig. 11.2: Volume curve II (SLOPE potentiometer completely right)
