DBX DriveRack 220i [32/57] Section 3

220i

DriveRack

User Manual

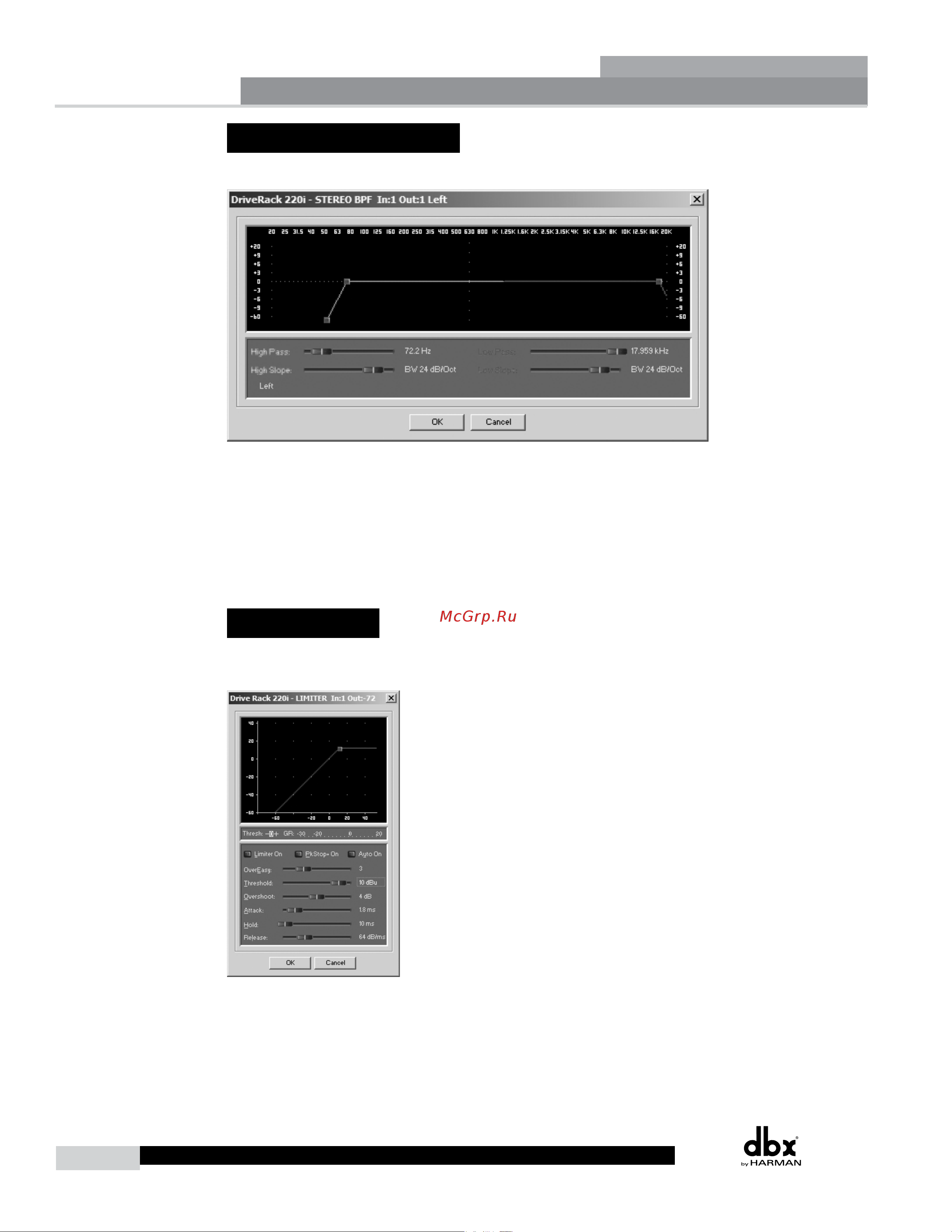

3.12 - Bandpass Filter

This Bandpass FIlter module allows the user to adjust the output bandwidth.

Highpass Out to 20kHz

Adjusts the lowest frequency that the output will achieve.

Lowpass Out to 20Hz

Adjusts the highest frequency that the output will achieve.

3.13 - Limiter

The 220i offers a dedicated Limiter module. The Limiters are located on each output channel and have

been strategically placed for speaker and amplifier protection.

Limiter On/Off

Turns the Limiter module on and off.

Detailed Parameters
