The line level signals present on the RCA and XLR connectors, are internally mixed

together. A balanced signal on the XLR’s will however not be available on the

unbalanced RCA’s and vice versa.

Tips for trouble-free use: Always respect the basic power on sequence rules valid

for most audio applications. Amplifiers and/or powered speakers such as this

product will be powered on only after all the other devices in the audio chain have

been powered up! Always power off amplifiers and/or powered speakers first and

do not leave them powered on unnecessary!

1 = GND (audio ground)

2 = hot (+ line level signal, in phase)

3 = cold (- line level signal, opposite phase)

For unbalanced signals on XLR: pin 1 must be connected to pin 3 and becomes the

ground for the unbalanced signal. Pin 2 is the positive signal pin.

Alternatively, you can use the dedicated unbalanced RCA input.

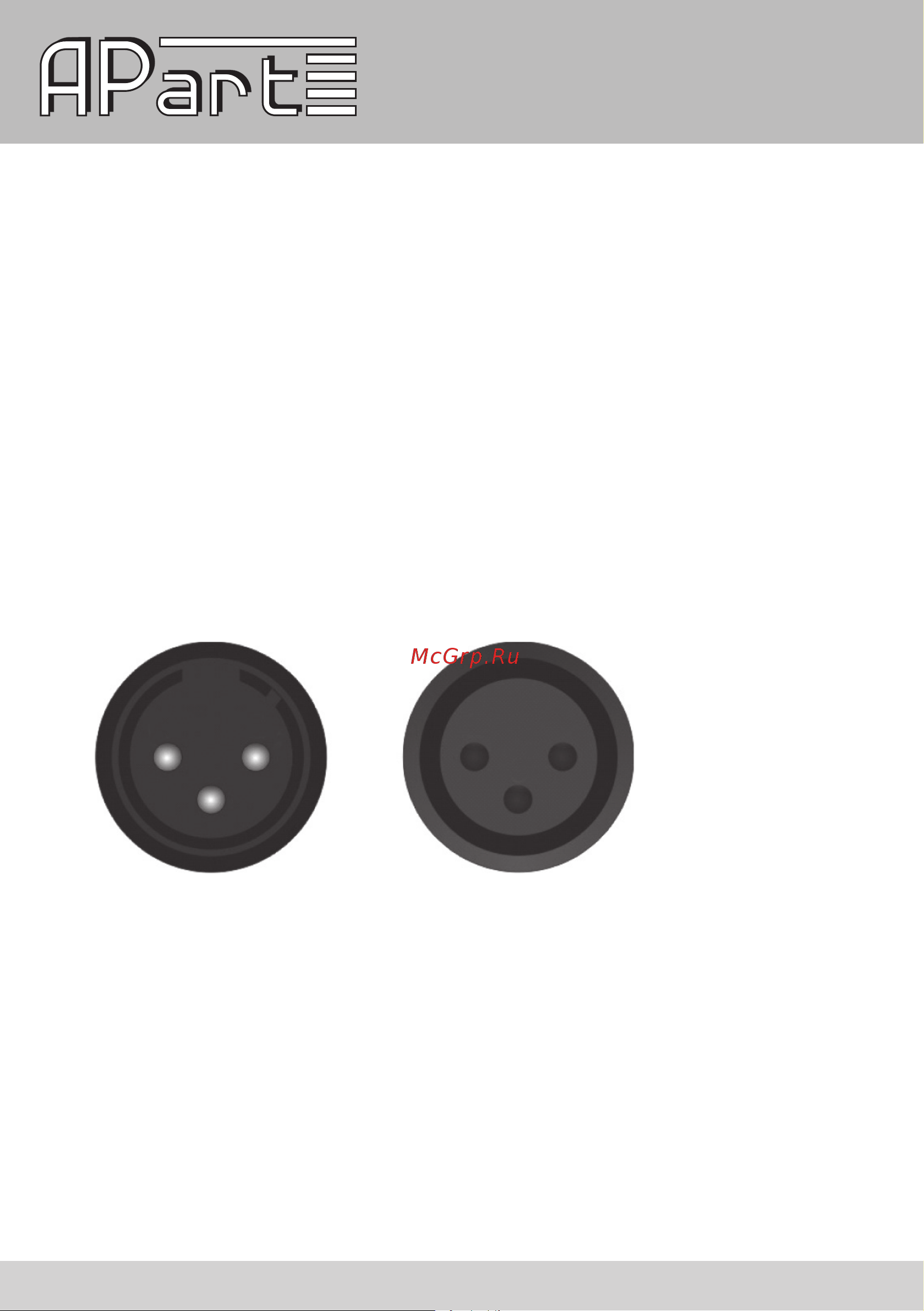

Balanced XLR connectors:

Male (link) Female (line in)

Notes

1 12 2
